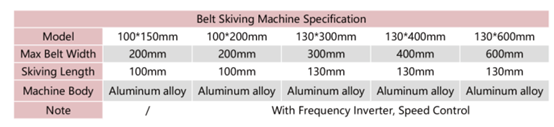

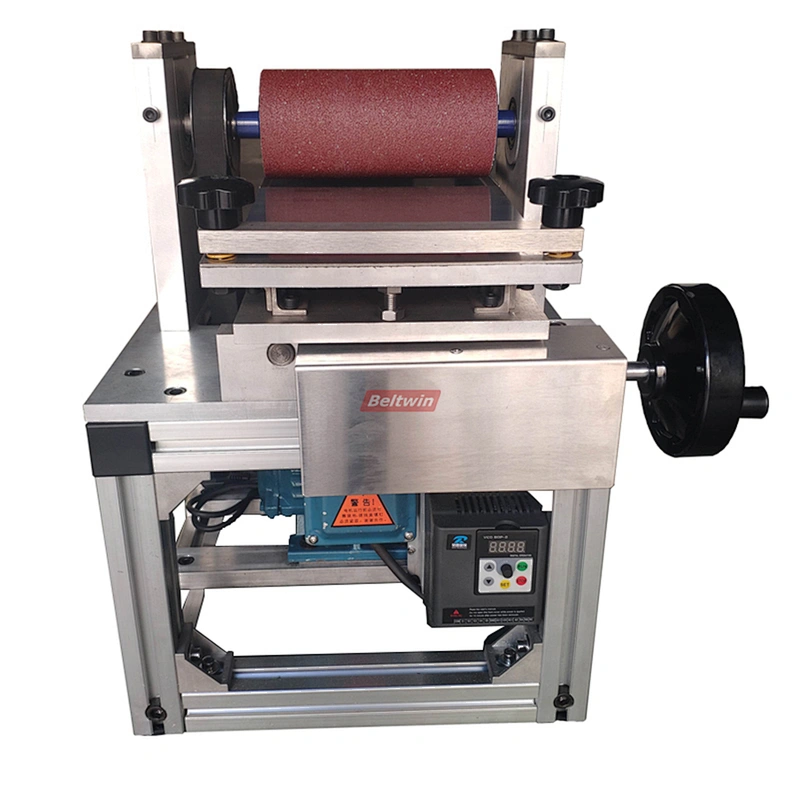

Machine type and suitable belt width:

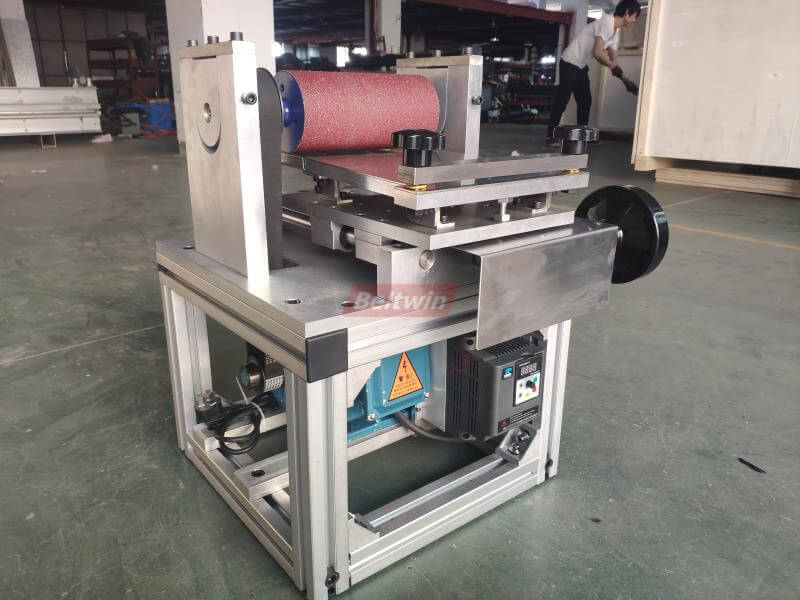

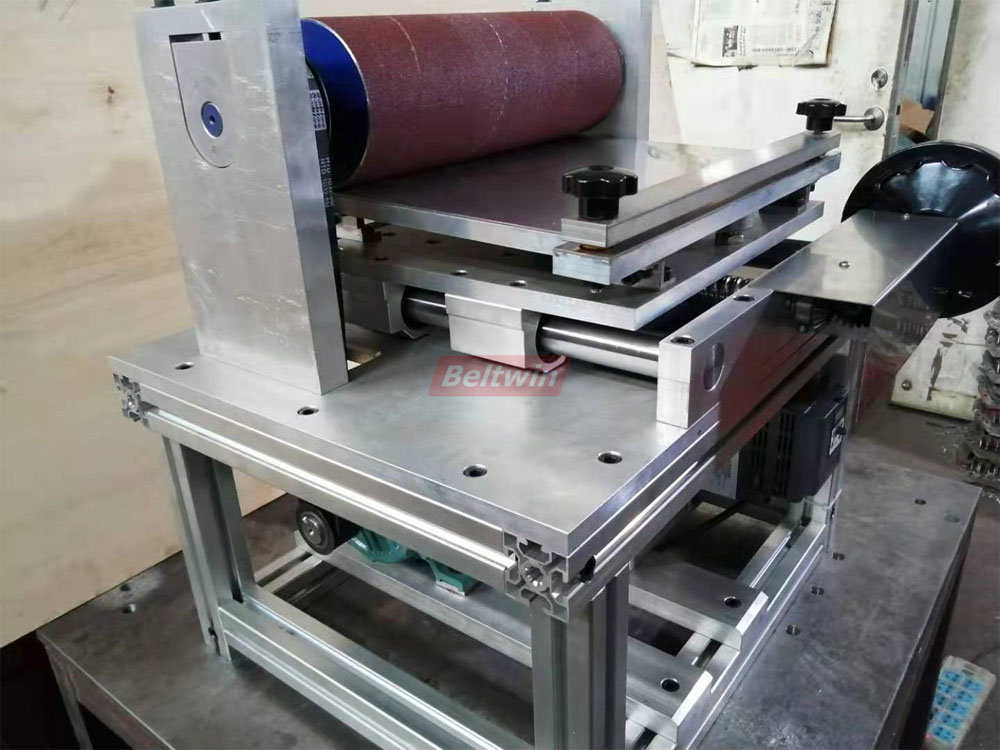

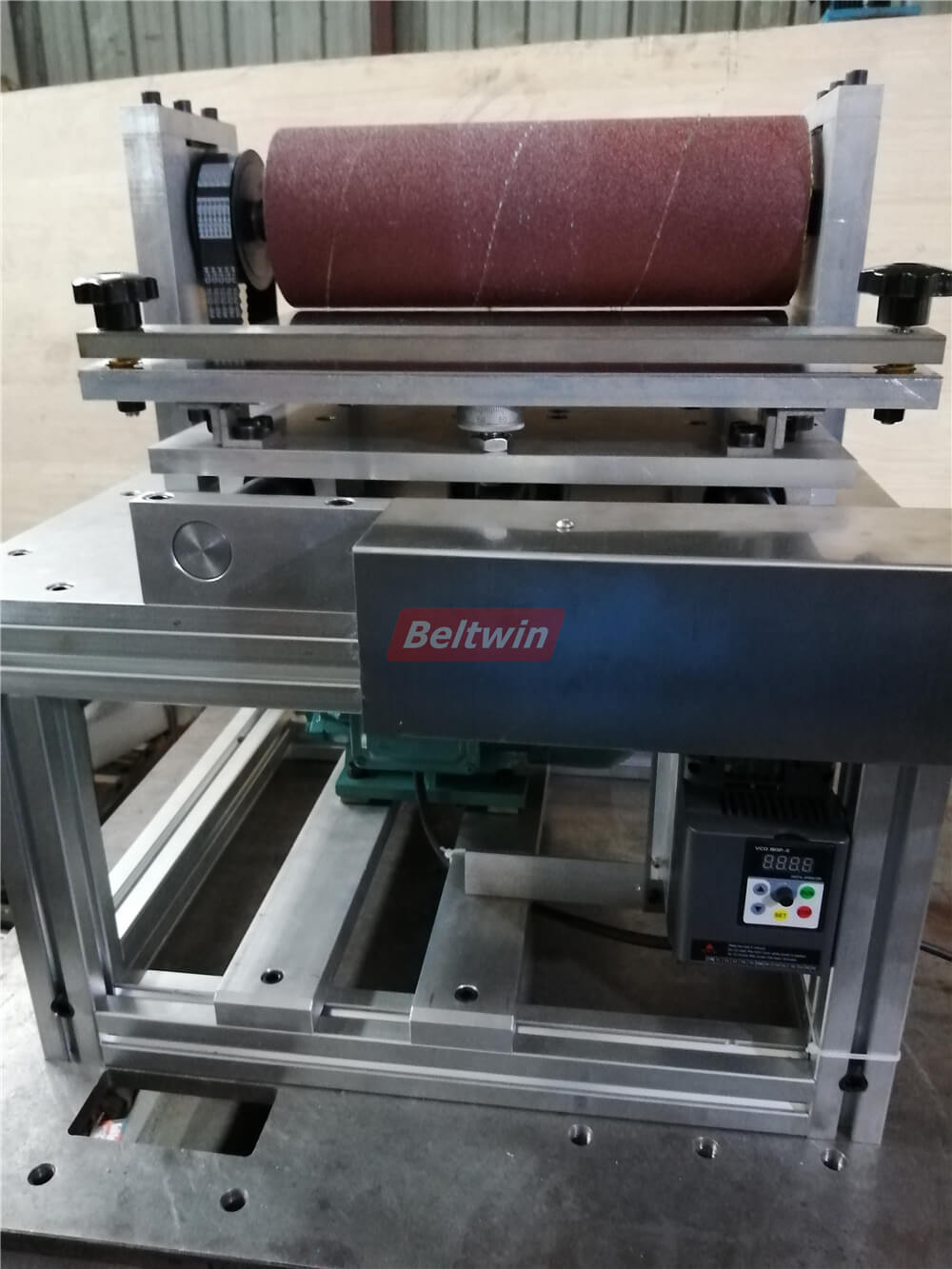

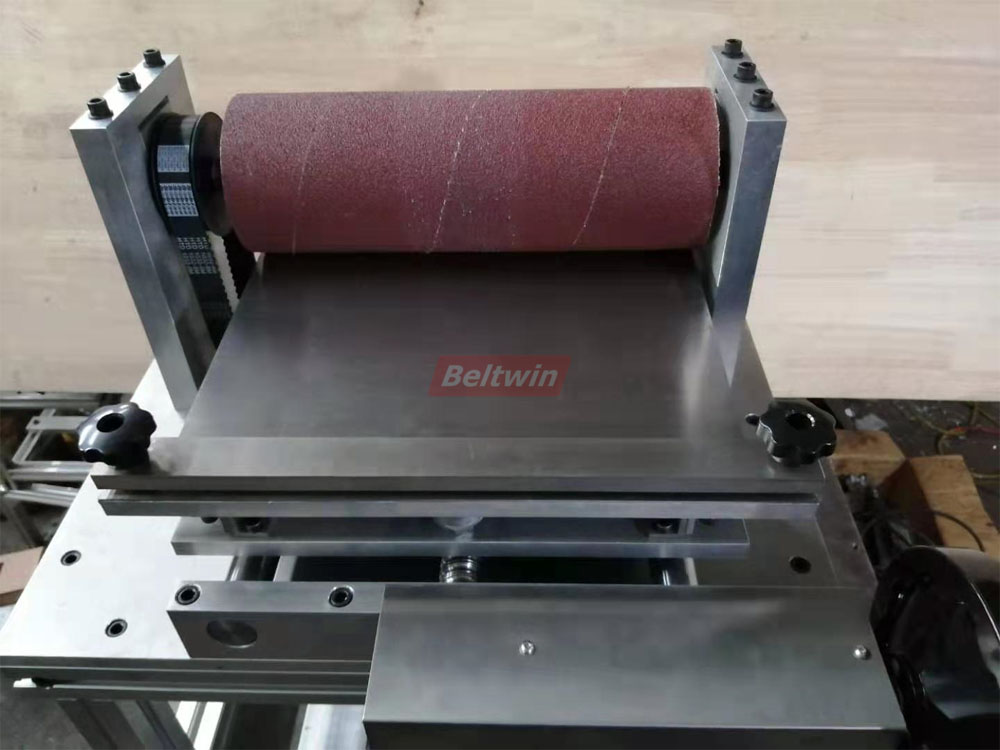

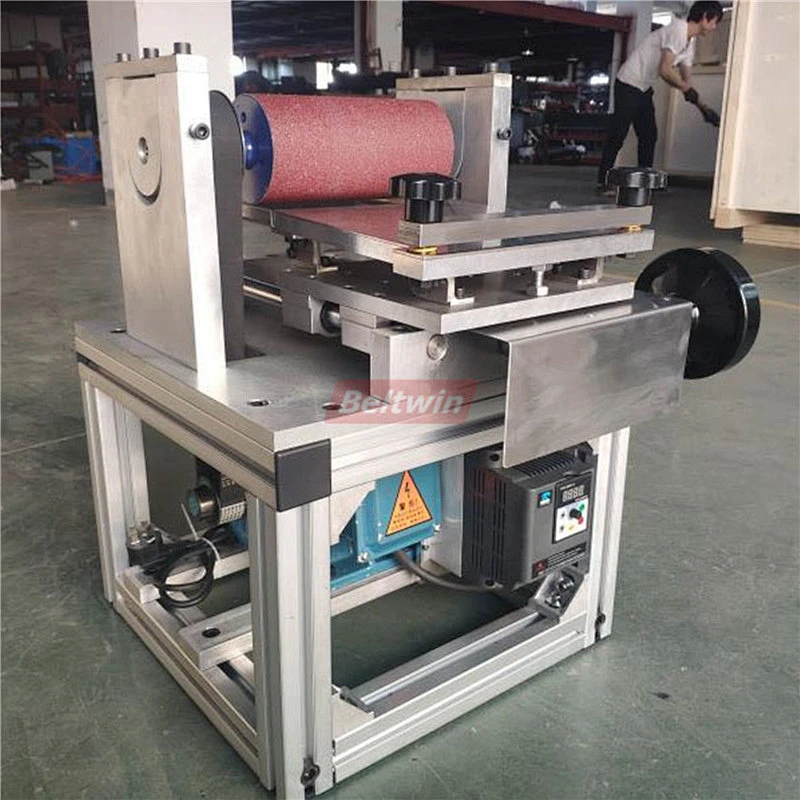

Skiving machine enables the ends of transmission belts to be narrowed for high quality splicing. Then connect two ends of belt by splice press.

Our machine can meet your demands for different belt in different thickness.

1. Belt Width: 150x100mm , 200x100mm , 300x130mm , 400x130mm , 600x130mm.
2. Operation: Manual adjust
3. Table inclination can be adjusted in order to control the chamfer length, depending on the material thickness.
4. Meet can meet your demands for different belt in different thickness.
5. Fast and simple replacement of the abrasive band
6. Belts can be skived one at a time or lined up to skive several at once.
7. For belt thickness: 1-5mm
8. Rotational Speed: 650r/min
9. With frequency inverter of the speed control
10. Working voltage: 220V,Single phase.
11. Can adjust the angle of working table.

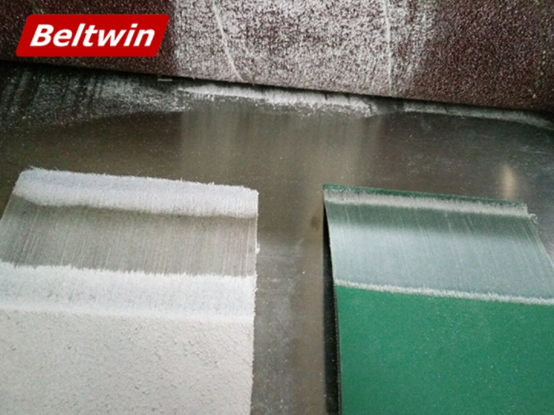

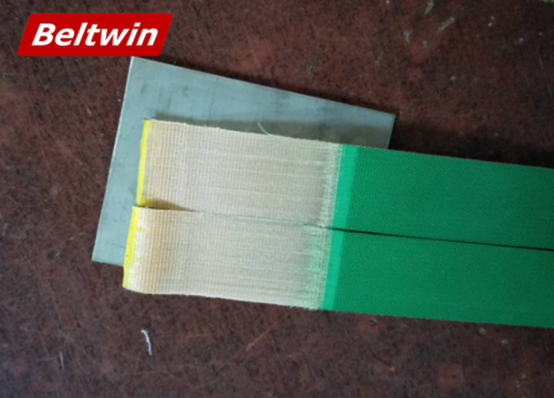

The belt after skiving:
