PVC PU Belt Cutting Slitter without Winder

PVC PU Conveyor Belt Slitter CA2000-3000, Cutting Machine

Product Information:

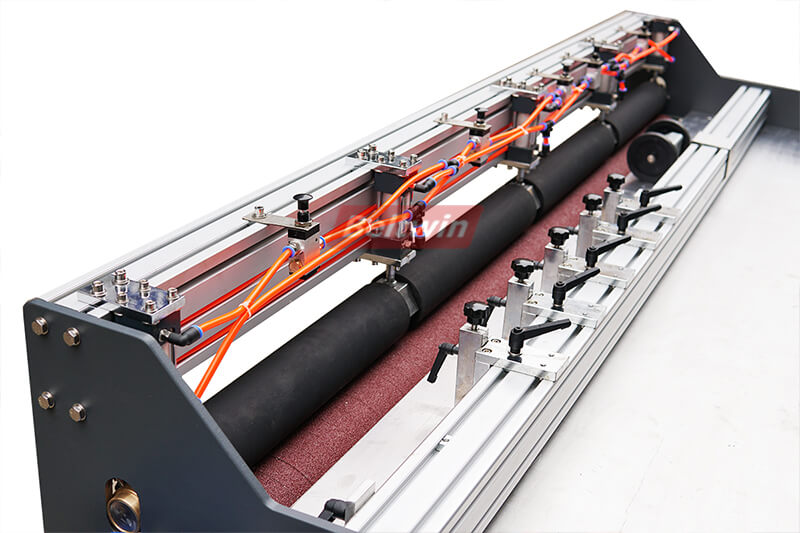

The Beltwin Slitter Machine is designed for easy longitudinal cutting of PVC, PU and other material conveyor belts up to 4 meters wide.

Generally, our customers will choose to use in a fixed location in the factory, and if necessary, we can provide them with a series of conveyor belt splice solutions.

We can ensuring a quick setup and increased productivity.

Feature:

1. Without winder and unwinder units.
2. Cutting for PVC PU and PE Conveyor Belt
3. Belt width 1500mm, 2000mm, 3200mm and 3500mm etc, any other special size can customized.
4. Max belt thickness 15mm.
5. According to different requirements, can adjust the cutting speed.
6. Easy to install, operate and easy move in your workshop.
7. The machine standard with 5 blades.

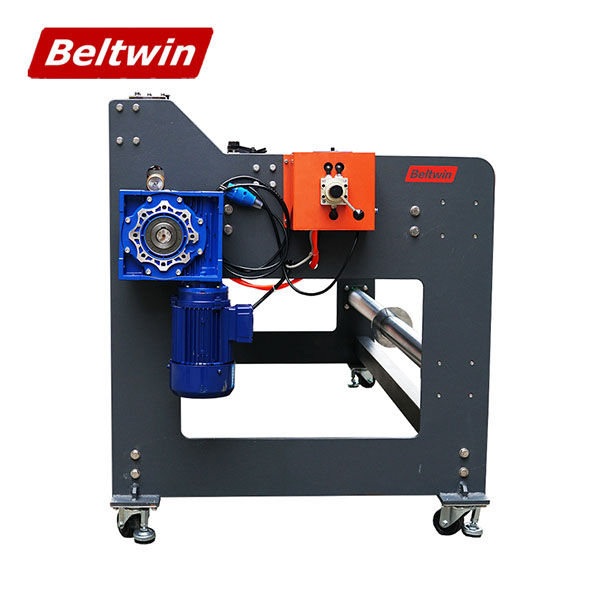

8. Electrical & Pneumatic control panel including the speed control, roller adjustment.
9. The complete assembly, when you get the machine, it can use immediately.

Data sheet:

Machine Display:

1. Aluminum alloy body, surface oxidation treatment.
2. Controller panel have three working positions: FWD forward - rotating/ REV reversal reverse and natural position.
3. Pneumatic roller tensioner to keep coils tight.

4. Manual adjustable-feed belt fence.

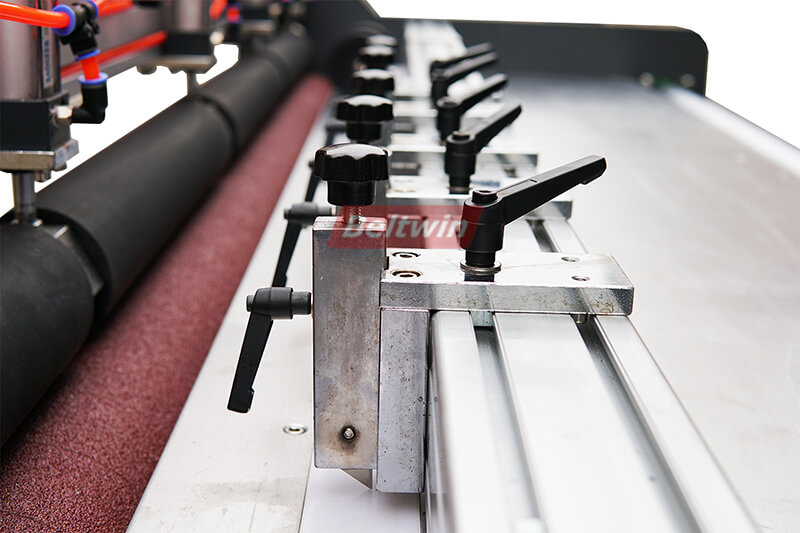

5. Fix blade with knife mounted on moveable toolbar. Our standard is 5 knives (if you need more, we can also provide). The knifes are manual adjust of their cutting position.

6. Custom power supply (Standard 750W).

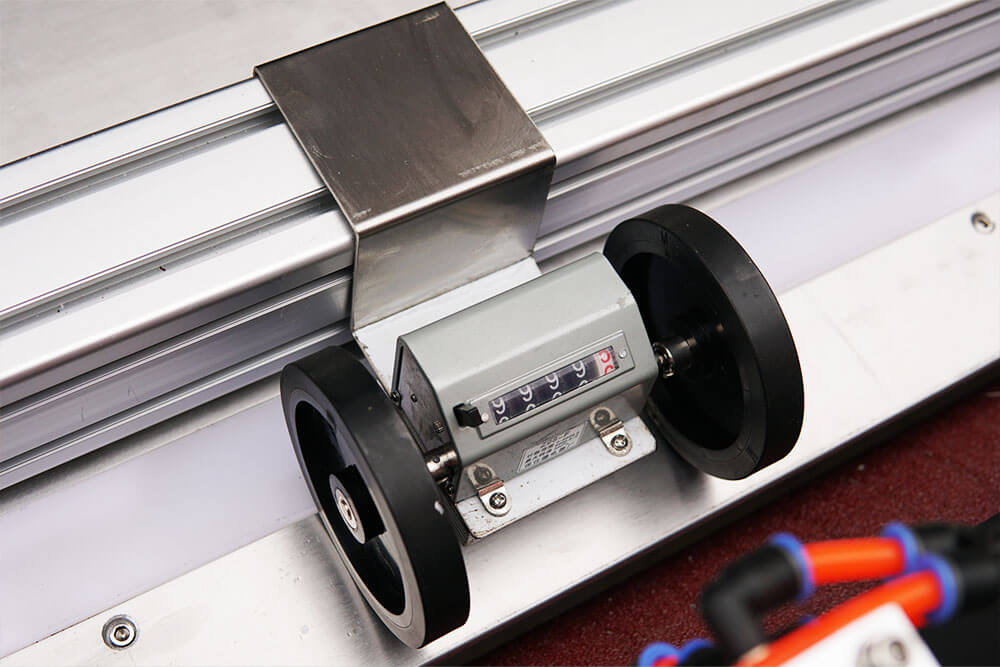

7. Length counter, enables the cut length to be checked when cutting belt.

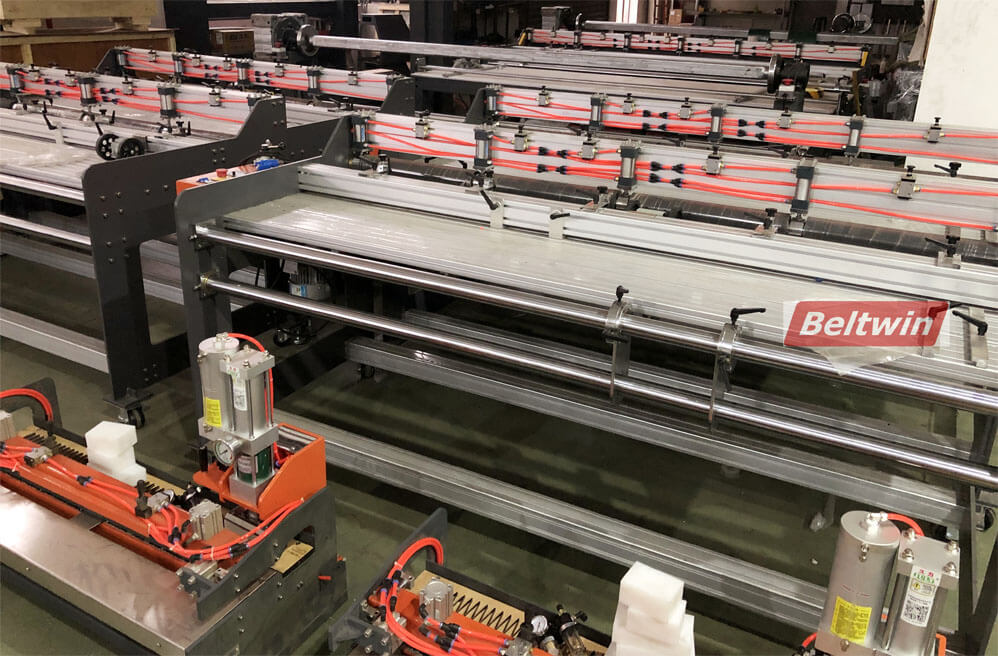

Bulk Production, make sure the lowest cost and higher quality level.
