PTFE Teflon Belt Welding Machine Splice Press TW(STW)130-200

Specifications:

Model	TW-100	TW-130	TW-150	TW-200
Heating Dimension(mm)	65x1000	65x1300	65x1500	100x2000
Voltage(V)	380V,3Phase	380V,3Phase	380V,3Phase	380V,3Phase
Power(KW)	7.2	9.4	10.8	14.4
Temperature Range(℃)	50～400	50～400	50～400	50～400
Delay Time(S)	0～99	0～99	0～99	0～99
Pressure(MPa)	0.3～0.5	0.3～0.5	0.3～0.5	0.3～0.5
Net Weight(Kg)	400	460	500	600
Packing Dimension(mm)	1800x1000x1800	1900x1000x1780	2000x1000x1780	2300x1000x1780

What’s PTFE TEFLON Conveyor Belt?

The PTFE TEFLON Conveyor Belts or Mesh conveyor Belt. It is high temperature resistance, can resist all most of chemical medicines and non-stick. So it is widely used in paper, food, environmental protection, printing and dyeing, clothing, chemical, Glass, medicine, electronics, insulation, grinding wheel slicing, machinery and other fields.

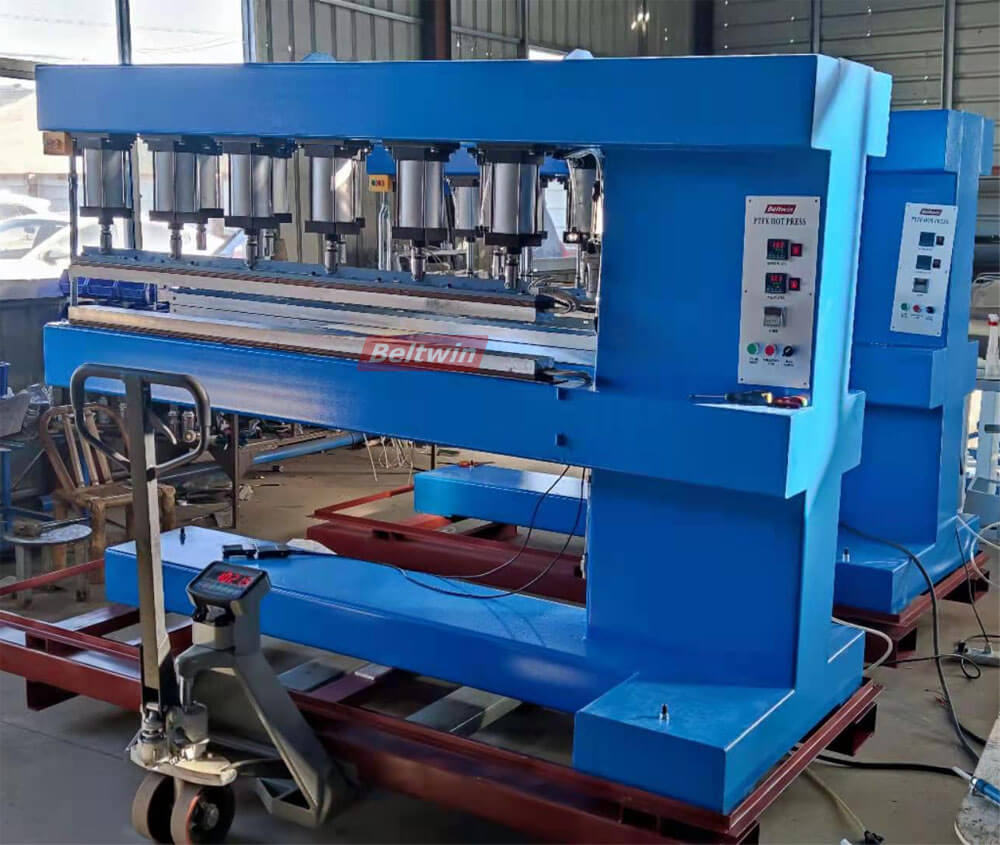

Standard Type machine photos:

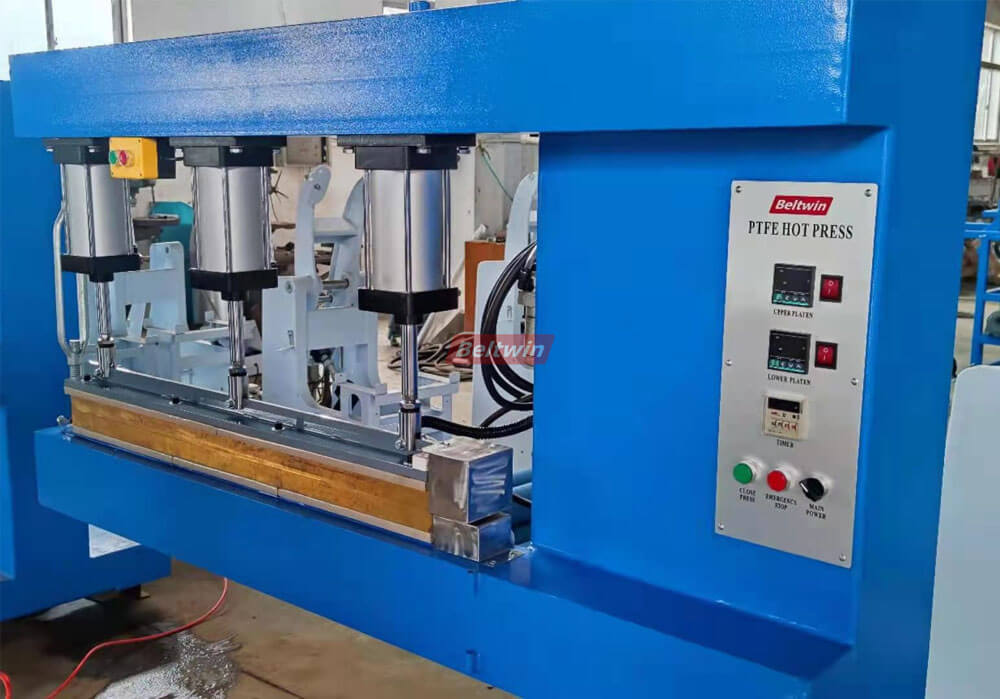

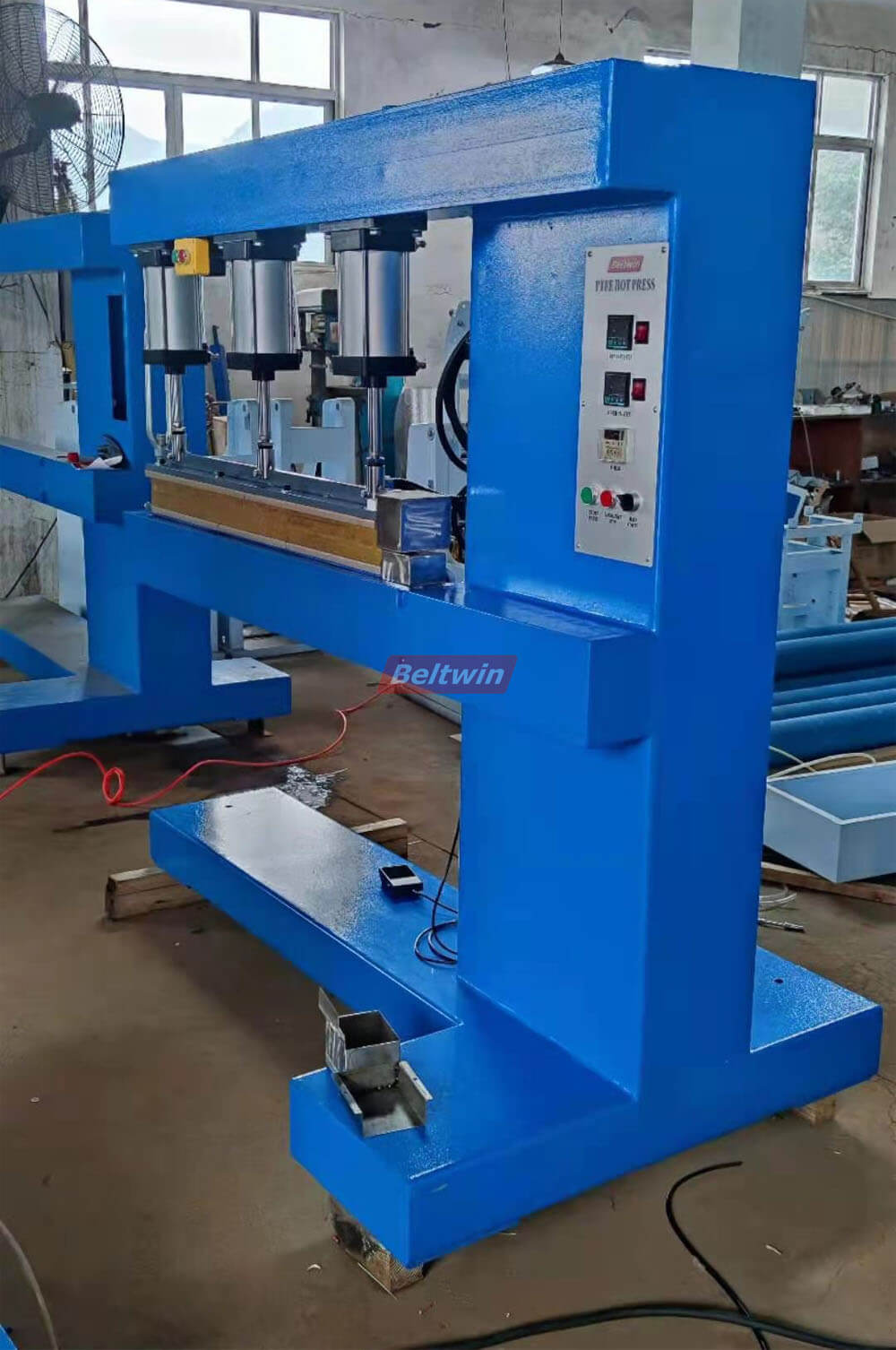

Two platens welding machine(Heating and cooling platen):

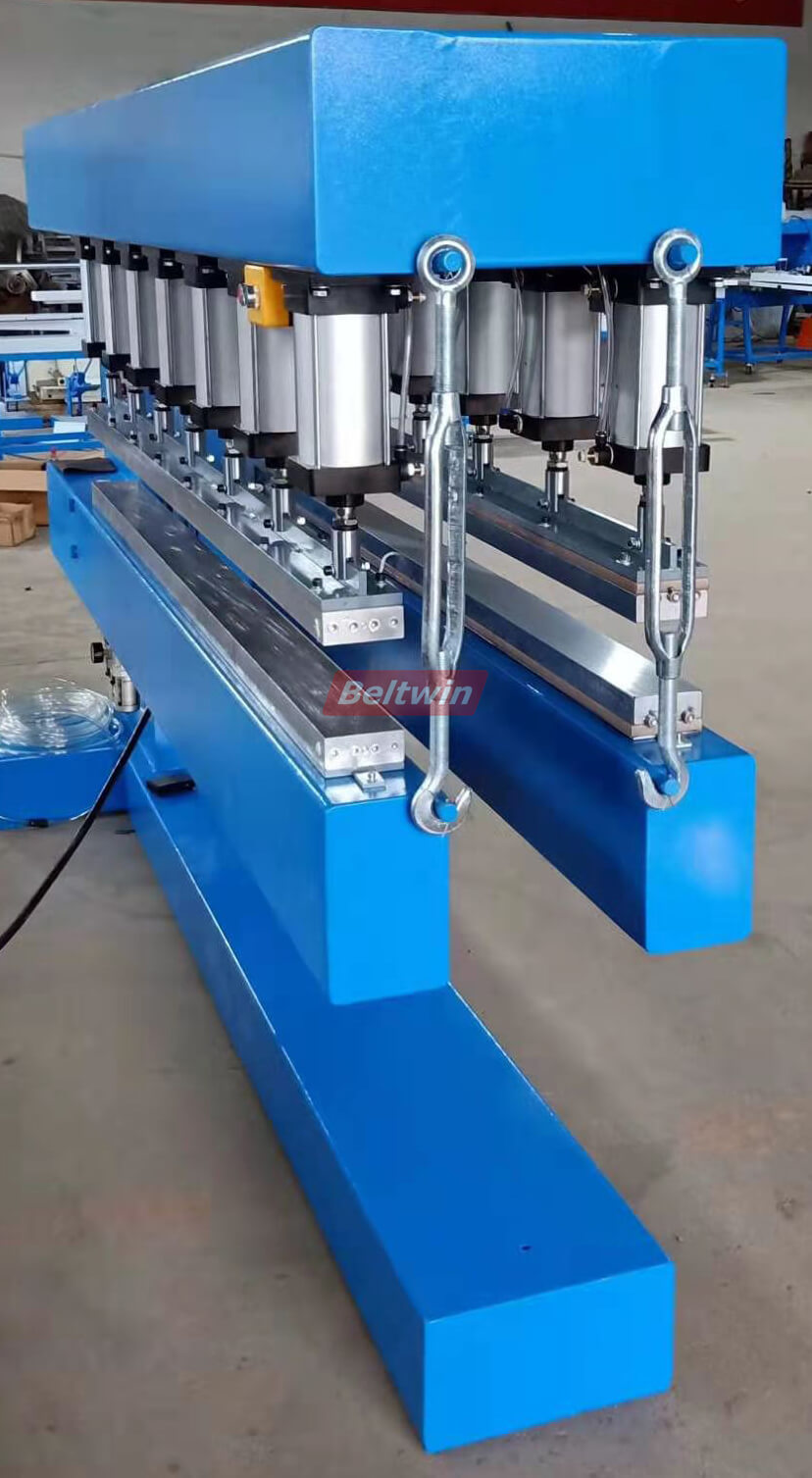

The welding machine for welding material on edge of open mesh belt (Heating platen x 1 ,Water cooling platen x 1 ):

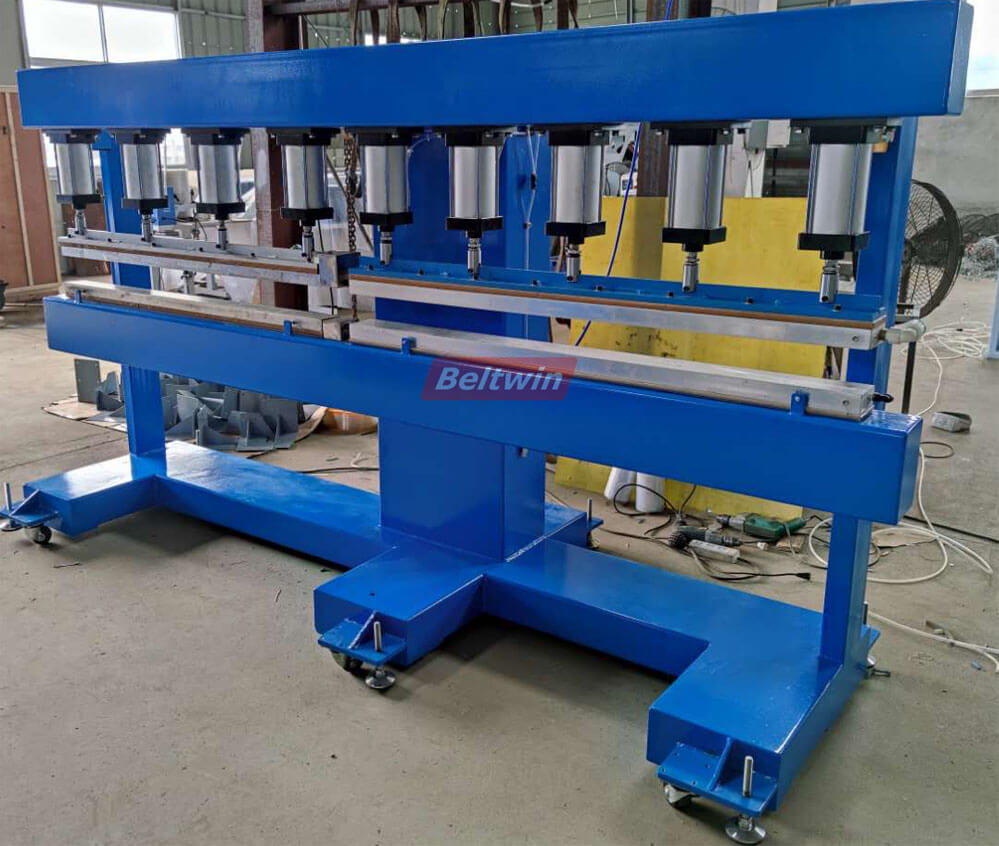

The PTFE belt welding machine include quick water cooling system for welding endless open mesh and teflon (Heating platen x 1 ,Water cooling platen x 1 ):

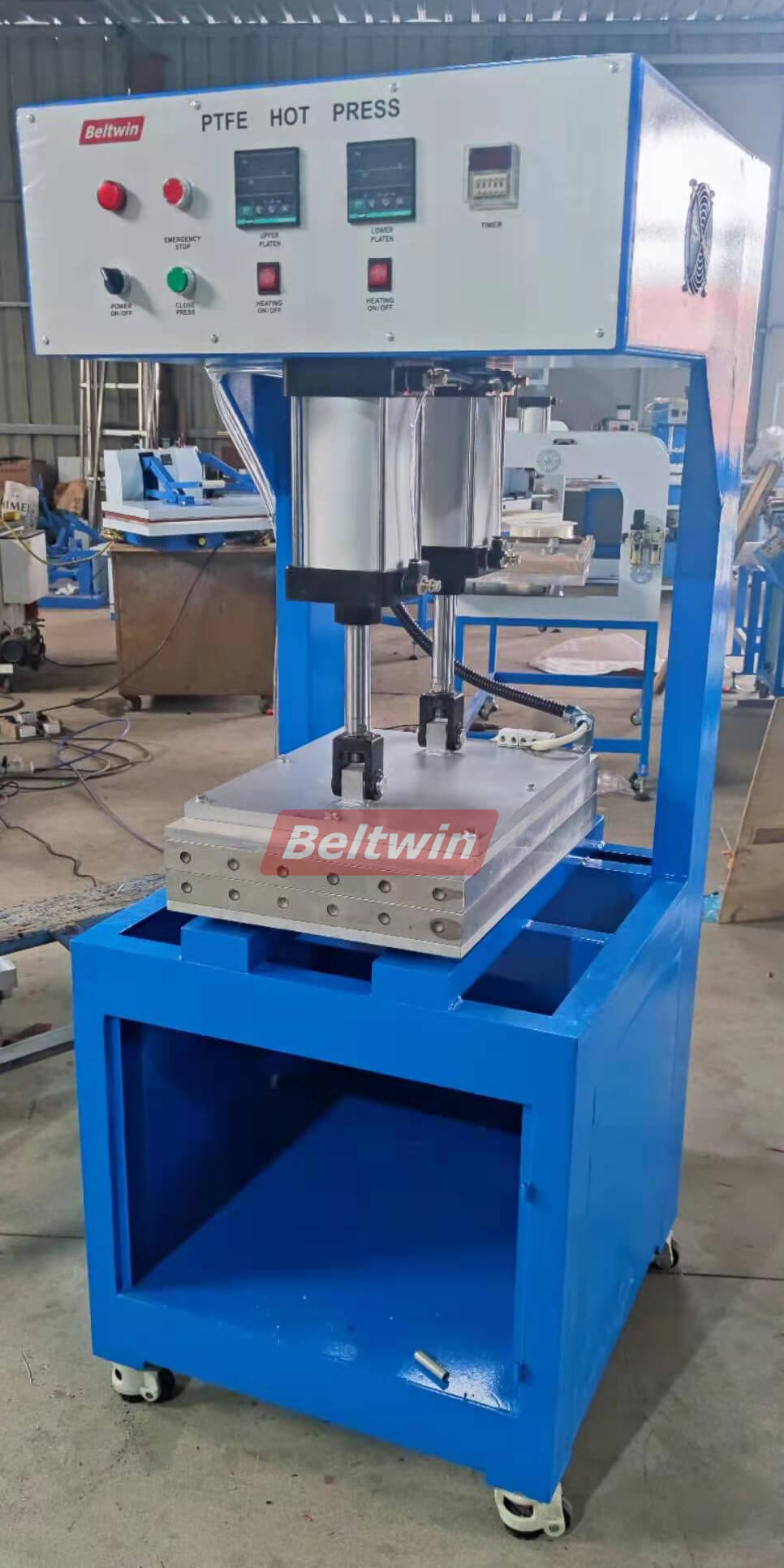

Two kinds of PTFE material bonding machine:

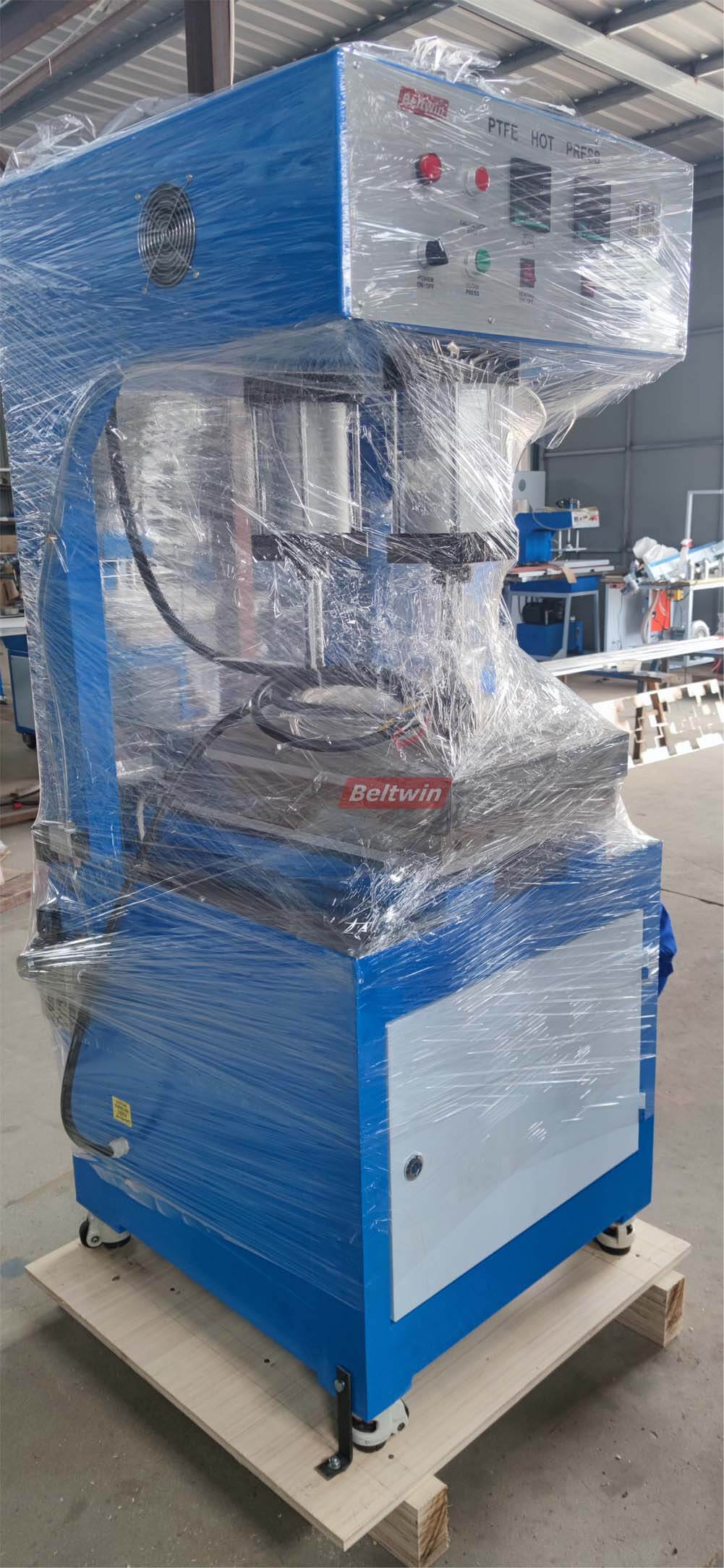

​​​​​​Delivery photos:
