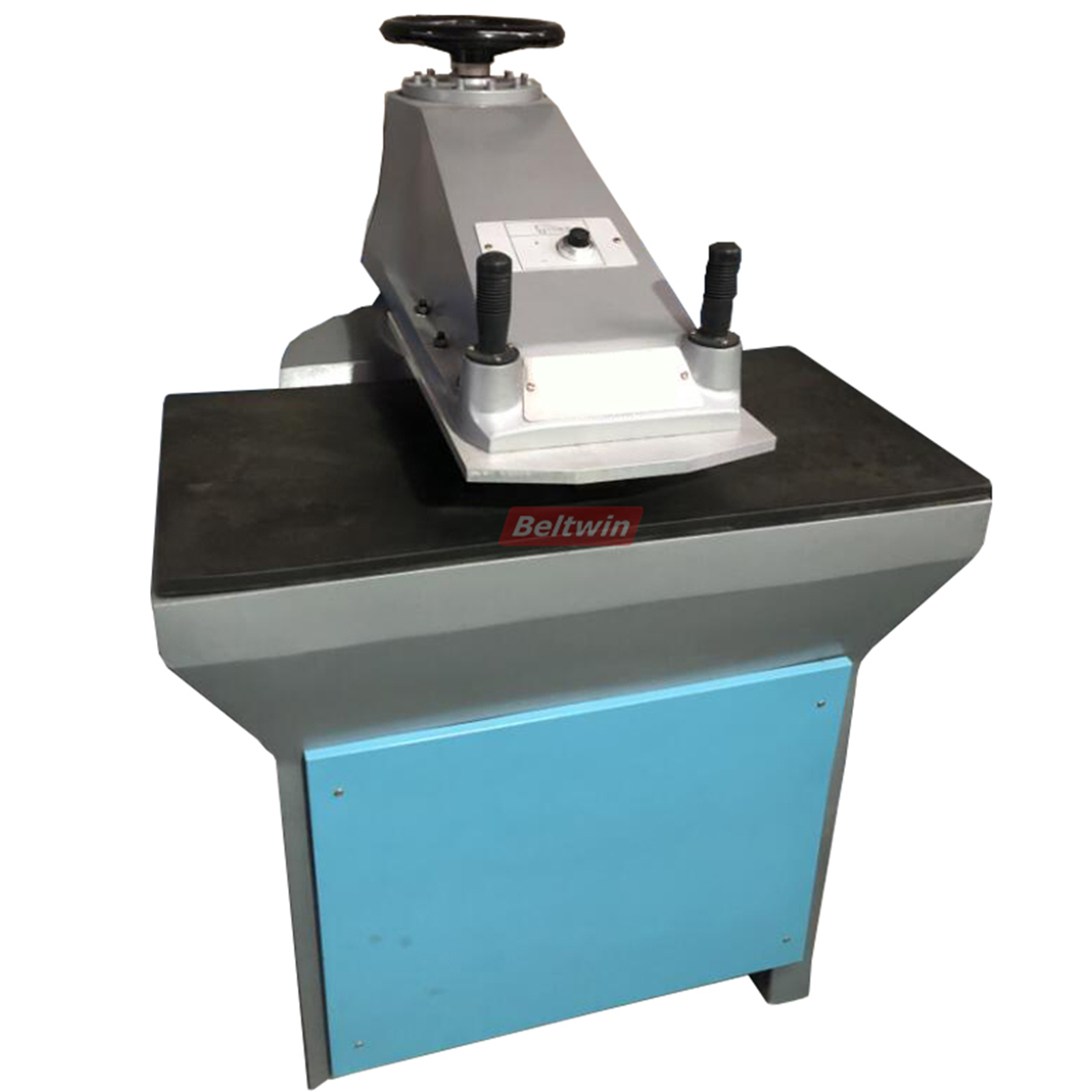

Timing Belt Finger Punching Machine TB20T
Timing Belt Finger Punching Machine TB20T

Timing Belt Finger Punching Machine TB20T

Model NO.
TB20T
This machine can make fingers on timing belt and PU timing belt, can punch fingers on T5,AT5,T10,AT10,5M,8M,S5M,S8M,H type,L type,T20,AT20 etc.
Quantity:

Technical Datasheet

ModelTB20T
Max Cutting Force200KN
Width of Swing-arm350*550mm
Stroke Adjustment Range5-75mm
Cutting Speed0.10m/s
Distance between swing-arm and working bench65-150mm
Motor Power1.5KW
Electric Supply Voltage380v3phase,50hz.
Oil Tank Volume50kg,46#hydraulic oil
Dimension1000*1200*1500mm
Weight1000kg





Punching Mold

T5, AT5, AT10, T20, AT20, 5M, 8M, 14M, H, L, etc.

Punching Effect For PU Timing Belt Include Steel Cord
