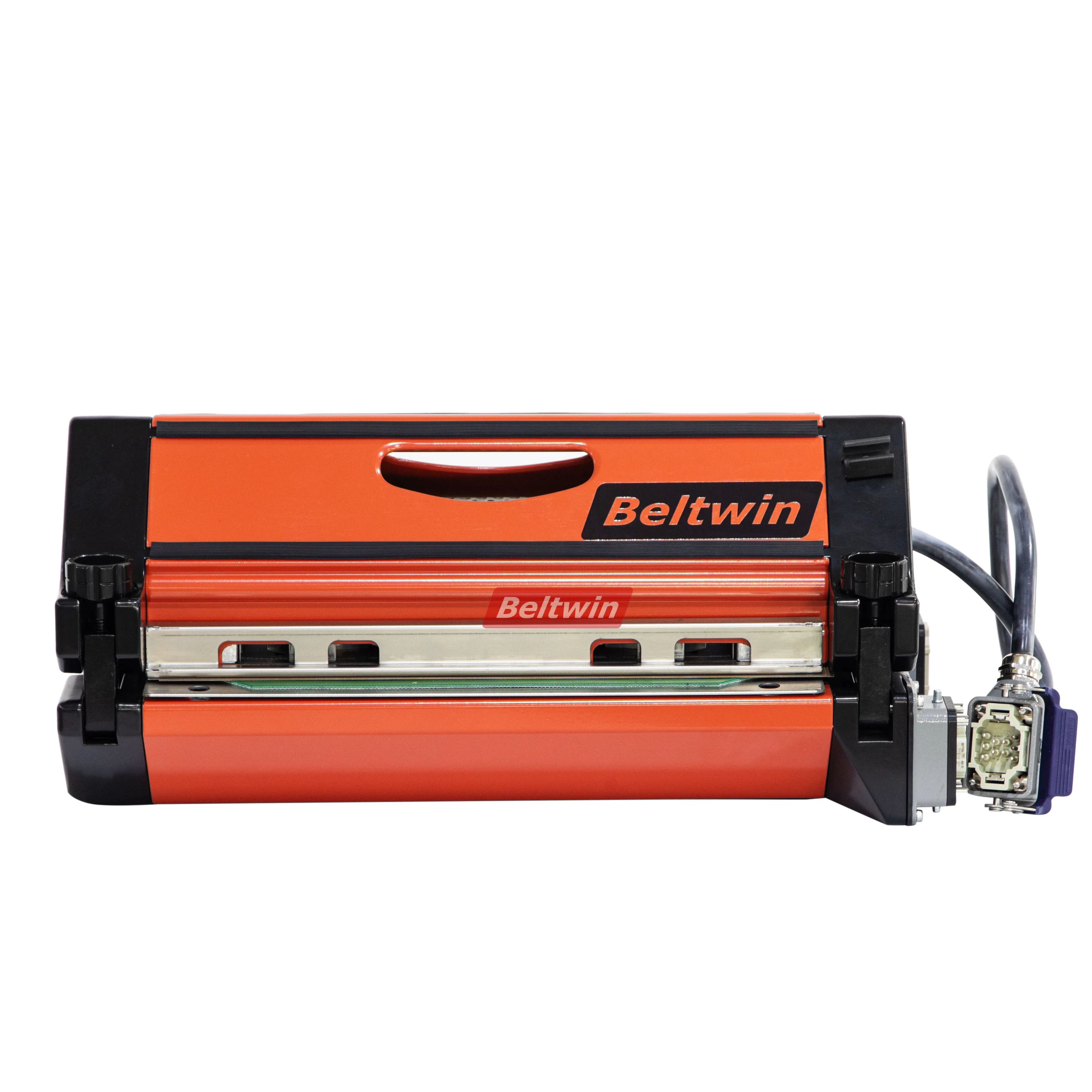

Air Cooling PVC PU Belt Splice Press PA300-2100

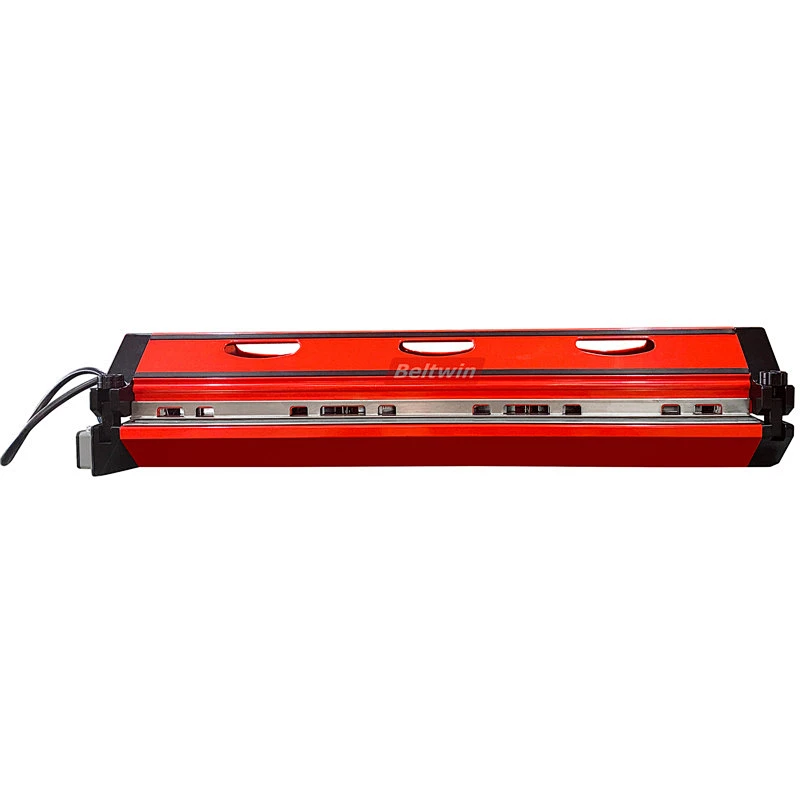

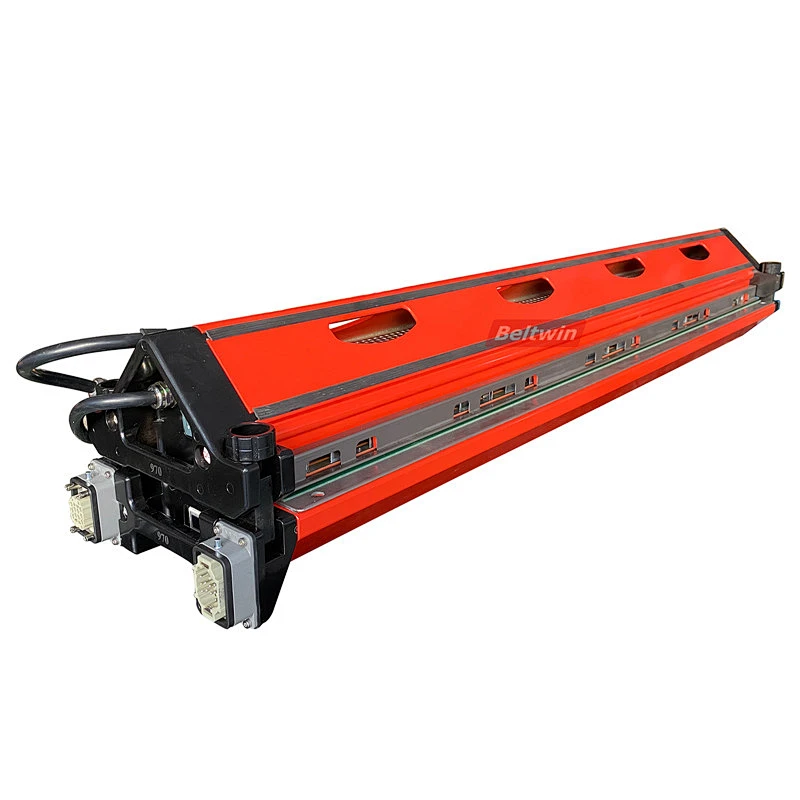

All In One Air Cooling Press PA300-2100

The splice press splices fast and is portable everywhere.

Product Information

1. Cooling: Air Cooling
2. Belt width from 24″ (300 mm) to 82″ (2100 mm)
3. Machine Material: Aluminum
4. Working Pressure: 2 bars / 28PSI / 0.2Mpa
5. Heating Effective width: 130mm Generation 2/ 150mm Generation 3
6. Flight case is included.

Options:

1. Support Stand (for workshop use), pneumatic lift
2. Jointing accessories: PTFE film & pad, Silicone Pad-set, PVC/PU film etc. can help for better jointing. Please contact with us for details. We will offer you right solution.

Features:

• The PA series air cooled press, have different models for width from 24″ (300 mm) to 82″ (2100 mm)
• Used for splicing PVC PU PVK Printing Blankets belt etc. thermoplastic belt materials

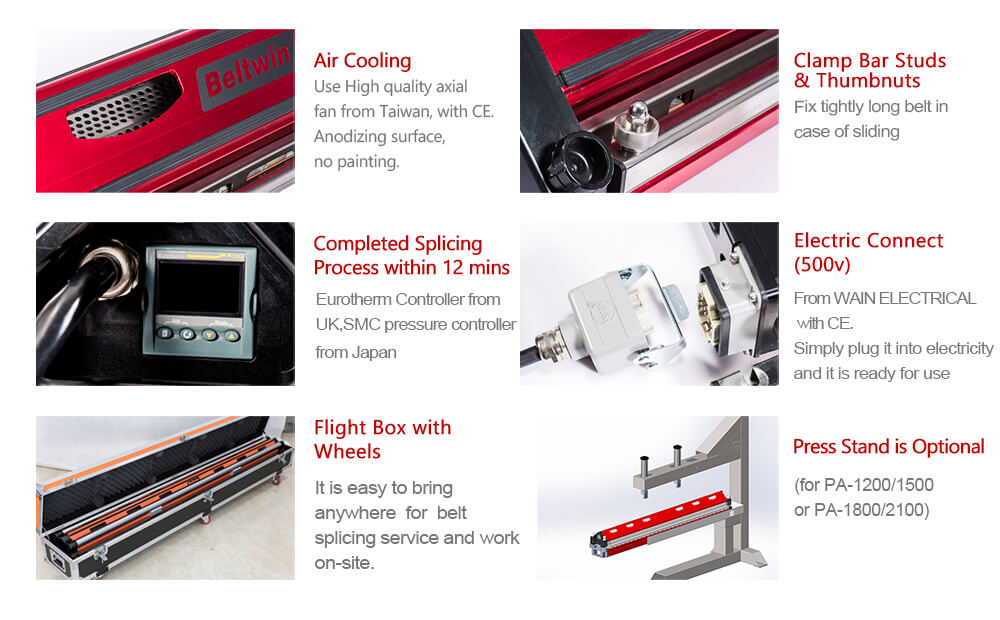

• Portable Conveyor Belt Splice Press, lightweight and with a flight case as standard packing, is easily removed to anywhere for job site use.
• Fast Splicing: including heating time&cooling time, no more than 12 mins.
• Temperature up to 200 ºC (392 ºF)
• All-in-one design: The press has an integrated air-cooling system and also an air compressor inside. To ensure that the belt is quickly cooled down and auto press on, without a water pump or additional air compressor.
• Easy to use and assemble, how to operate pls freely to refer to the below video.
• Lightweight aluminum construction
• Reliable and automatic Temperature Control with time control. High-quality Eurotherm controller.
• Air pressure controller (set the air pressure and display the current pressure), High-quality SMC controller.
• Voltage: 220V or 380V, if special voltage pls freely inform us, like 110V (only under 1200mm, including 1200) etc.
• If used in the workshop, the pneumatic lifting steel stand is optional.

Specification:

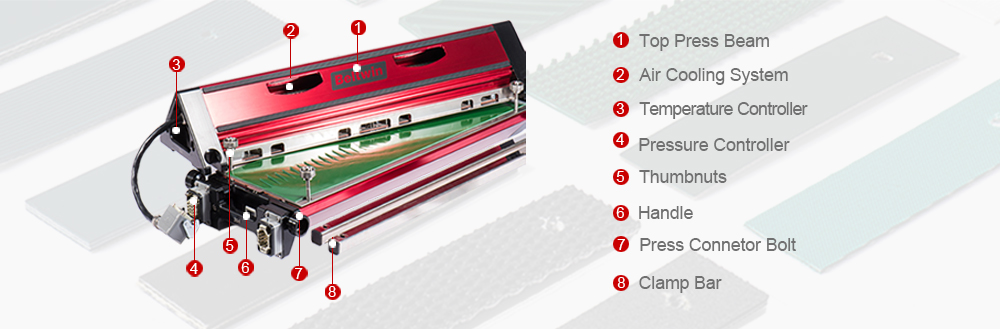

FRAME

Extruded aluminum alloy body, make the total machine lightweight, even 2100 press, only 125kgs. Low profile height only 83mm. Both end caps machined by CNC machine. Outside high quality painting (red color is our standard color, we also can offer other color, like blue by your request), hand polishing the whole body, make sure is safe for your workers.

HEATING PLATEN

Include upper and lower heating platens, both use silicone Element heating system and work with titanium heating plate, can offer fast and even heating when jointing. Heating elements are completed sealed, covered by silicone rubber. Make sure is far from air, longer life time and moisture-proof, more safe. The inside heating elements distribution under control of computer, produced by automatic machine, not manually wired.

COOLING SYSTEM

Several high-performance fans on the upper frame ensure can cooling down from 180C to 65C only take 4m30s to 5m30s.

New generation air cooling press, have fans on both of upper and lower frame. All the fans will start work automatically when dwell time finished. The cooling temperature also can be adjust by yourself.

CONTROL PANEL

Built in the frame of the press and easy to operate. Temperature control (setting heating temperature and cooling temperature) and time control (dwell time setting) in one meter. Pressure control is independent, special supply from SMC pneumatic Japan, with pressure limitation, make sure the workers can’t set pressure higher than 2 bars, more safe.

PRESSURE SYSTEM

PA press has a maximum operating pressure of 2.0kg/cm (2 bars), that is applied with air pressure bag inside the bottom frame. Each air bag, we will test pressure and air tightness detection before install to the machine. The build in air compressor can make the pressure to 1 bar in 15~20S.

Datasheet:

Steel Support Is Optional: With Pneumatic lifting System.

It’s necessary for your workshop

New PA2100 Air Cooling Press

Photos For Delivery

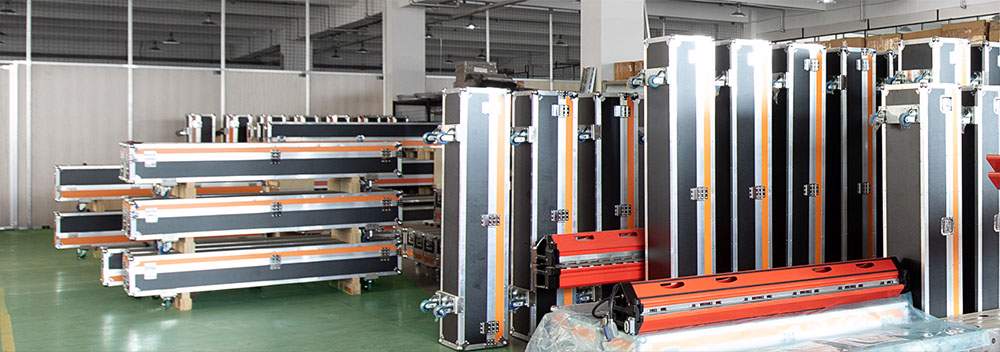

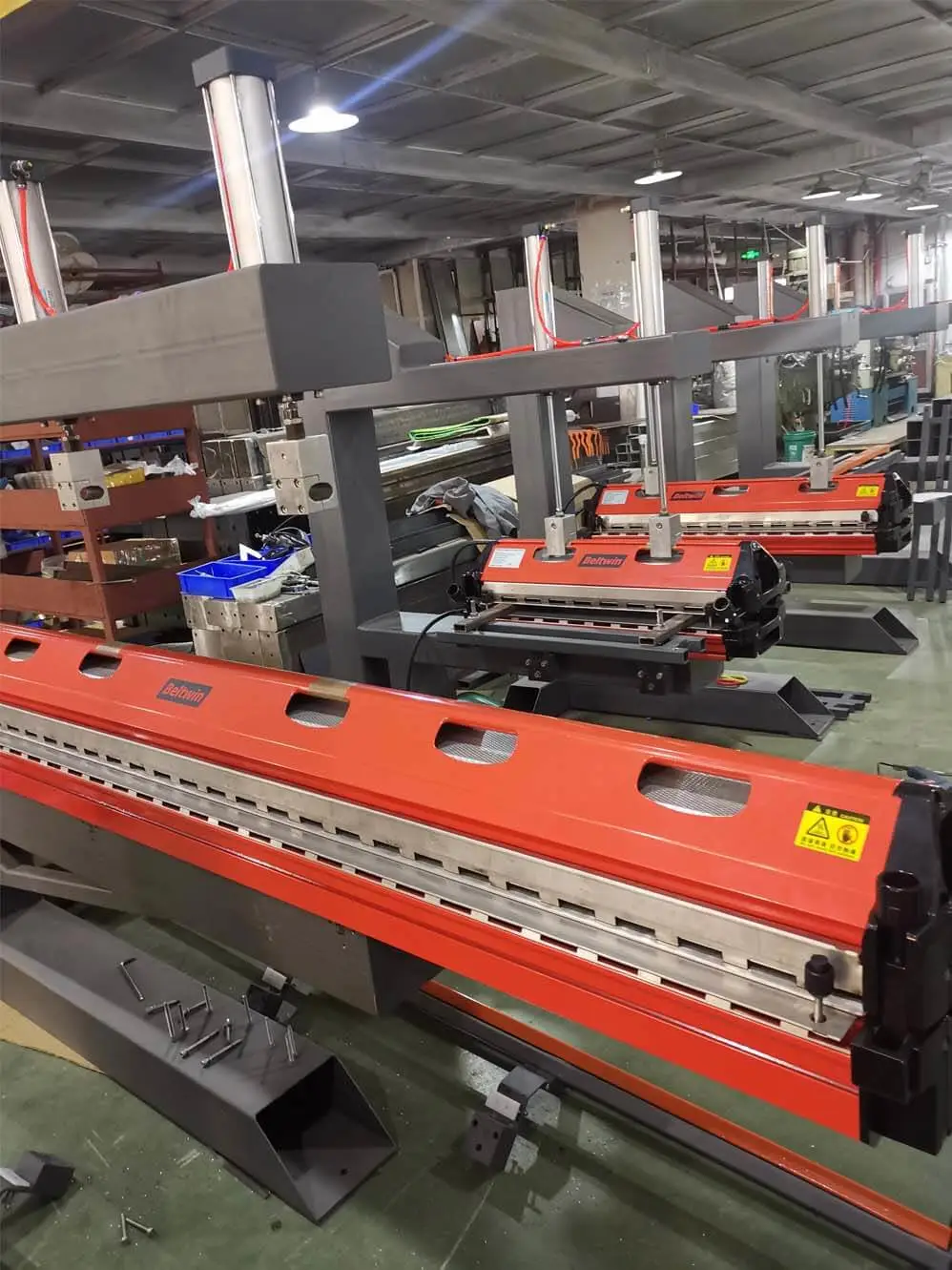

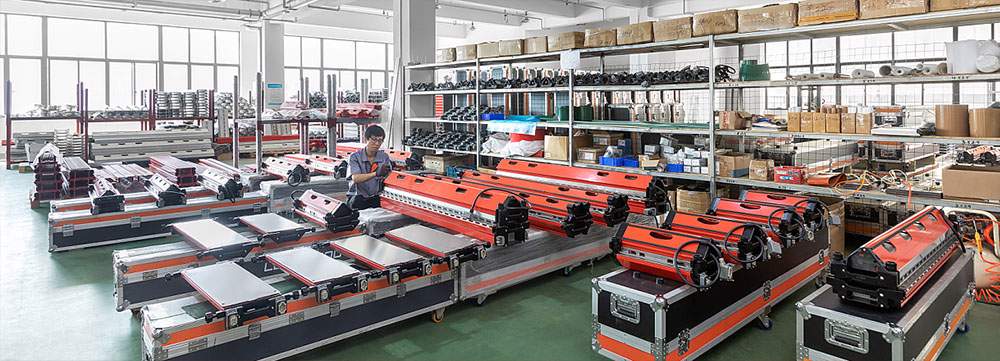

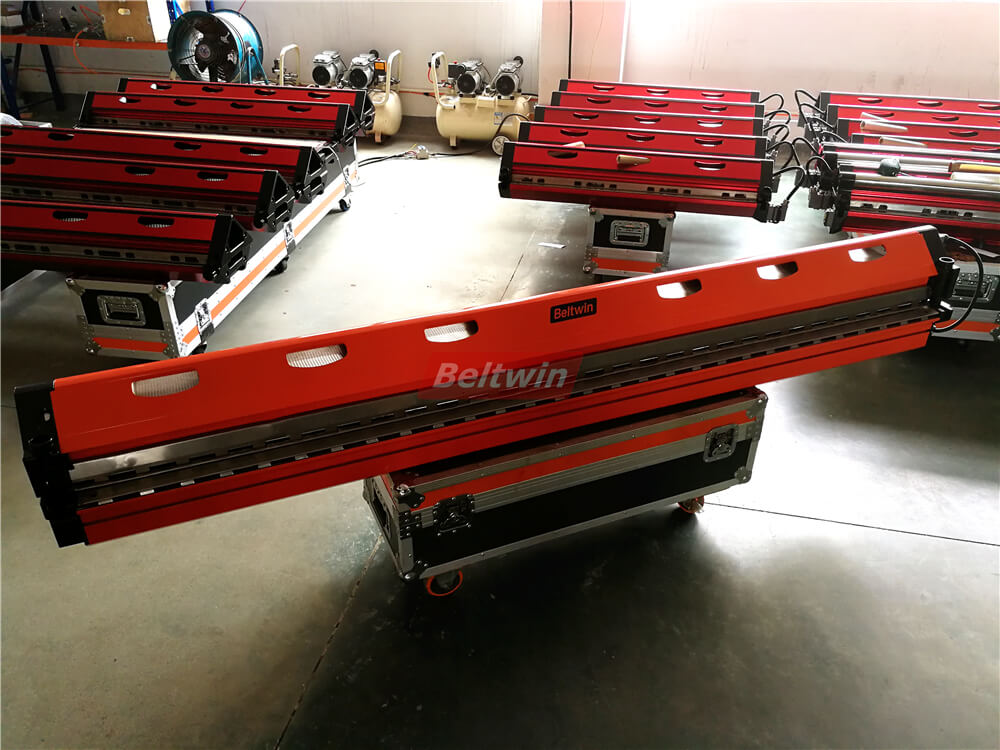

Photos For Warehouse And Production
