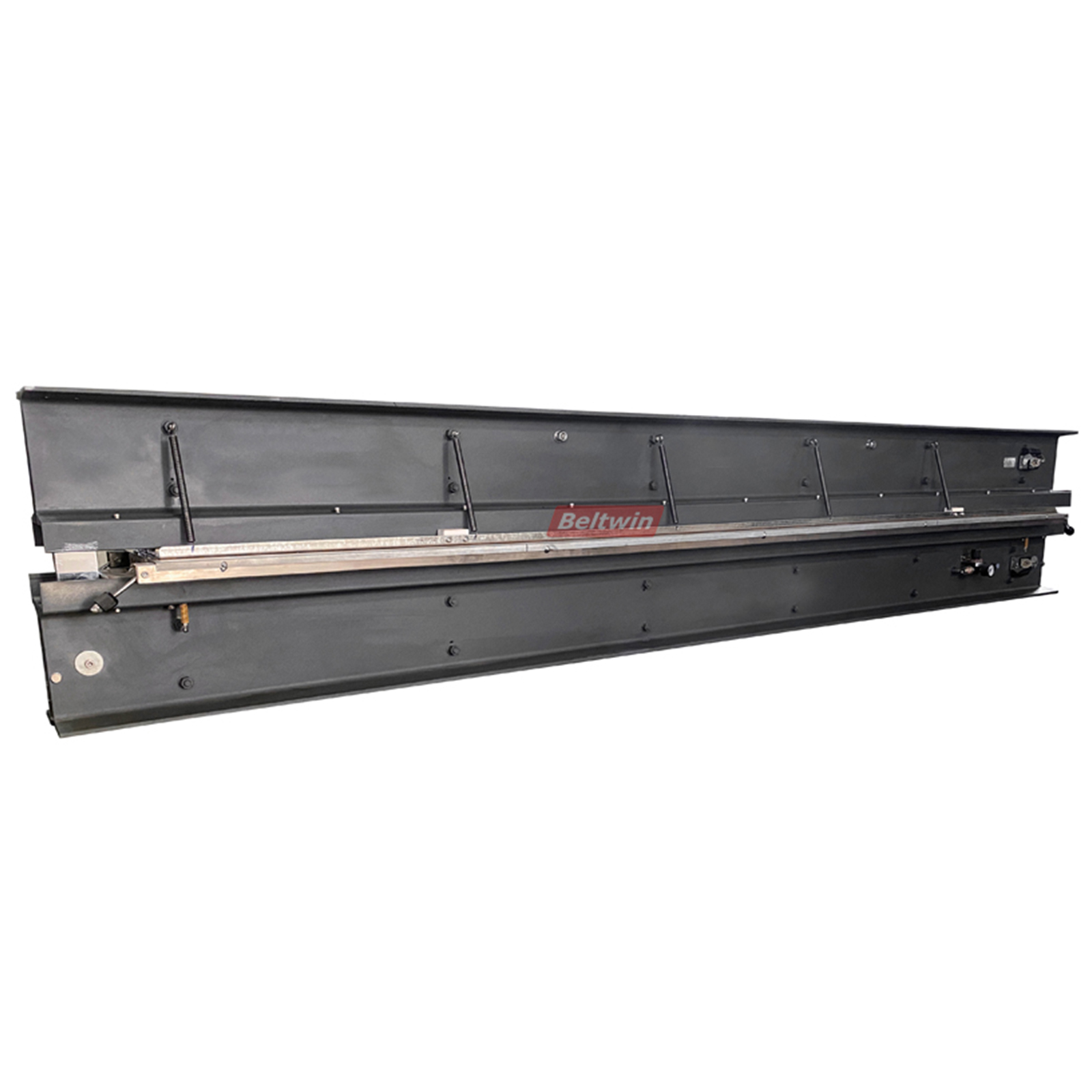

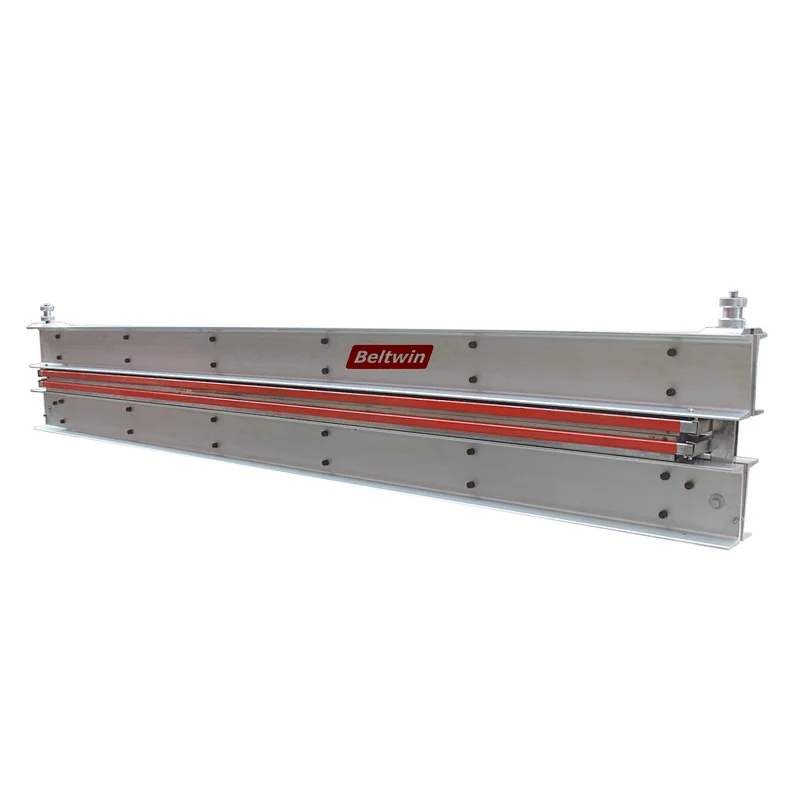

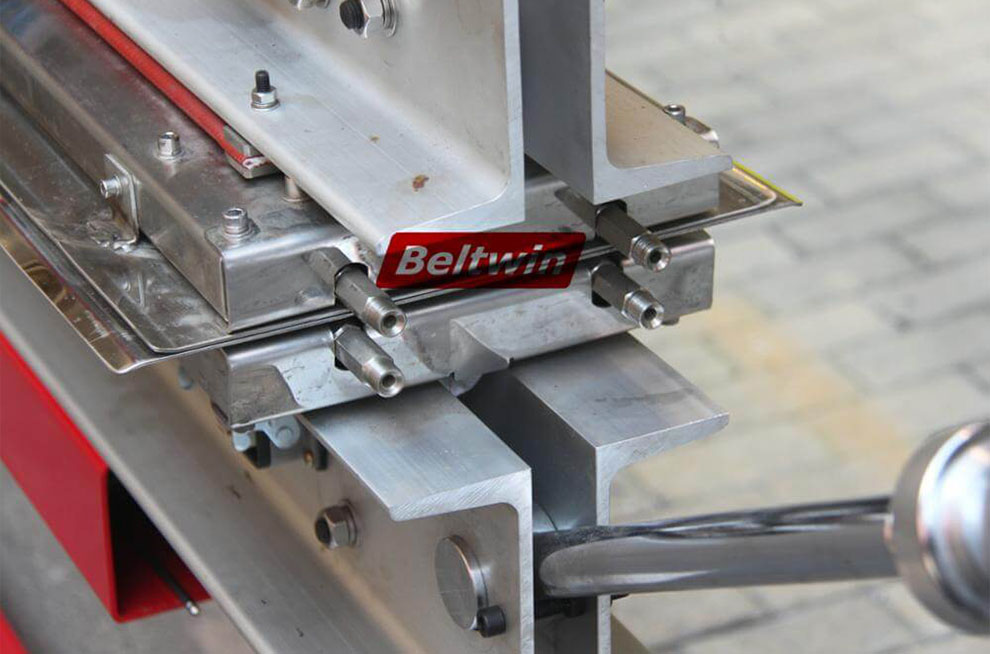

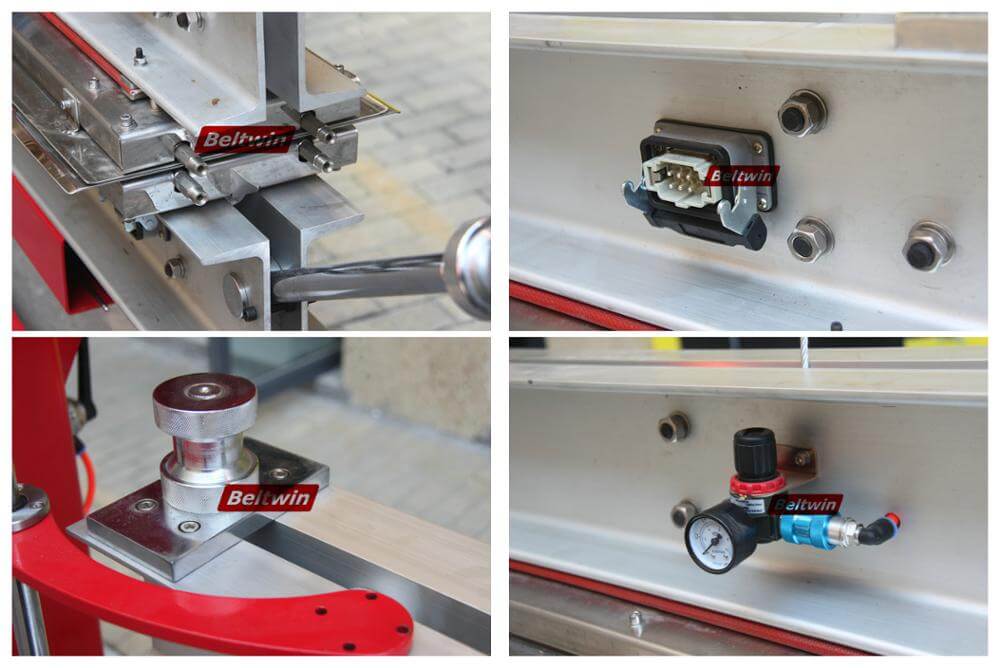

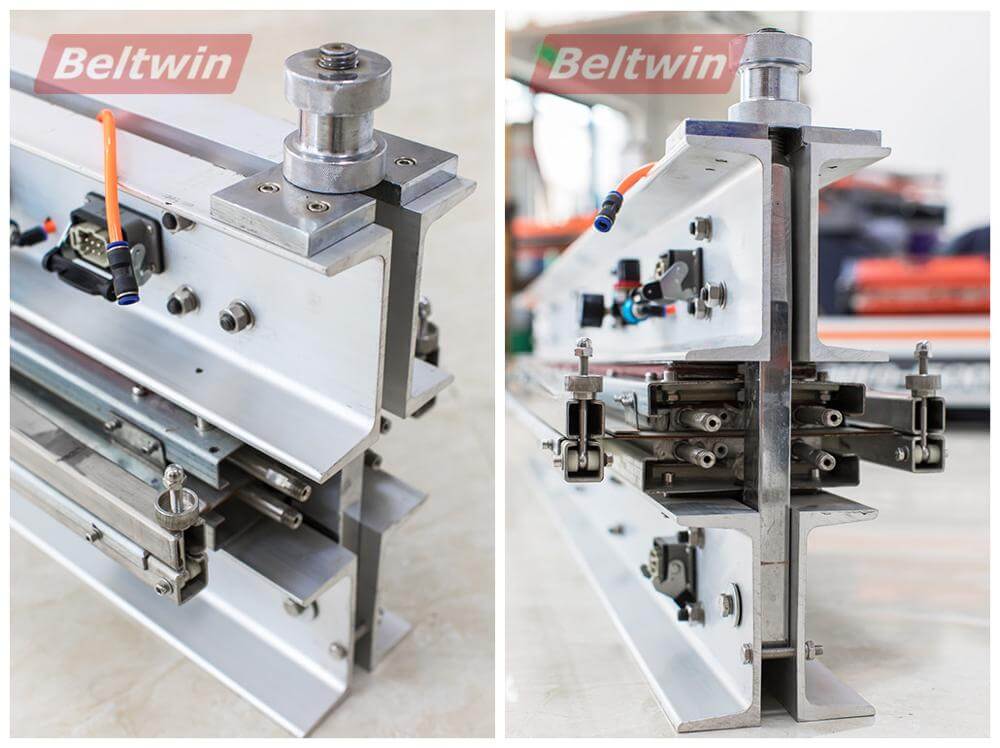

Aluminium Alloy Body PVC PU Belt Water Cooling Press PC2100-4200
The splicing press efficiently handles PVC and PU belts with a width of up to 4000 mm, using compressed air to create fast and effective pressure.
Specifications:
- Aluminum alloy body and heating platen.
- The heating area width of the heating platen is 150mm. (If 200mm is needed, we have another type of press).
- Different sizes for belt widths from 2100mm to 5200mm. （Width under 2100mm, we use stainless steel body).
- Used for PVC belt, PU belt ( Polyurethane belt), and Polyester Monofilamen synthetic belting.
- Airbags (pressure bags)
- Laser silica gel hot platen
- Easy to use and assemble
- Lightweight
- Rapid cooling system within platens
- Heating to 180°C takes about 15-20 mins; cooling down from 180°C to 60°C takes about 3-5 mins. (according to different sizes of presses.)
- The temperature error between the upper platen and the lower platen is less than 3°C.
- Air pressure is 0-0.3 Mpa.
- Reliable and automatic temperature control panel with time control.
- Volatge: 220V or 380V. Special voltages can be customized.
Technical Datasheet:
| Model | PC2100*150 | PC2600*150(200） | PC3200*150（200） | PC4200*150（200） |
| Belt width | 2000mm | 2400mm | 3000mm | 4000mm |
| Heating platen size | 2000*130mm | 2400(2500)*130(170)mm | 3000*130(170)mm | 4000*130(170)mm |
| Max temperature | 200°C | 200°C | 200°C | 200°C |
| Pressure | 2 Bar | 2 Bar | 2 Bar | 2 Bar |
| Max belt thickness | 10mm | 10mm | 10mm | 10mm |
| Min endless length | 1000mm | 1050(1300)mm | 1200(1260)mm | 1200(1260)mm |
| Lower part height | 212mm | 253(310)mm | 305mm | 305mm |
| Machine weight | 210kg | 295(356)kg | 460(490)kg | 565(620)kg |
| Voltage | 220V, single phase | |||
| Power | 8KW | 10(12)KW | 12(14.4)KW | 15.6(16.3)KW |
| Cooling system | Water cooling | |||
| Joint time (PU Belt) | Heating time: 20 mins Dwell time: 3 mins Cooling time: 3 mins | |||
Options:

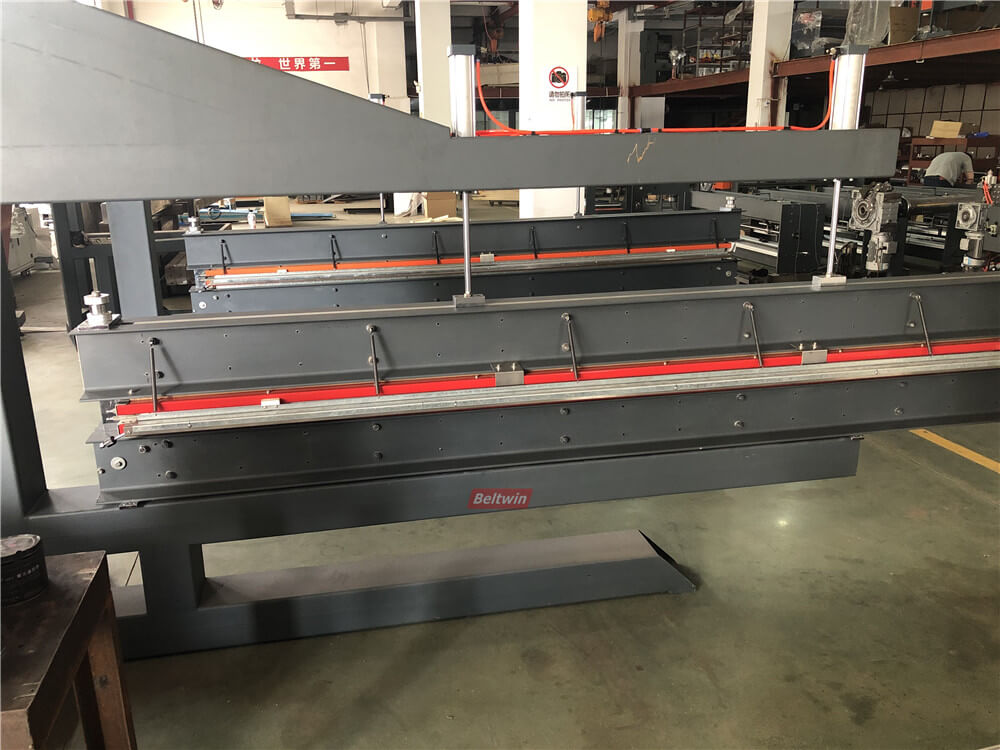

- Support Stand (for workshop use), pneumatic lift
- Jointing Accessories, like PTFE film & pad, Silicone Pad-set, PVC/PU film, etc. can help for better jointing. Please contact us for details. We will offer you the right solution.
More photos:

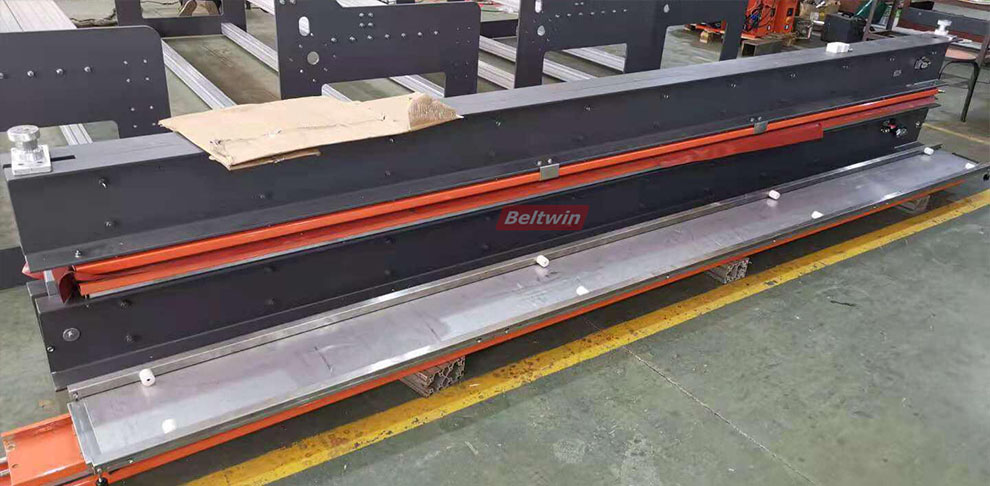

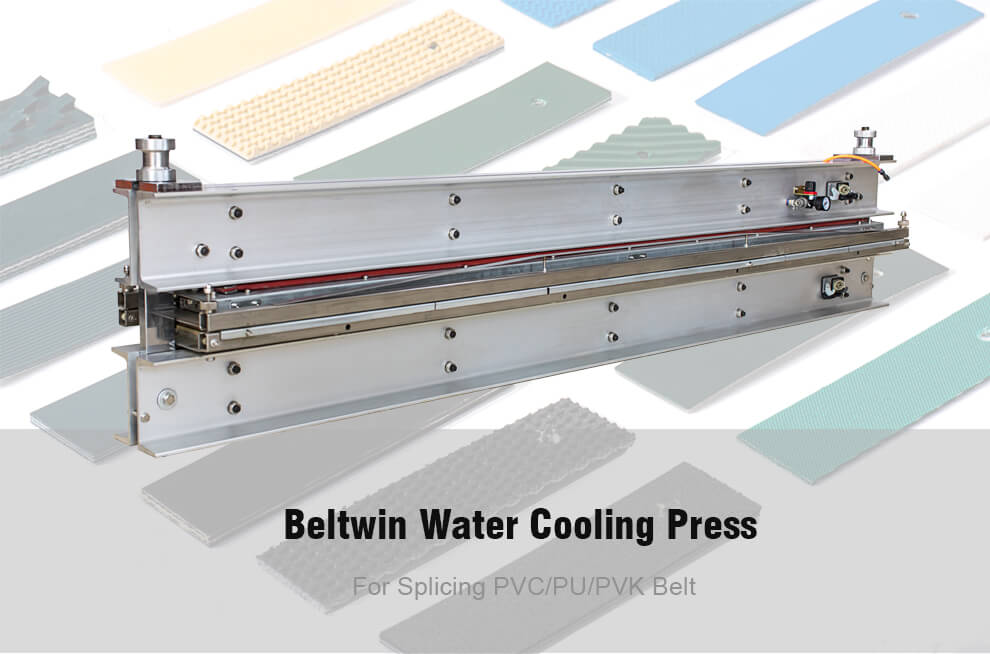

Water Cooling Press for 4000mm:
Optional Accessory:

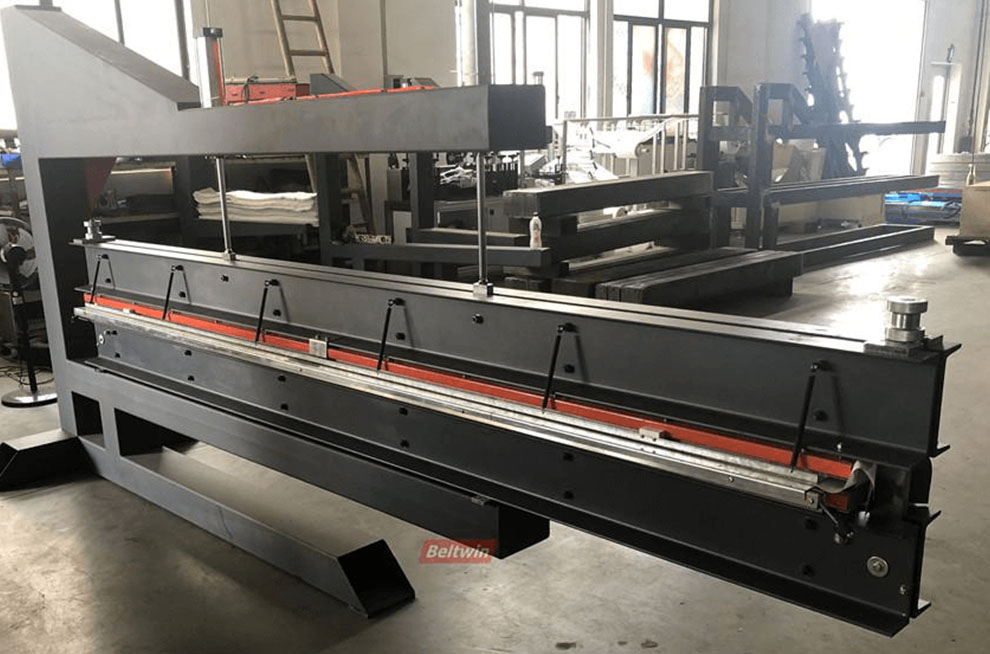

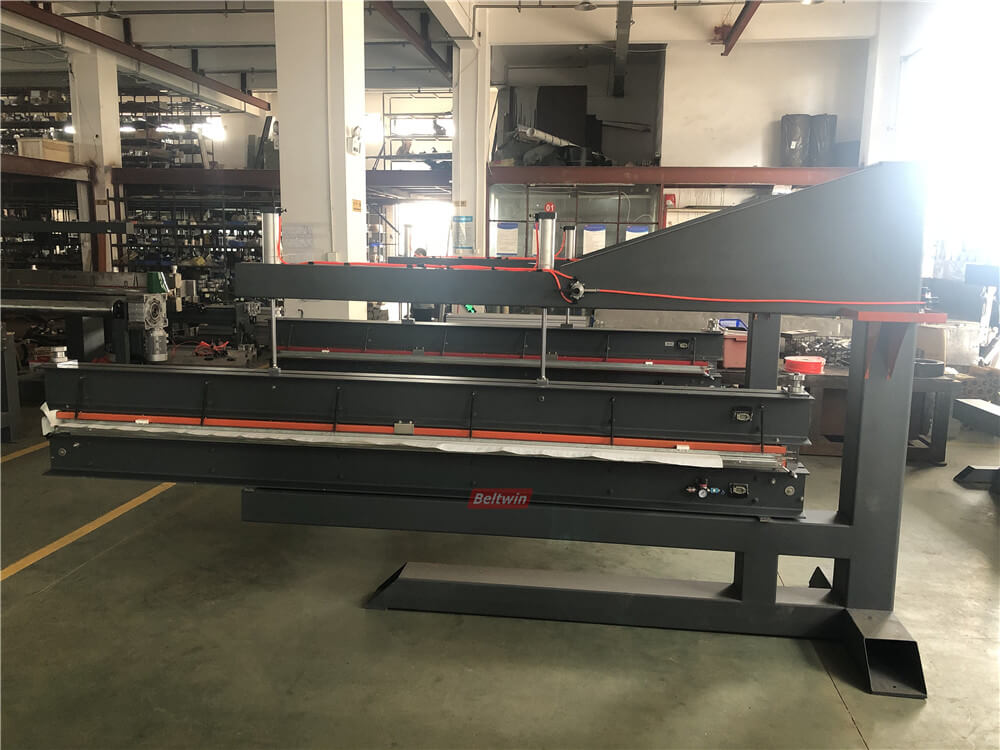

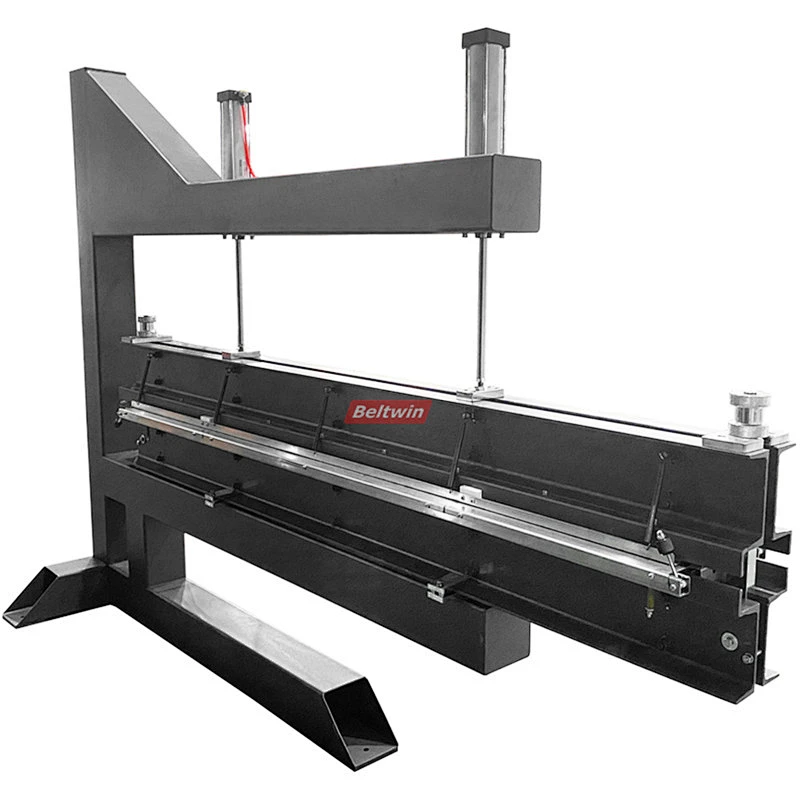

Stand For Water Cooling Press

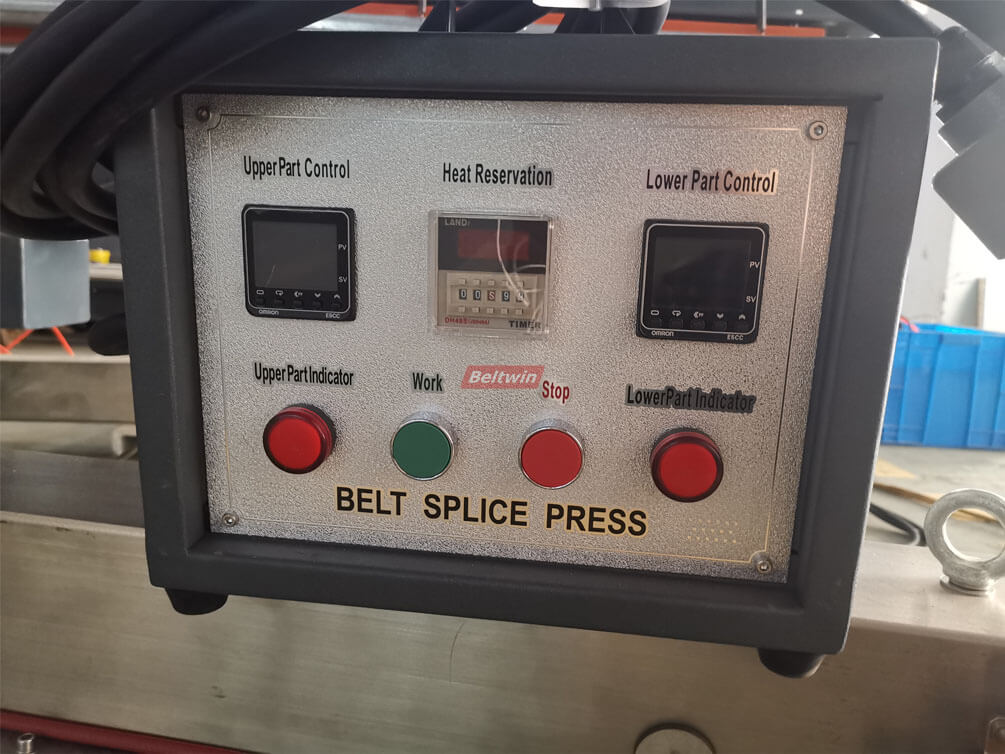

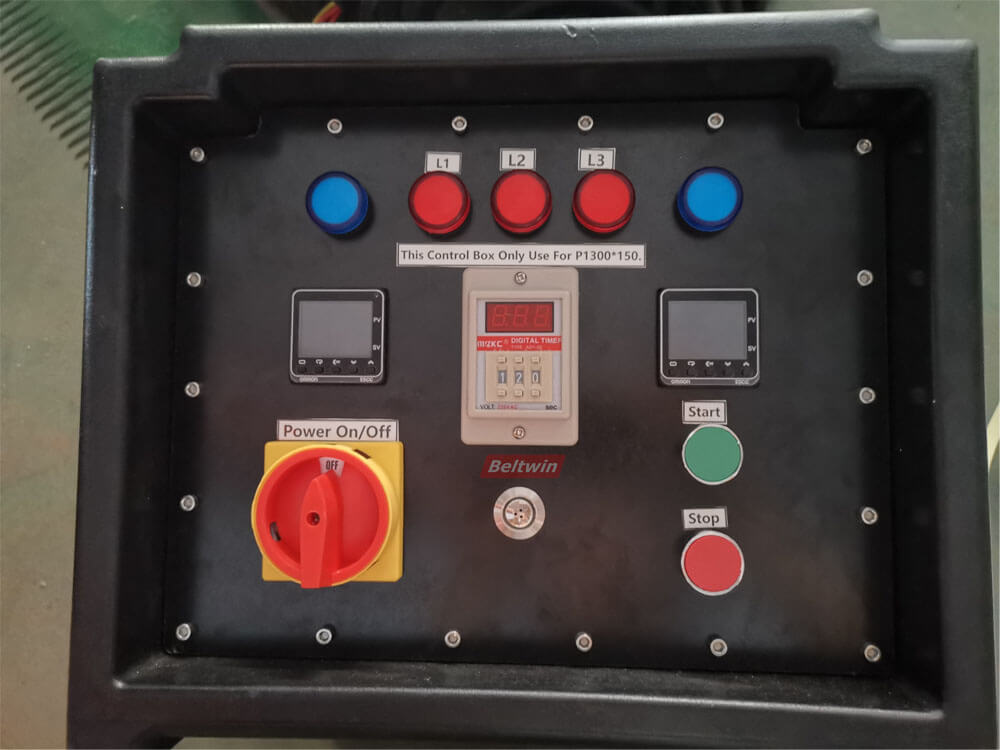

Standard Control Box:
Reliable and higher quality temperature controllers, from OMRON Japanese Brand. One of the most famous electric brands.

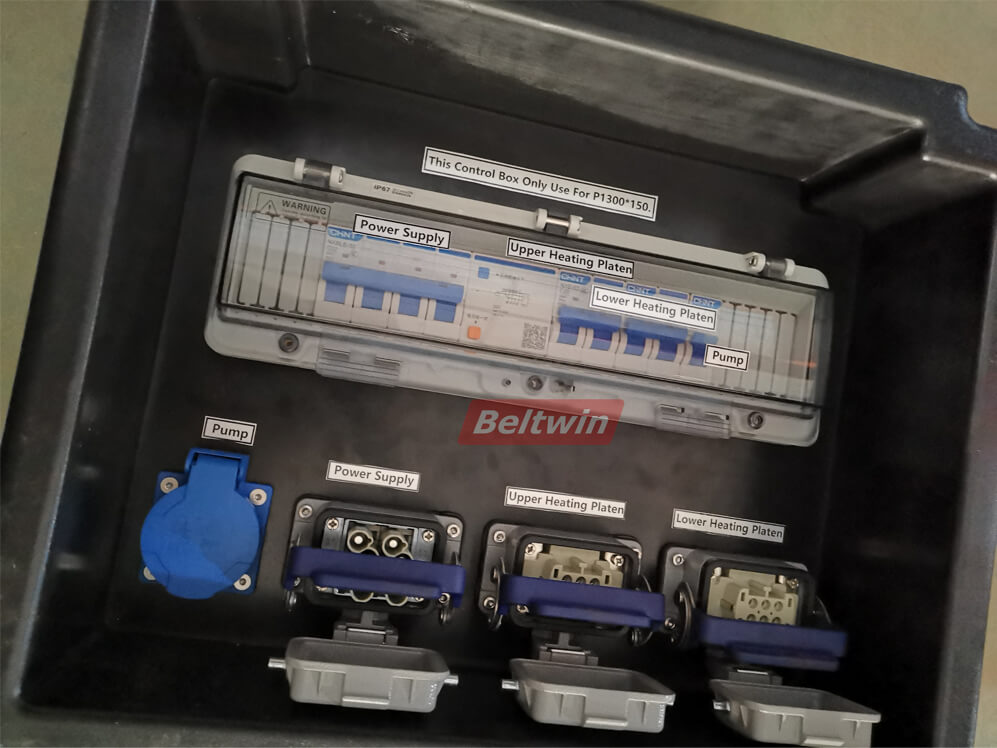

European Standard Control Box (Optional):
All electronics approved by CE. If you come from Europe or USA et. Better choice for you.
