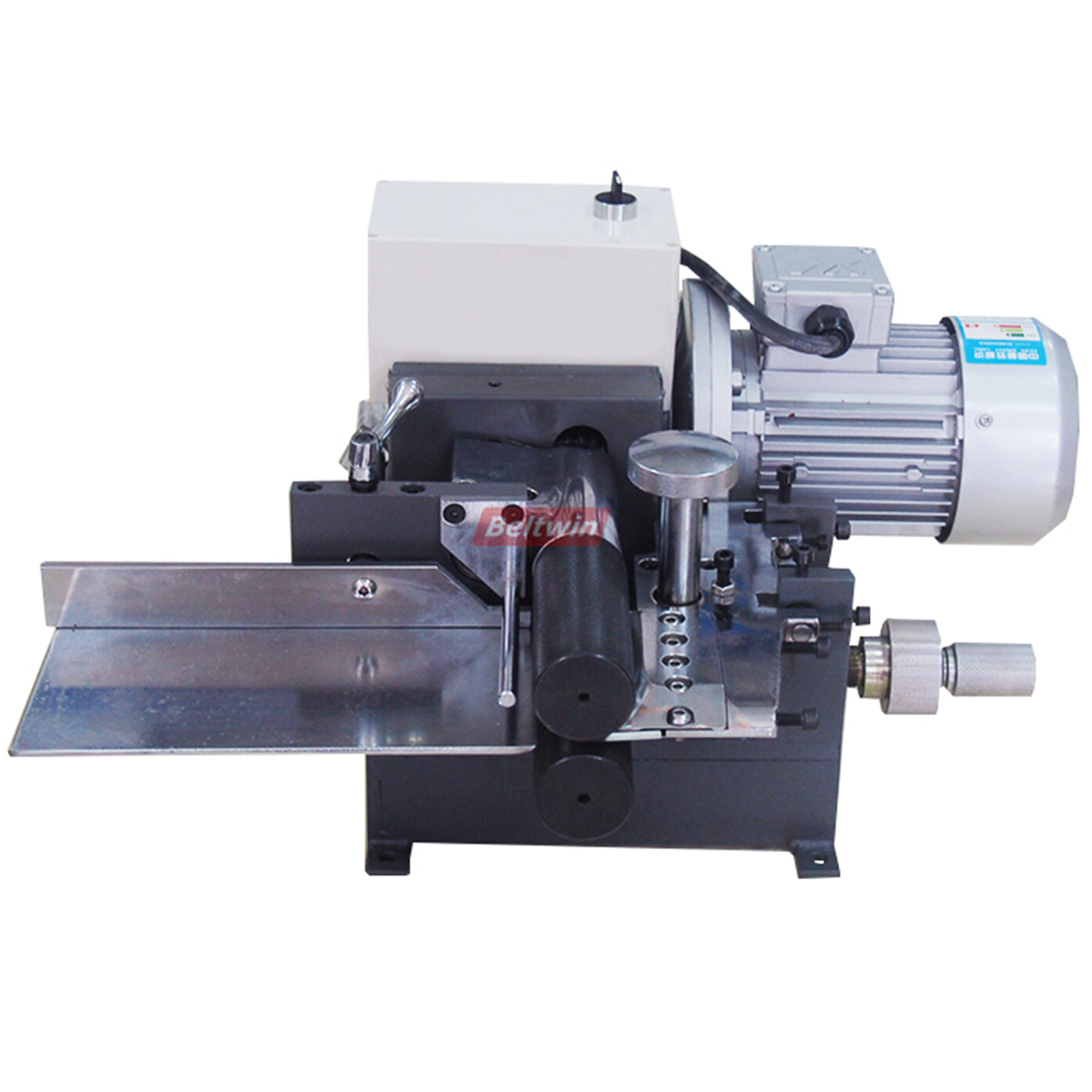

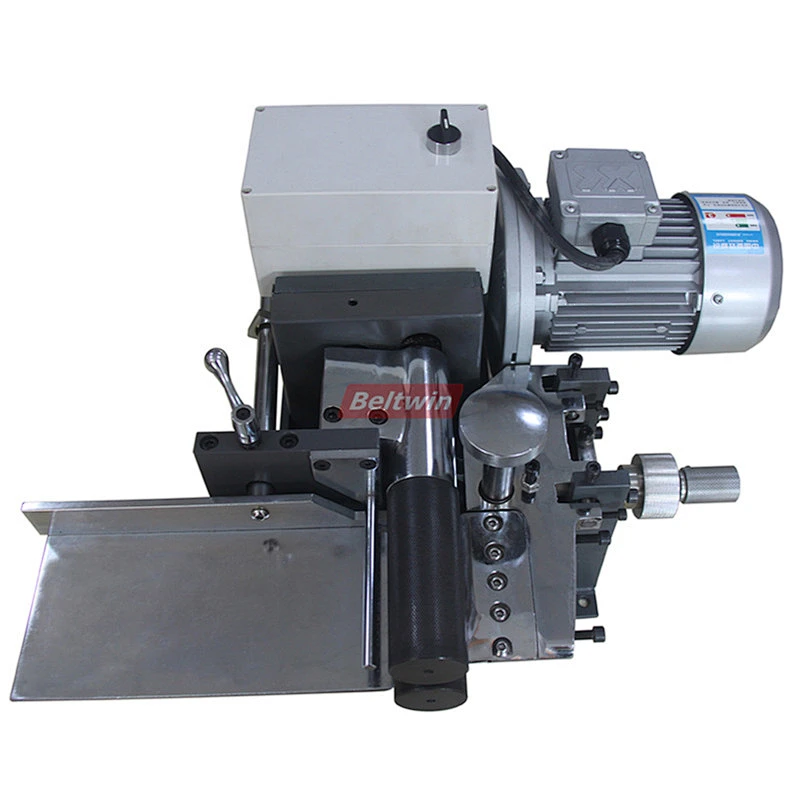

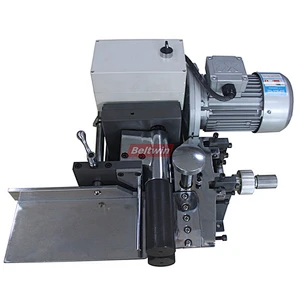

Belt Ply Separator SB130

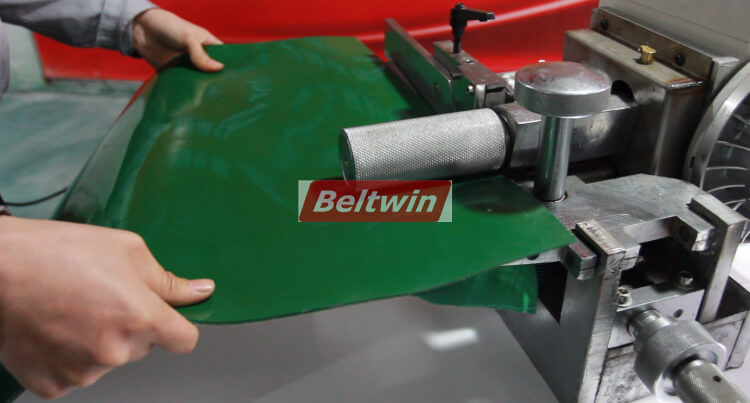

Designed to separate the fabrics for splicing at the ends of 2 and 3 ply conveyor belts for top quality splicing. Fully automatic unit quickly preps belts in PVC PU or rubber belt. Increasing productivity and reducing human error.
Production Information:
- Machine material: Steel structure
- Split deepth 150mm
- Split thickness: 1~15mm
- Suitable Belt: PVC PU Belt, light duty rubber belt and homogeneous PU belt.

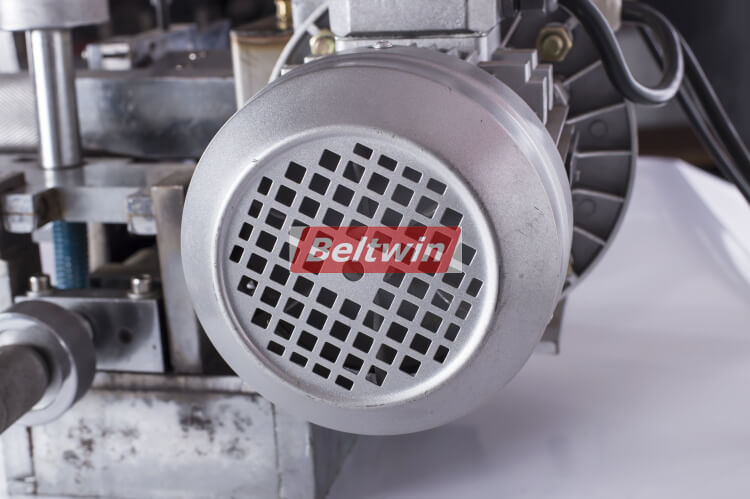

- Motor Power: 0.75KW/50Hz
- Electric Connection: 380V 3 phases
Specification:

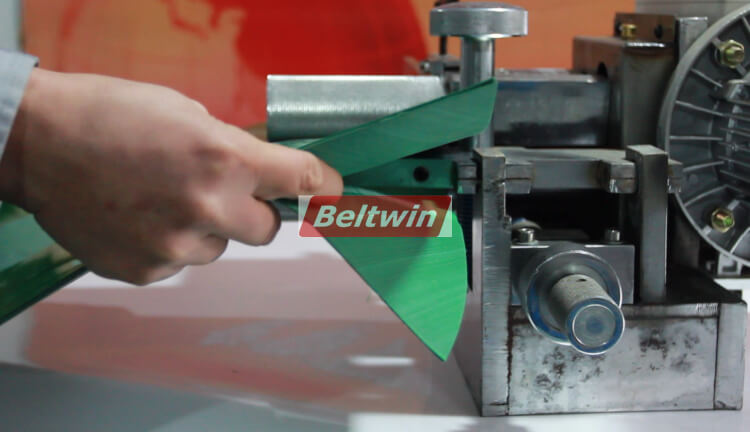

- To separate belt plies, belts can be divided into two layers, three layers or four layers etc.
- Easy to maintenance
- Economic design, if no need separate the belt ply too much, will be good choice for you.
- Hard alloy steel knife, replaceable, easy to change.
- For PVC, PU belts and rubber belts
- Split width 150mm
- Motor speed: 1400 r/min 1.88A

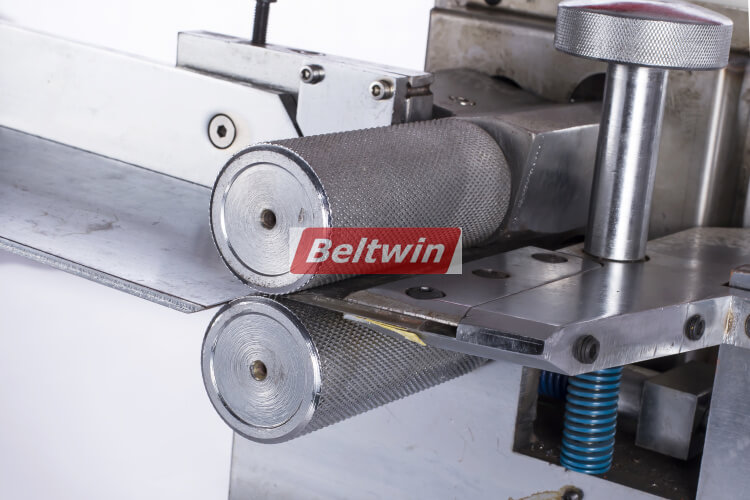

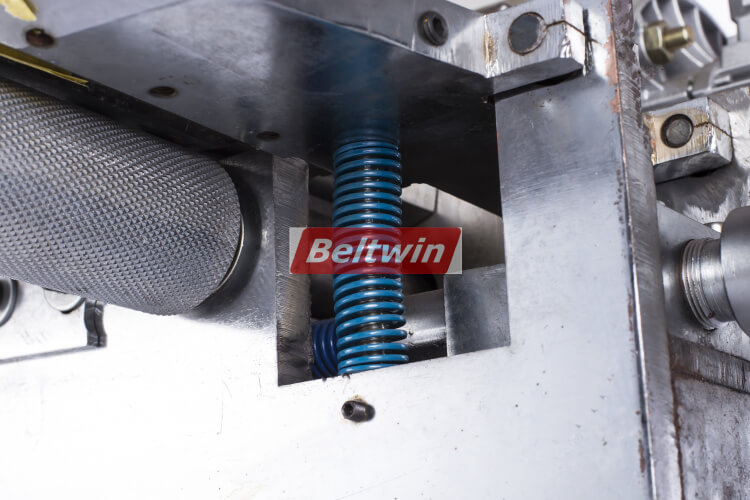

- Adjust bolt: set upper and lower roller distance accords to ply thickness.
- Split thickness max 15mm , if any special requirements, pls freely to let me know.
- With pedal switch, easy operation
- 380V 3phase
- Power: 750W
- Machine net weight: 46kgs
Video for Belt Ply Separator:
