Easy to use portable press for splicing transmission belts, Spindle Tape, Flat belt, Tangential Belt.
Product Information:
- Heating system: single side heating
- Size: 80x60, 150x100 and 250x160mm
- Cooling: Without cooling
- Temperature Control: Mechanical control
- Working Voltage: 220V Single phase
Options:
- Independent controller
- Digital thermometer
Features:
- We have more than 20 different types small press, pls freely to send us your requirements
- Heating presses for bonded splice, (with heating platen on one side), if need double sides heating, pls inform us.
- Easy to use and assemble
- with fix set temperature, 110 ℃
- With independent controller is available by request
- Portable type
- Compact size, it can used in the place where other presses are too big to use
- Light weight
- Can used for transmission belts, Tangential Belt, Spindle Tape etc.
- Quick splicing
Technical Specifications:
Model | 80x60 | 150x100 | 250x160 |
Thickness (mm) | 0.3~1.5 | 0.3~6 | 0.3~6 |
Area (mm2) | 80x60mm | 150x100mm | 250x160mm |
Packing Dimension (mm) | 290x80×110mm | 400x140X140mm | 430x230x230mm |
Packing Weight (kg) | 1.5 | 6 | 14.5 |
Temperature | -10~40 ℃ | -10~40 ℃ | -10~40 ℃ |

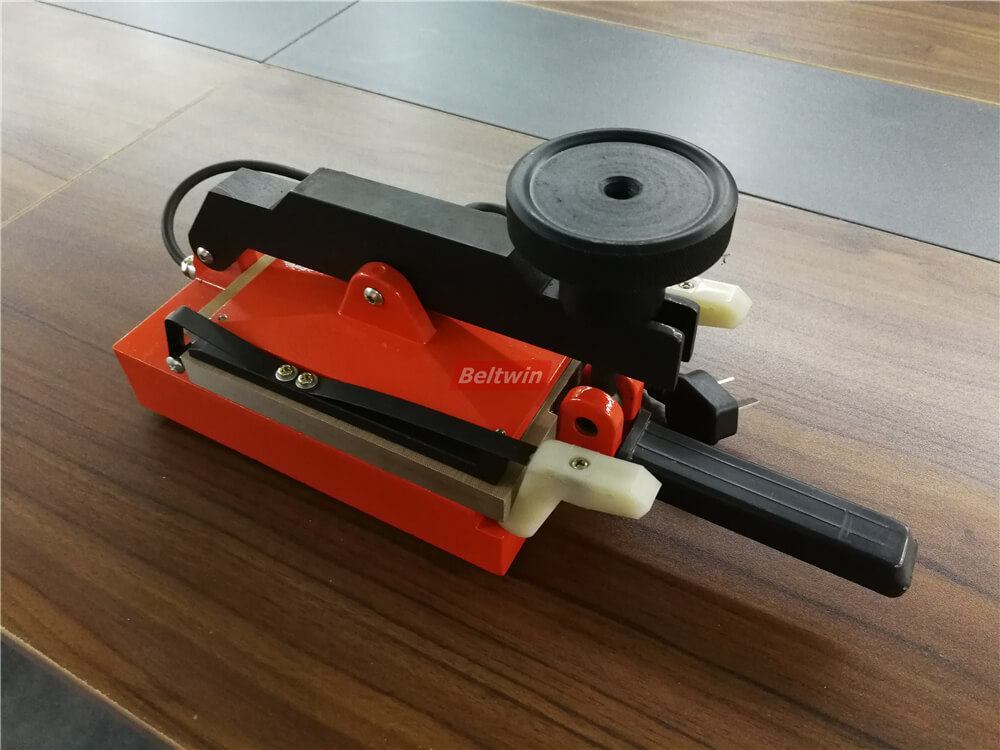

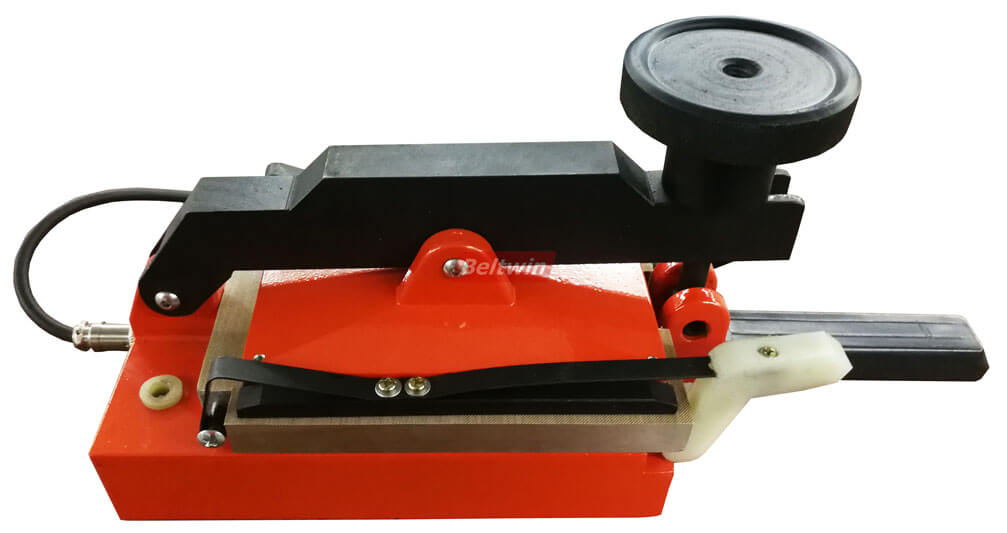

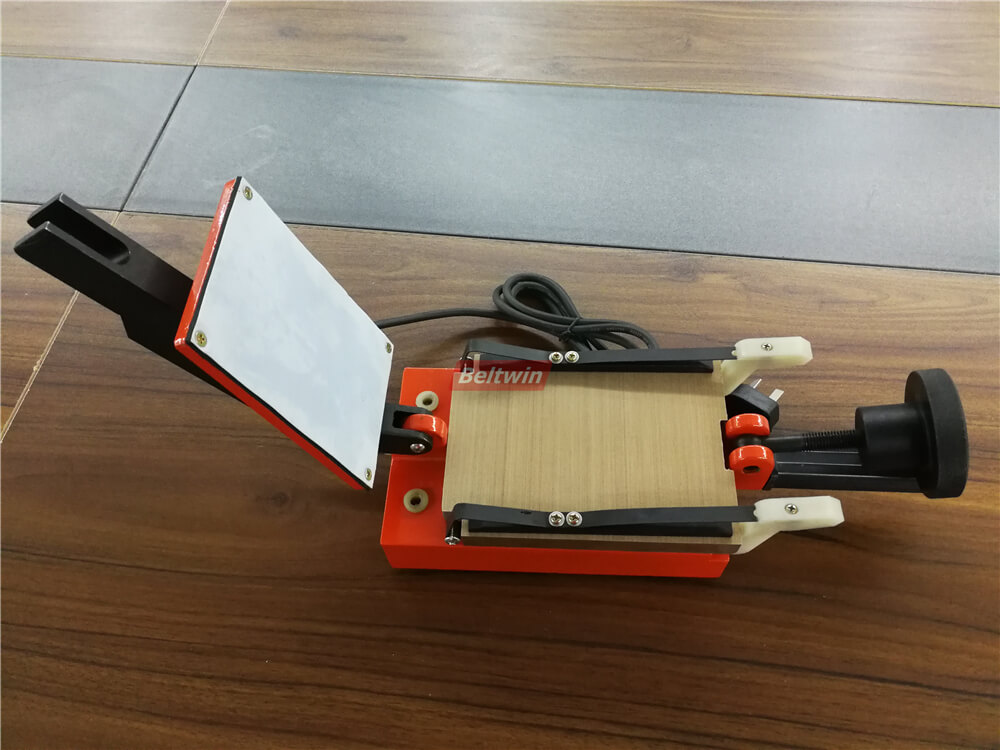

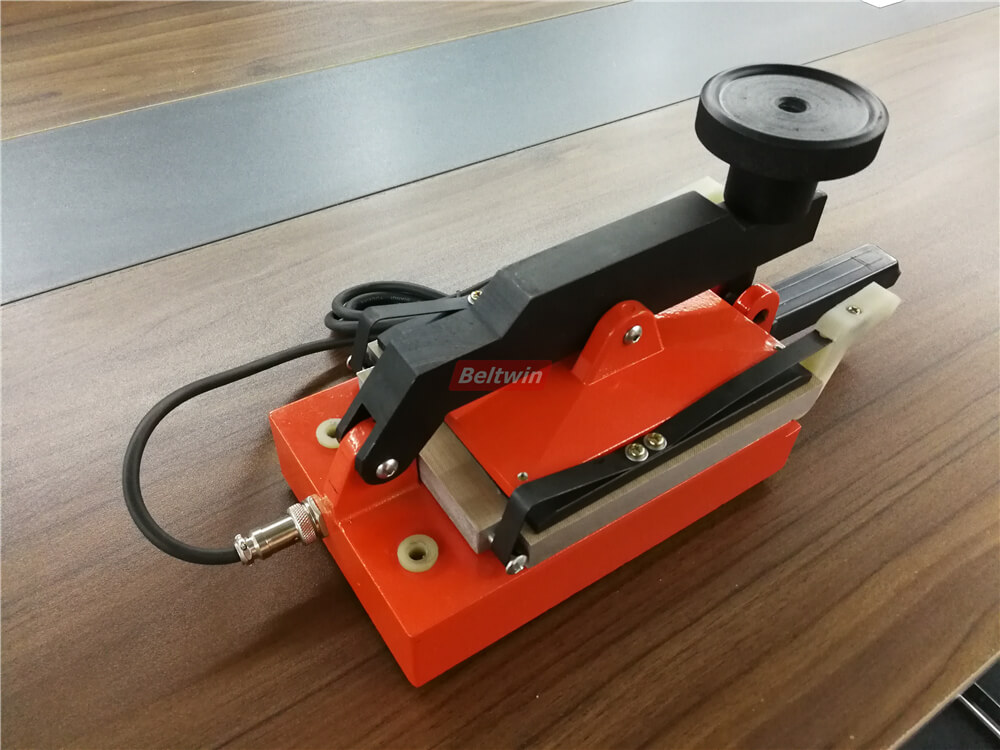

Photos for 150x100mm splice press:
