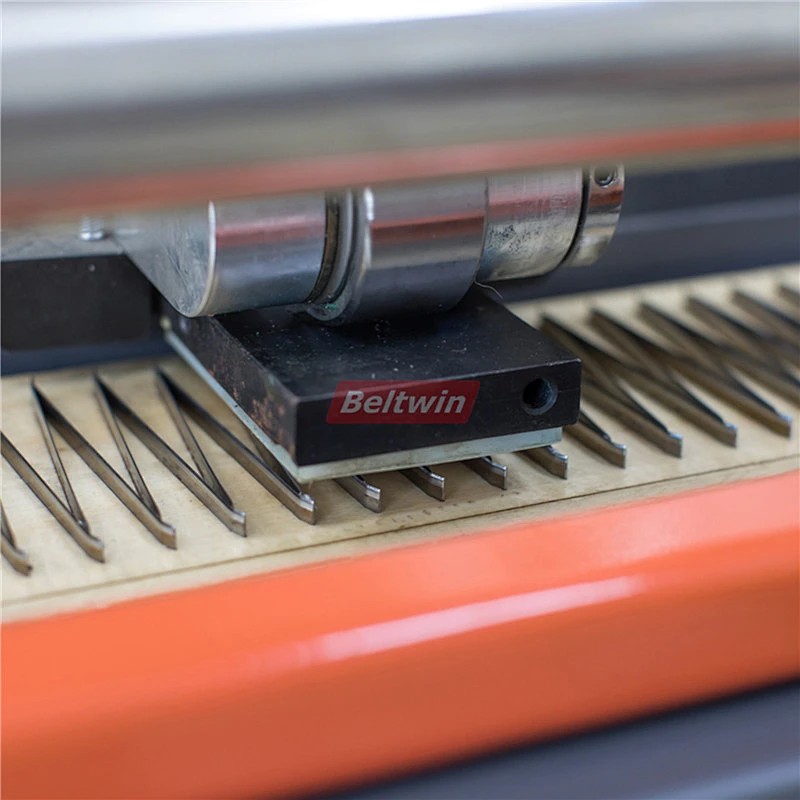

Manual Finger Puncher

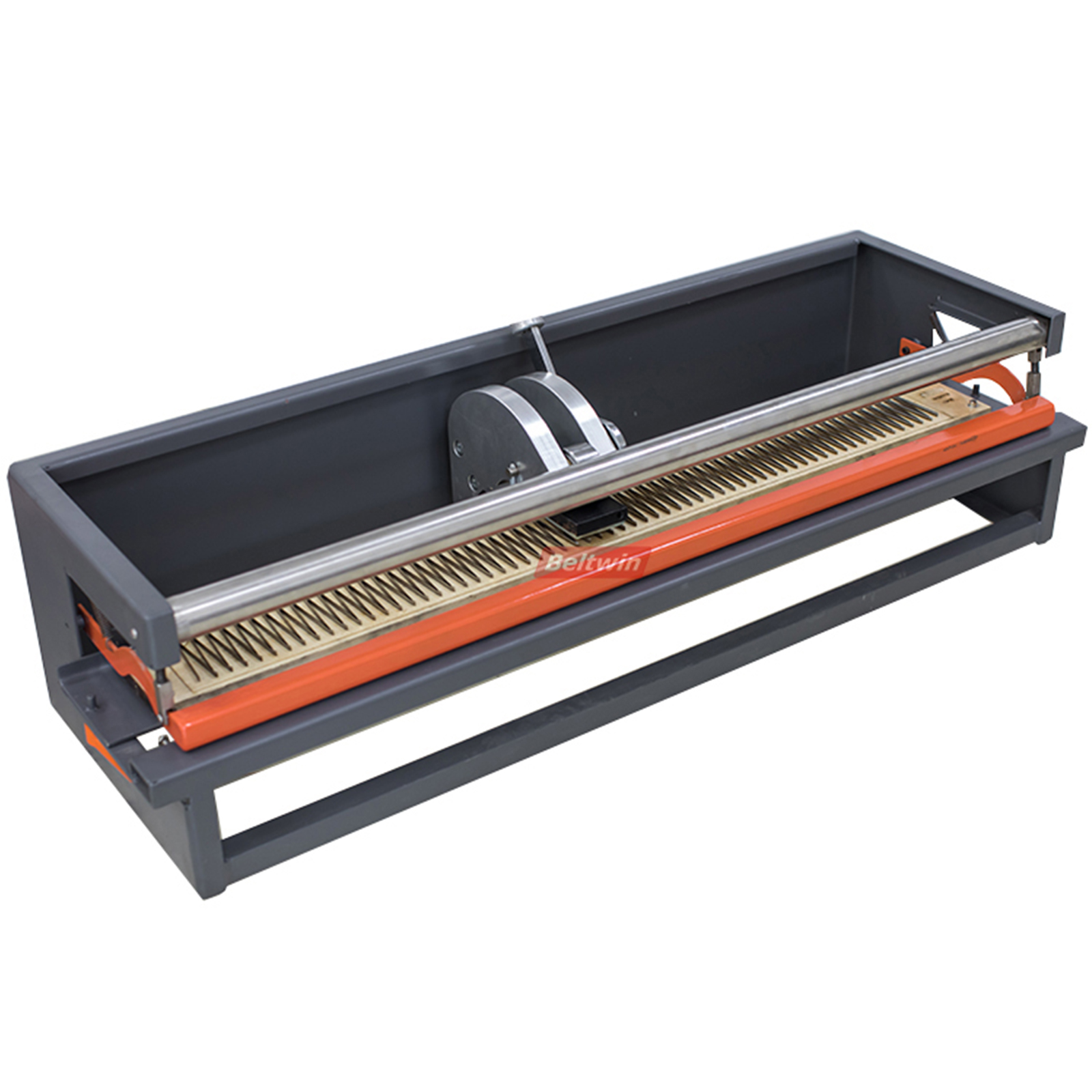

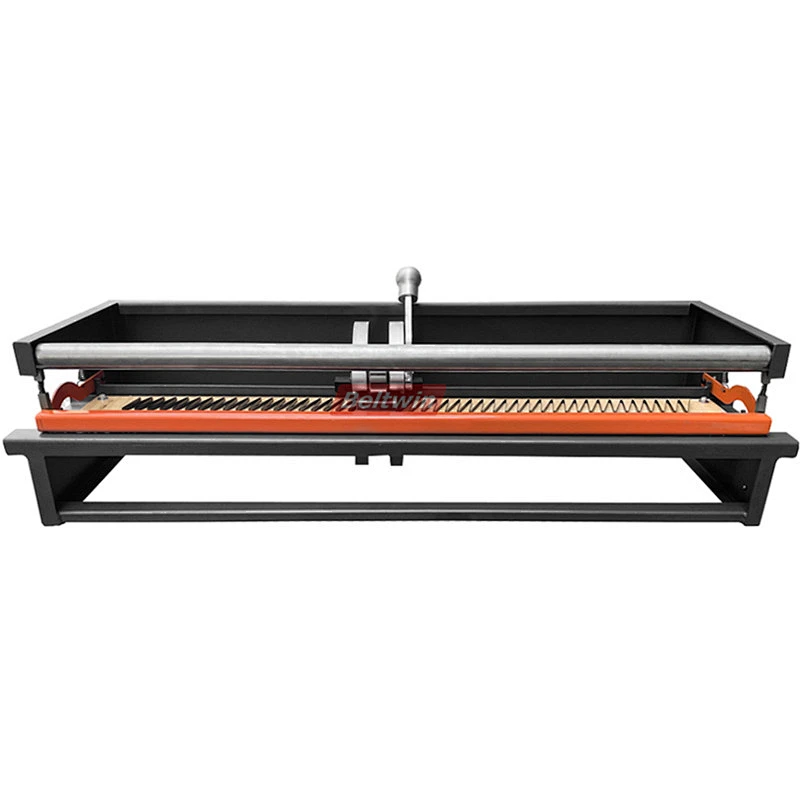

Manual Finger Puncher TC300-1500

Light weight and Portable Conveyor belt finger Punching machine for site use

Product Information:

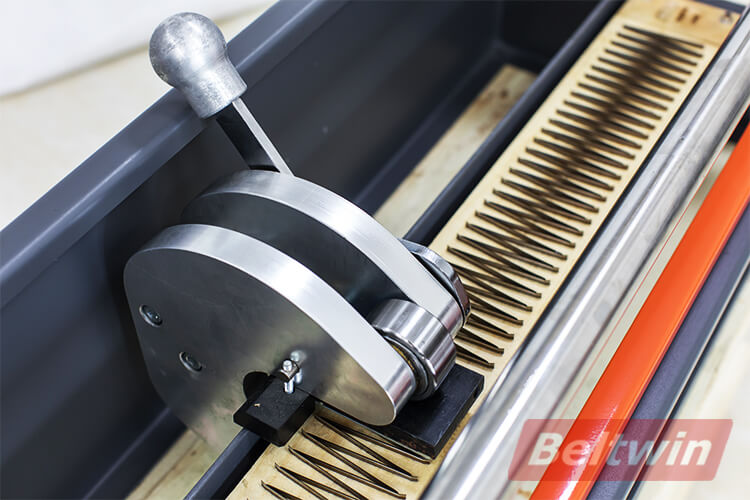

1. Punching System: Mechanical punching (manual operation)
2. Moving System: Manual
3. Belt width: Open construction make it possible to punch wider belts. Punching area: 300mm (12″) to 1500mm (60″)
4. Machine Material: Steel
5. Max belt thickness: 5mm
6. Electric connection: No electricity or air compressor required

Options:

1. Cutting board (20x50 15x75 etc. also can offer diamond design and inclined finger)

Specifications:

• The newest manual finger puncher, have different models width from 24″ (300 mm) to 60″ (1500 mm) (no width limited), special width can make for you!
• Used for PVC PU belt etc.

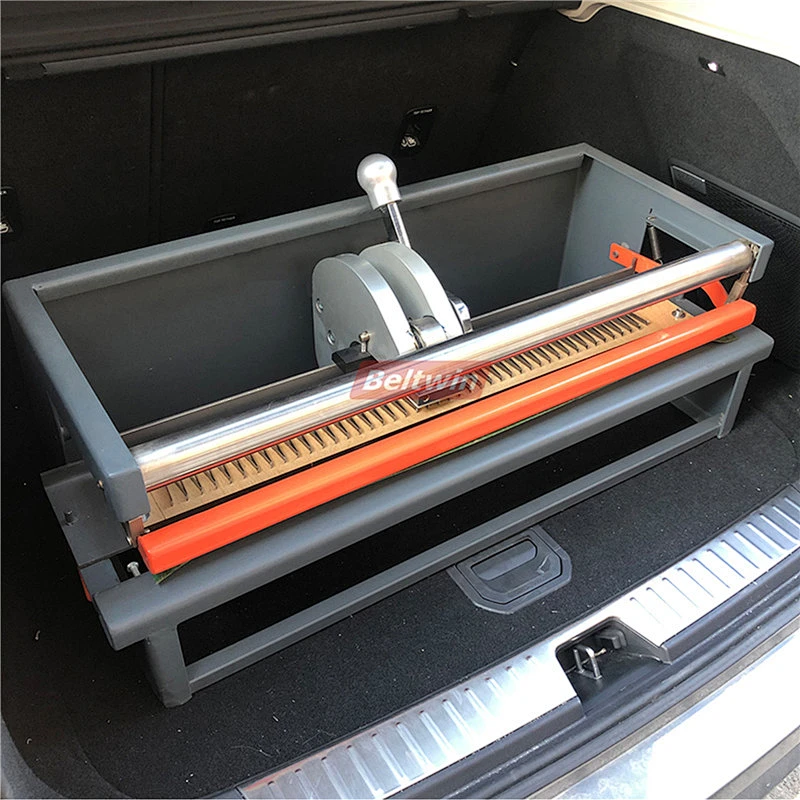

• Light weight and portable design, very good choice for outdoor work use, no need electric power, no need air compressor, no need bring hydraulic pump etc.

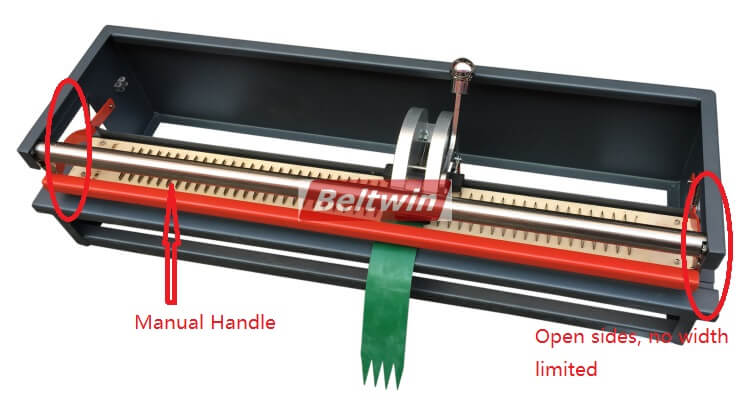

• Both side, open design, no width limited

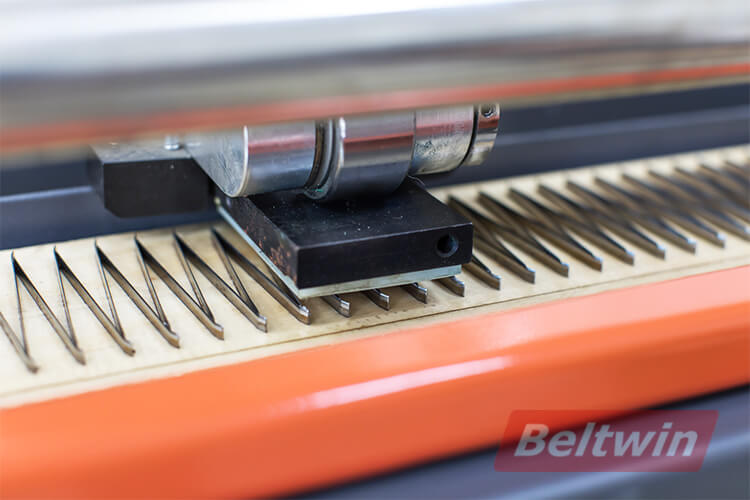

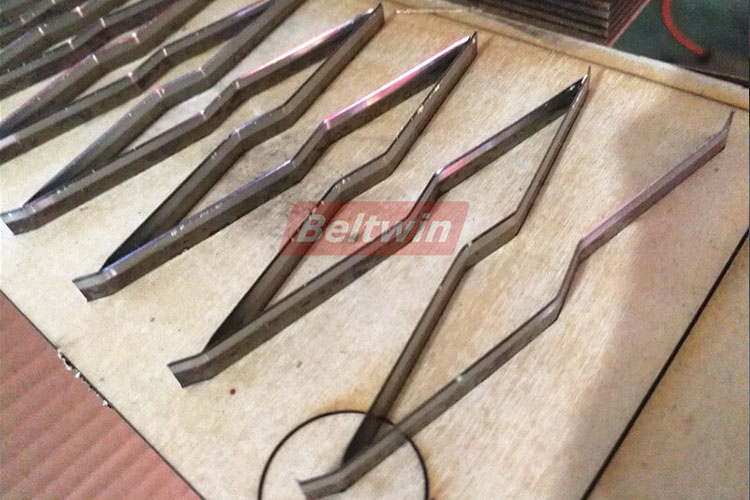

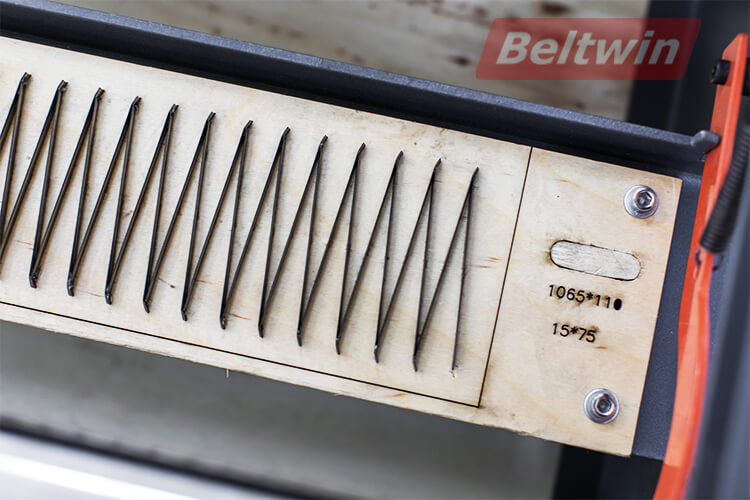

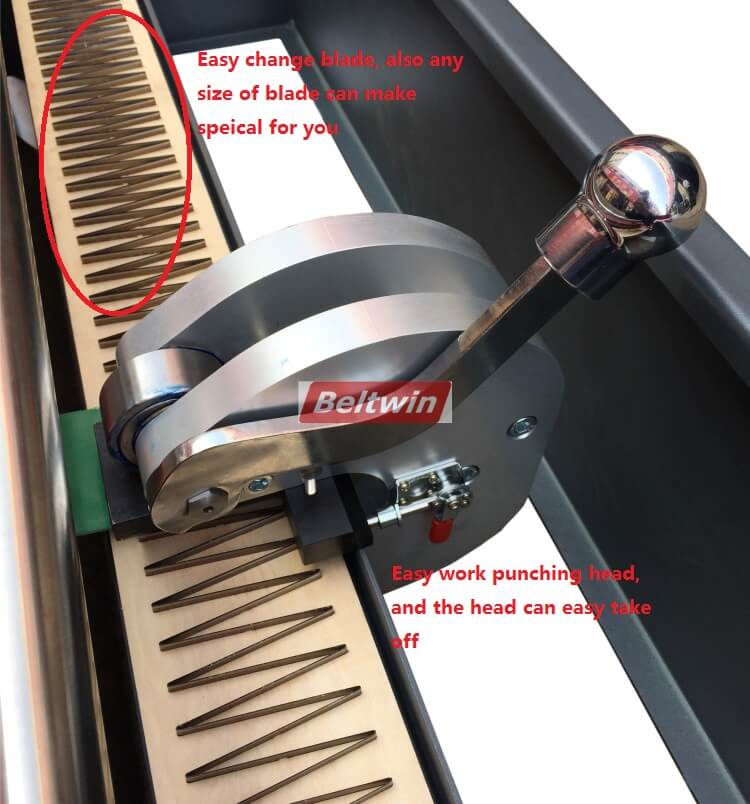

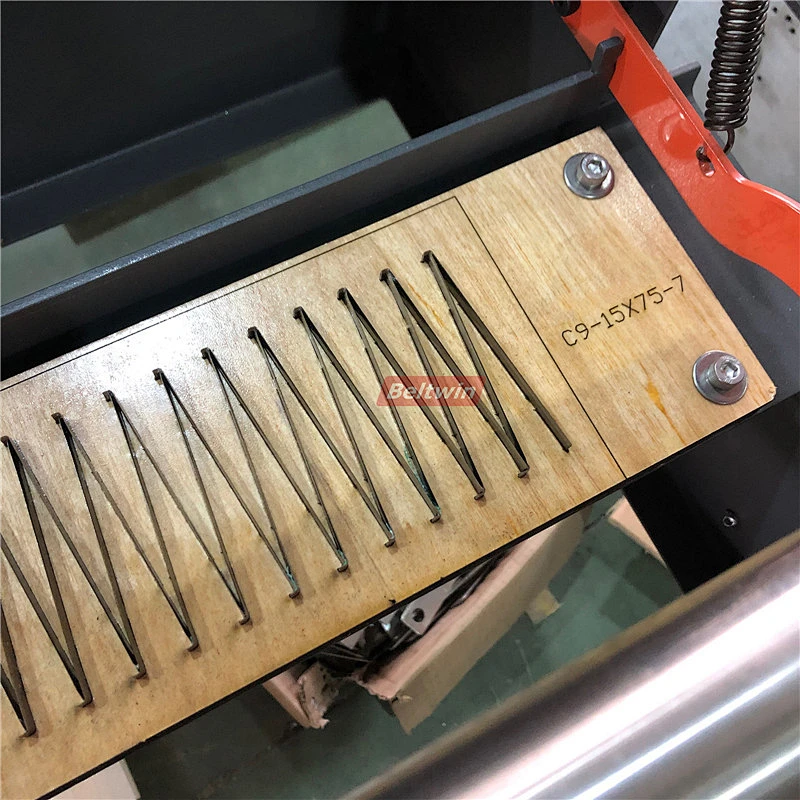

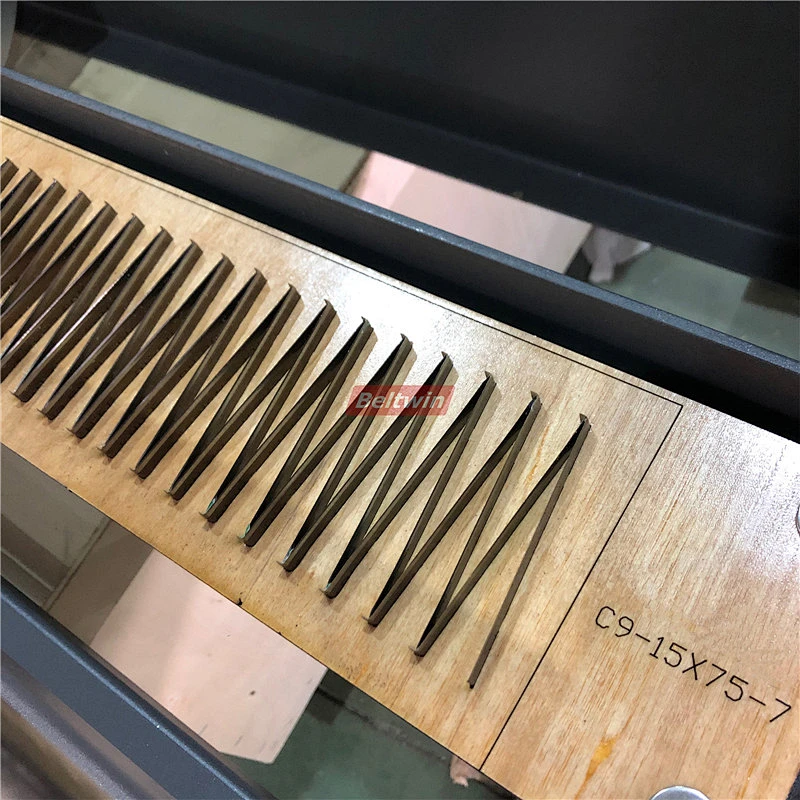

• Easy change the blade accords to work, also different blade size can make accords to your requirements (20×50,15×75,10×80,20×80 and etc., also round and sharp blade is optional)
• Special Fingers: Diamond Finger, Joint More Tighting

• Single finger splice & double fingers splice

Datasheet:

Main components:

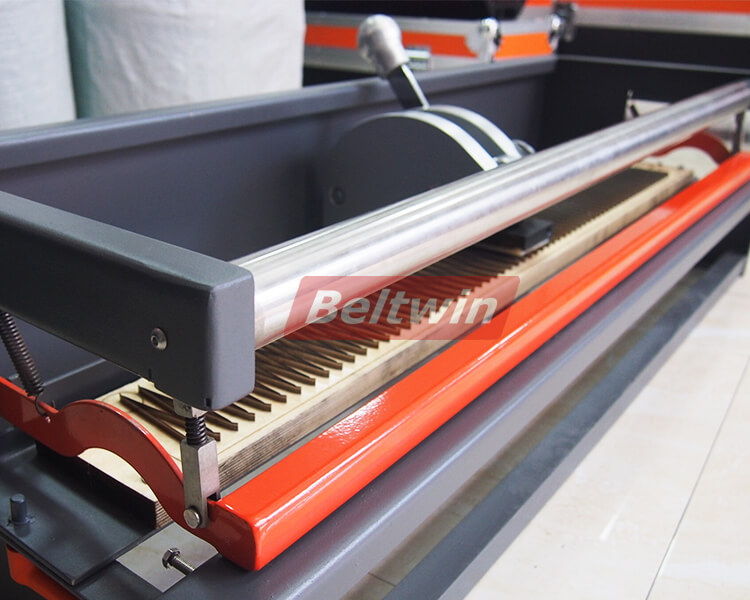

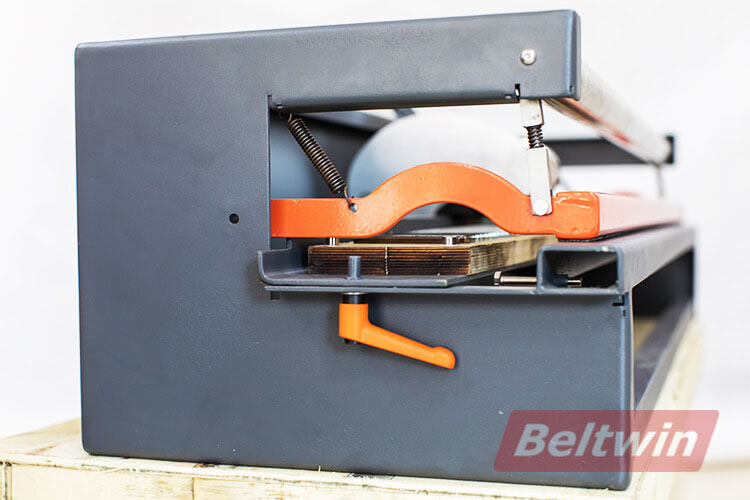

Use manual handle to fix the belt
