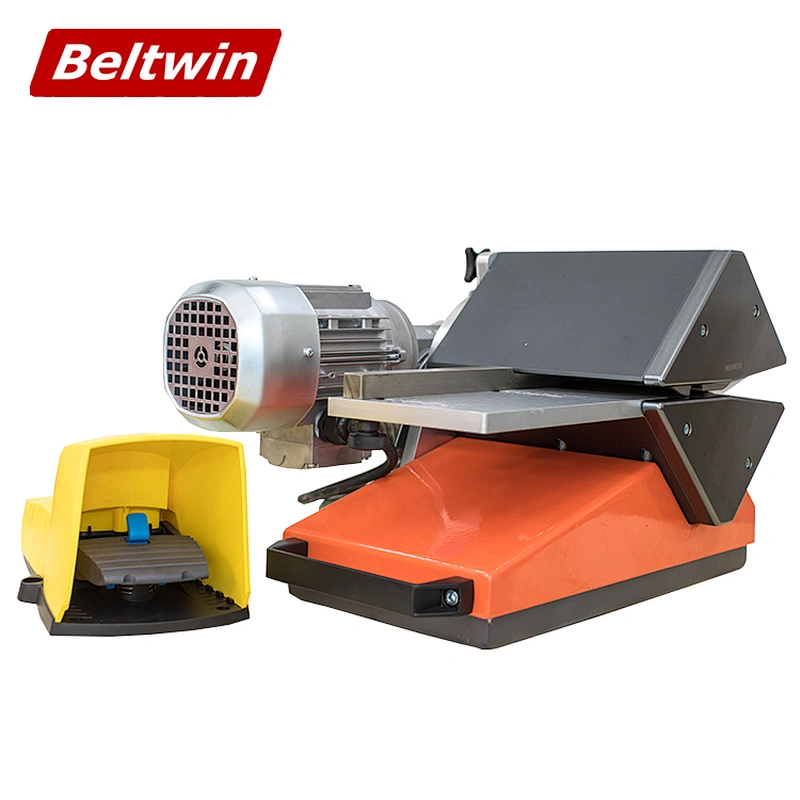

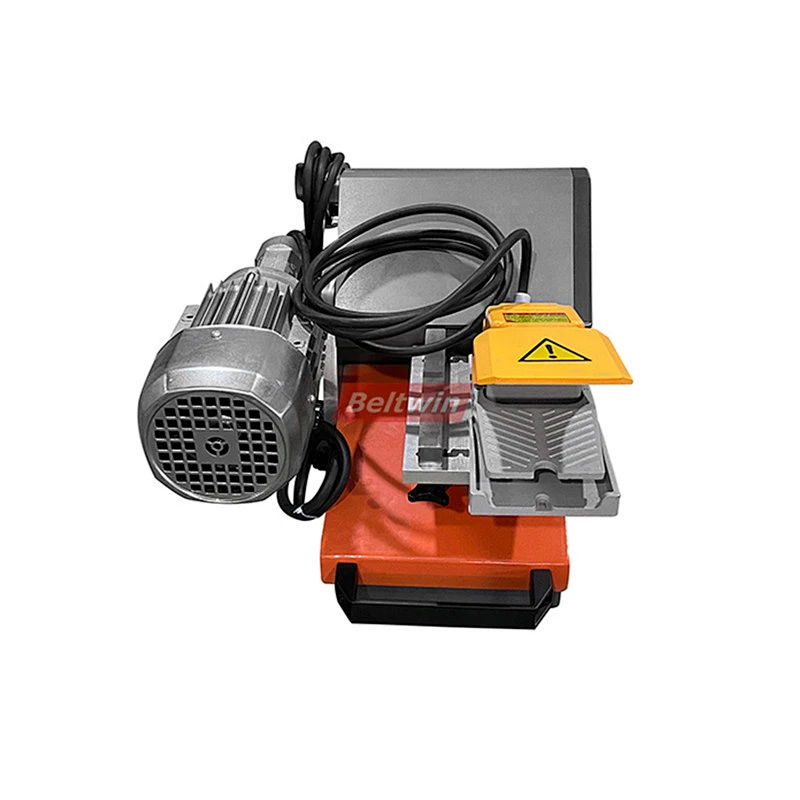

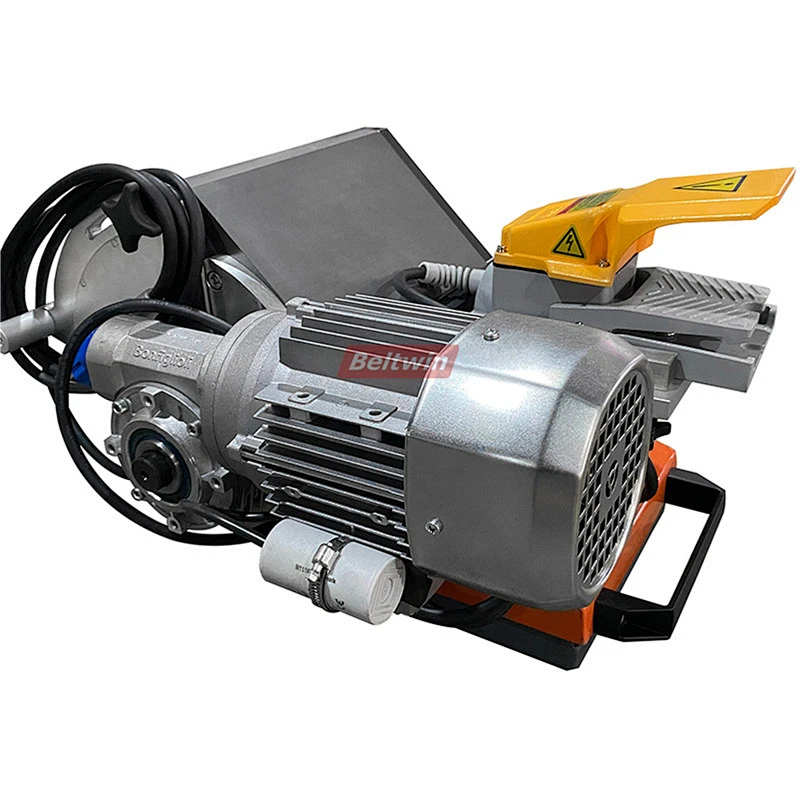

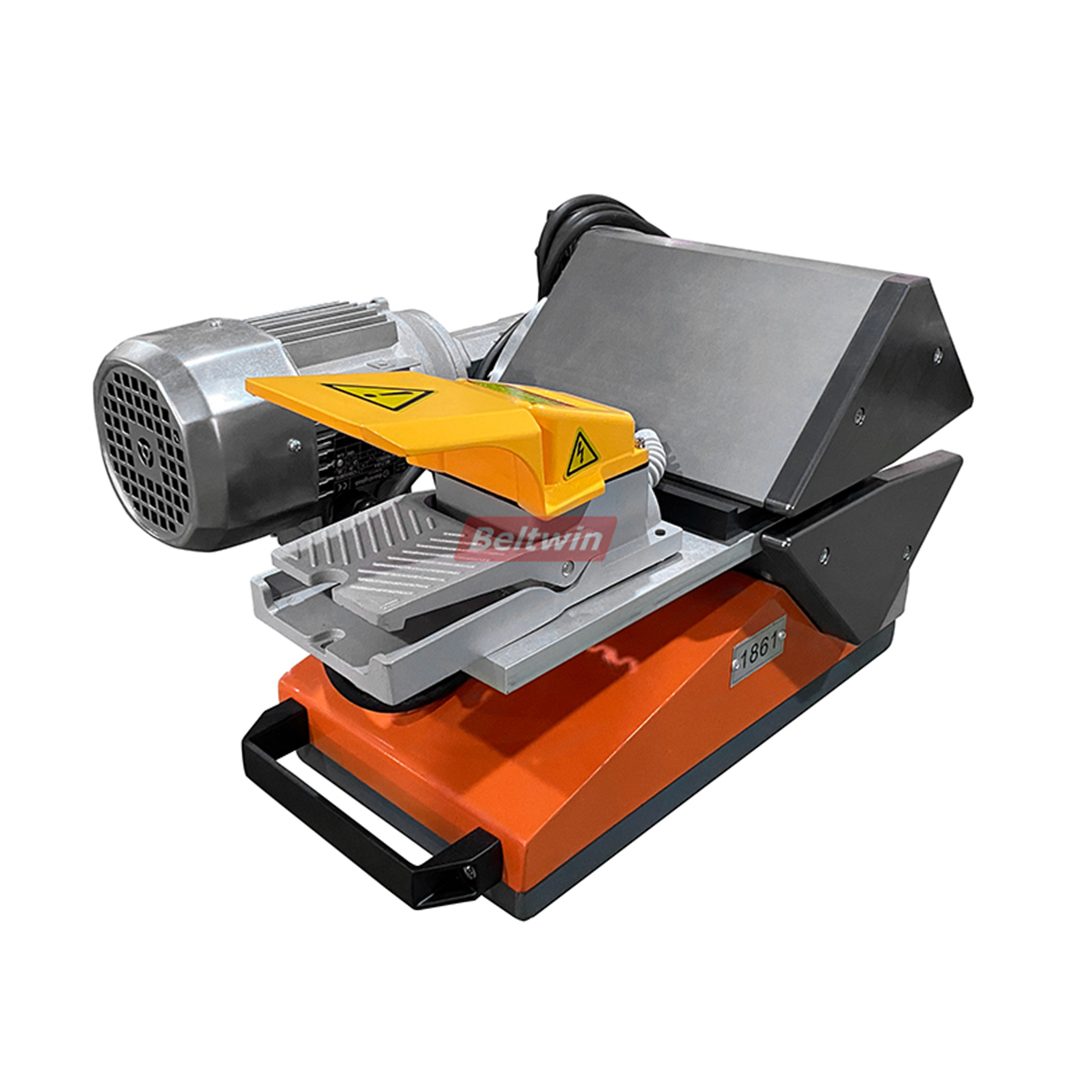

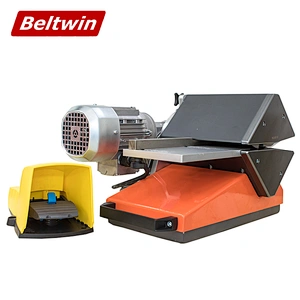

New Belt Ply Separator

New Belt Ply Separator SC130

Conveyor Belt Ply Separator designed to separate the fabrics for splicing at the ends of 2 and 3 ply conveyor belts for top quality splicing

Production Information:

1. Machine material: Aluminium structure
2. Split deepth 130mm
3. Split thickness: 1~15mm
4. Suitable Belt: PVC PU Belt, light duty rubber belt and homogeneous PU belt.
5. Motor Power: 0.37KW/50Hz
6. Electric Connection: 380V 3 phases, 220V single phase is available as request

Options:

1. Stand with wheels, easy to move at workshop
2. Step cutter is optional, can cut the separated cover directly after splitting

Specifications:

• To separate belt plies 2 and 3 ply conveyor belts

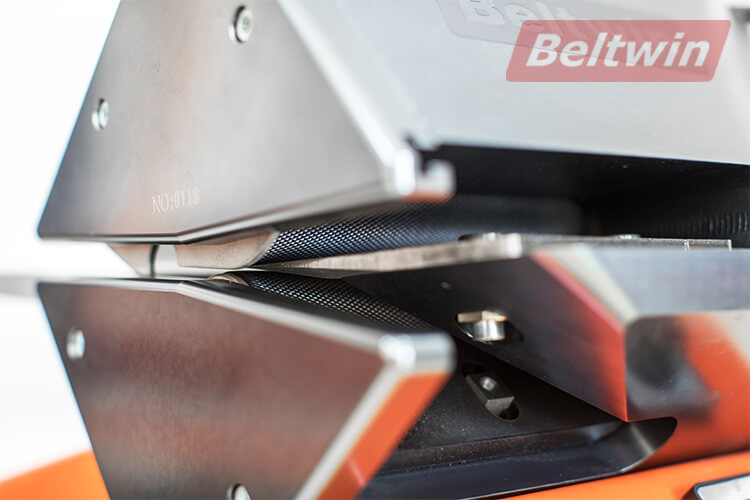

• New replacement Hard alloy steel blade
• For PVC, PU belts and rubber belts

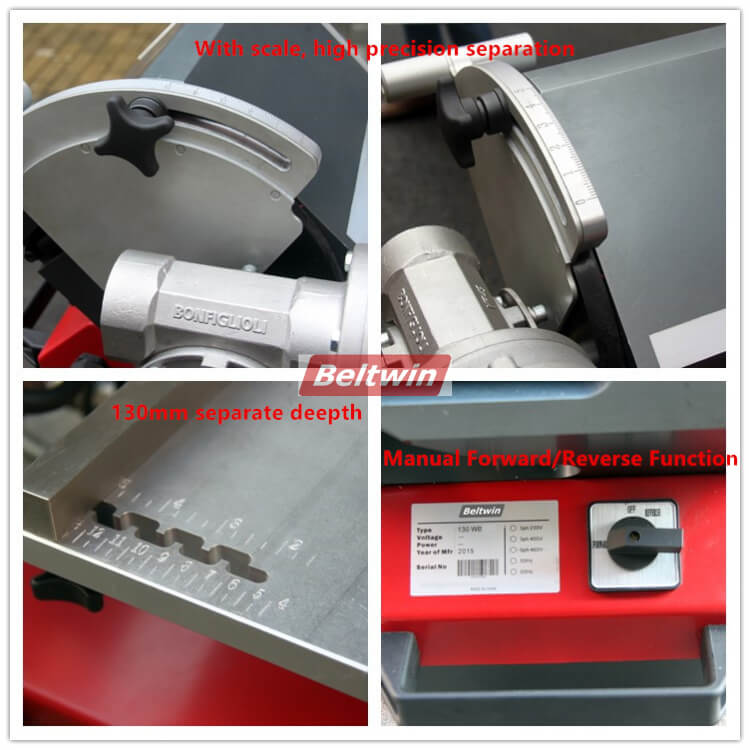

• With scale, high precision separation and easy work, high efficiency
• Foot pedal start / stop
• With cover, the worker can’t touch the blade, more safe when operation.
• Regulated adjustable blade position by means of a position scale.
• Reducer motor, 1370 r/min 50hz, 1660 r/min 60Hz, 1.07A
• The pulling roller exerts pressure on the belt via a air spring, thus ensuring even pressure on the belt.

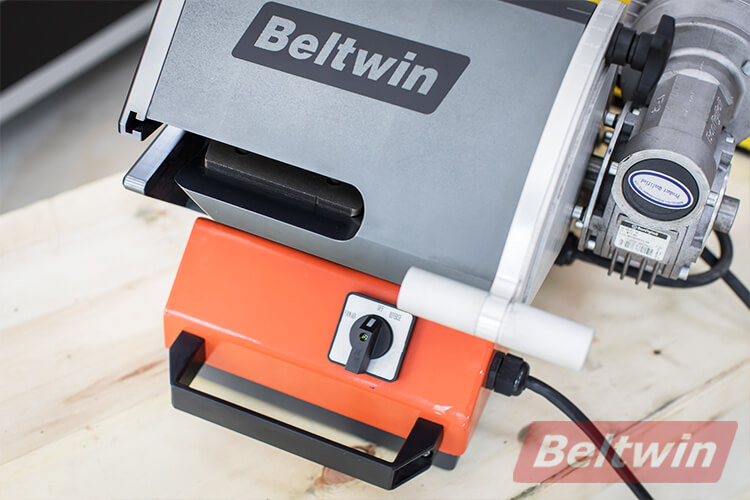

• Can turn both forward and backwards - useful should it be necessary to wind the belt back.

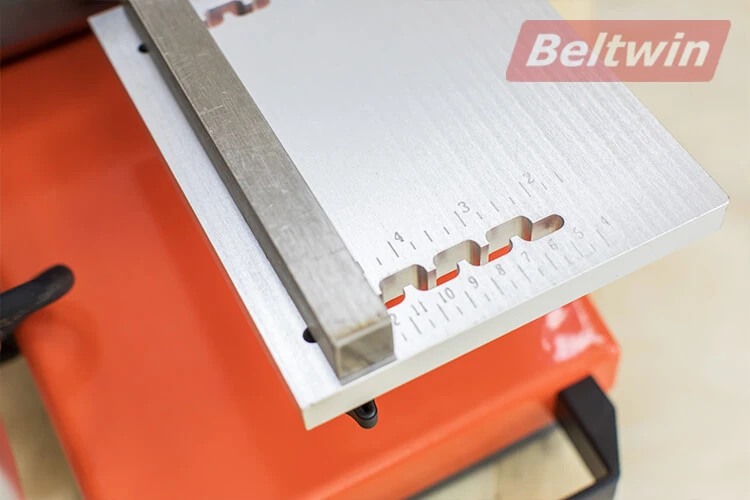

• Side guide for adjusting the width of the cut, with width scales
• Standard is 380V 3phase, Available with all power sources

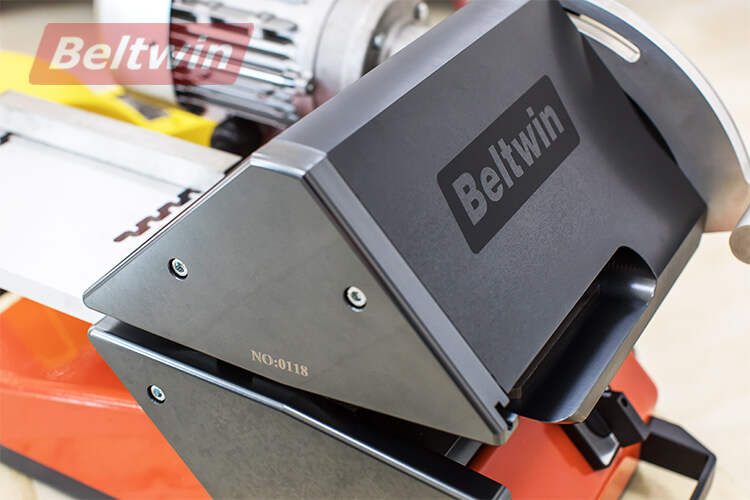

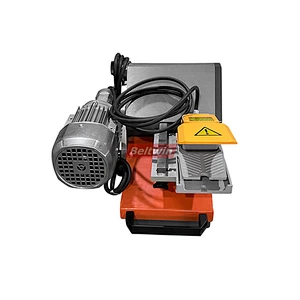

Main Components:

Optional accessory:

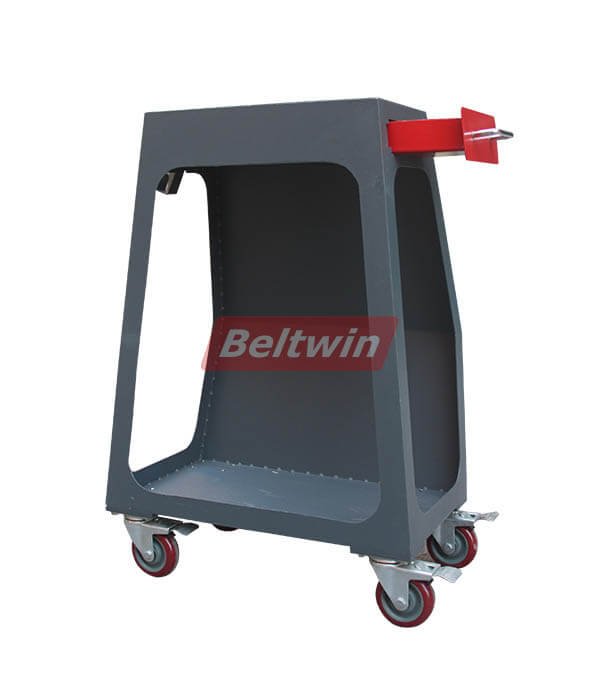

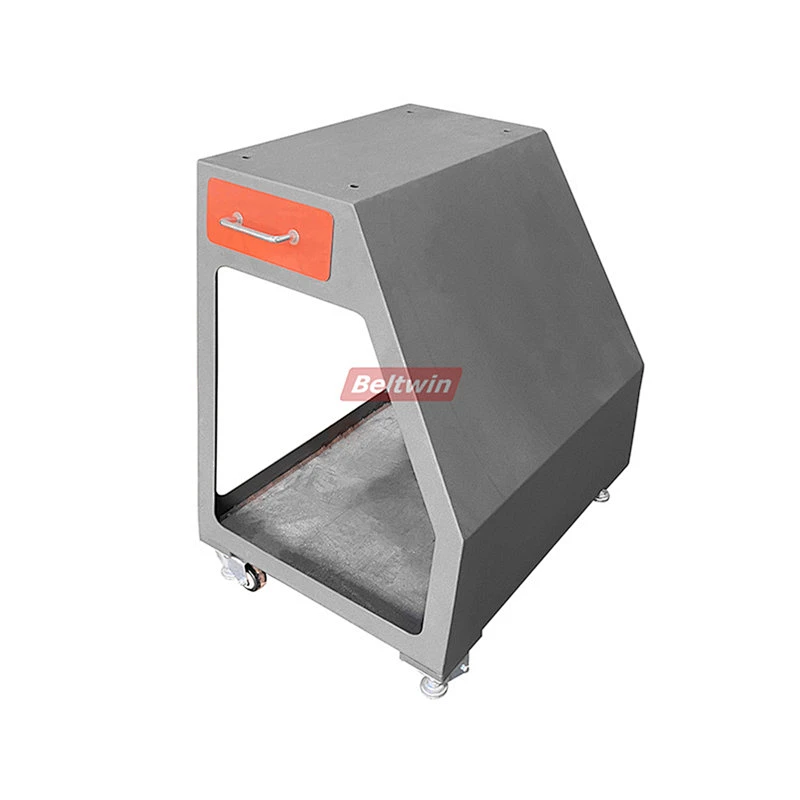

Working stand:

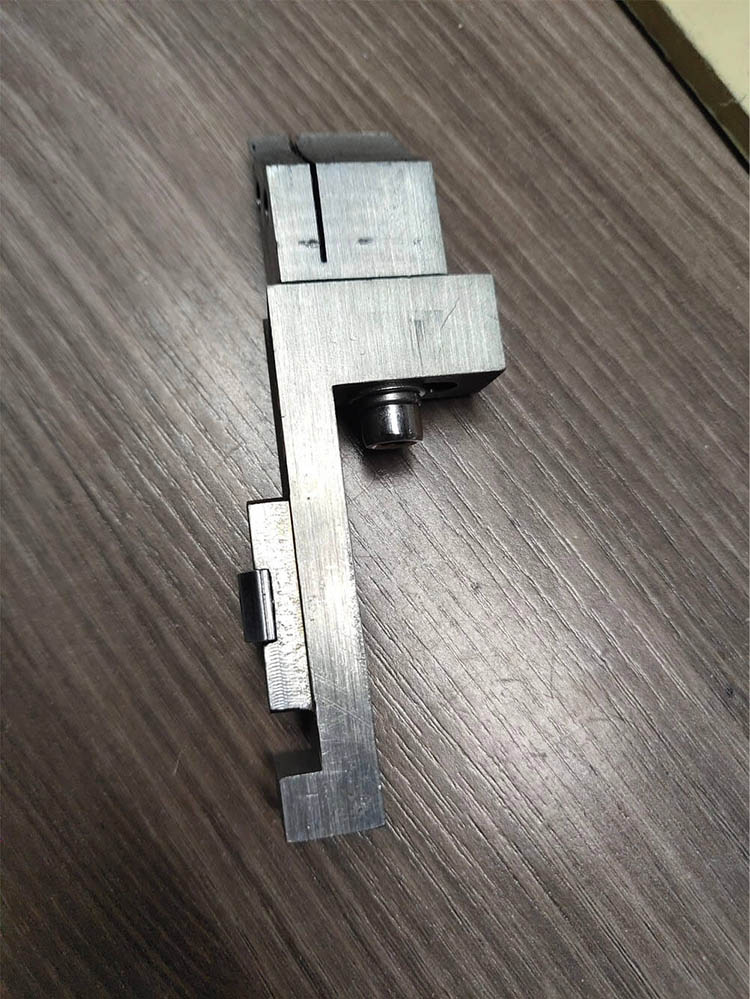

Step Cutter:

Separator operation:

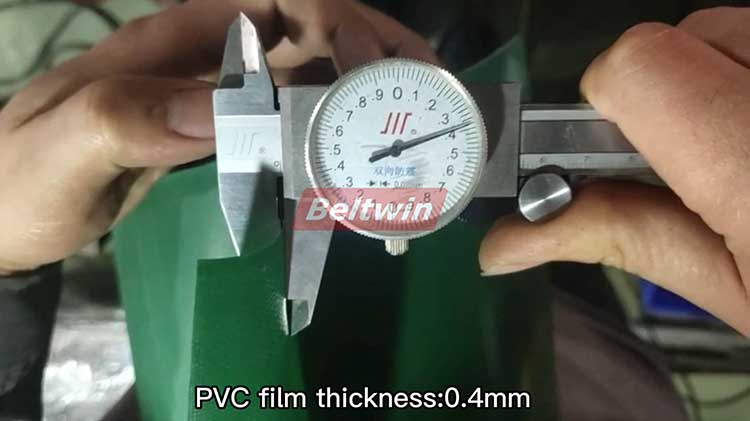

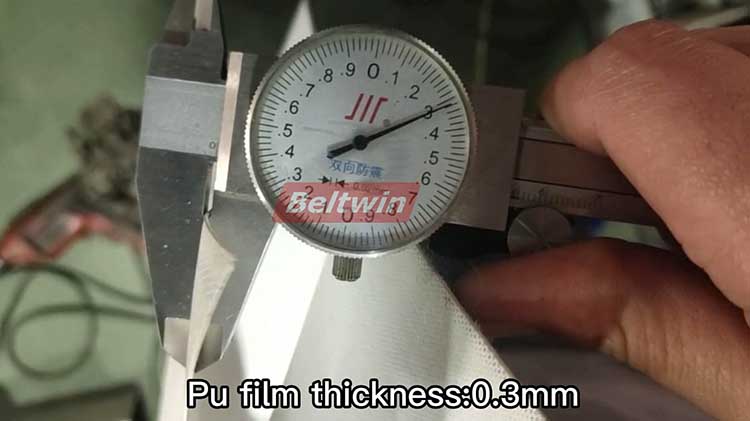

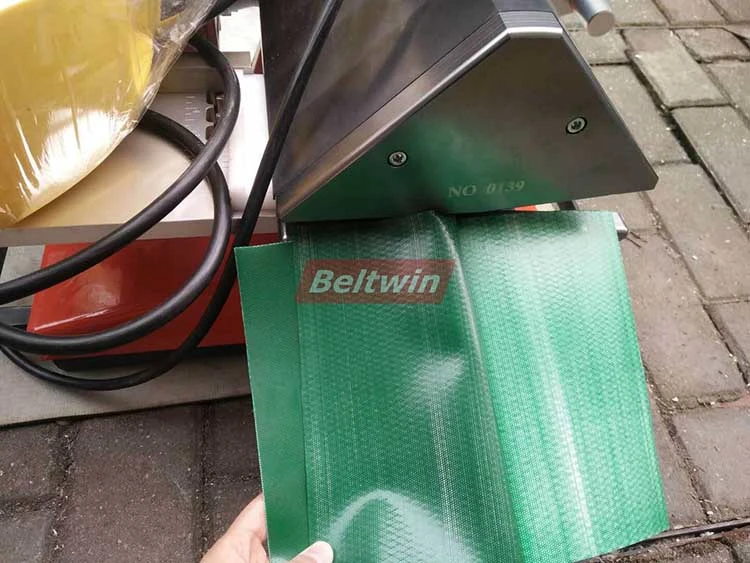

Separating effect for 0.3-0.4mm PVC and PU film

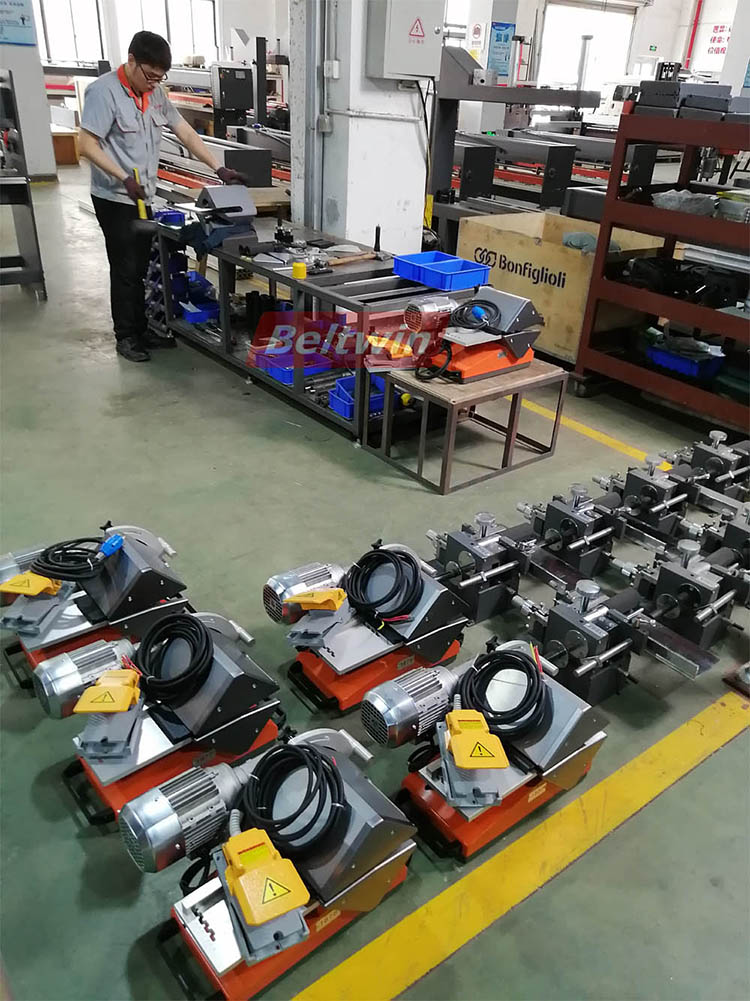

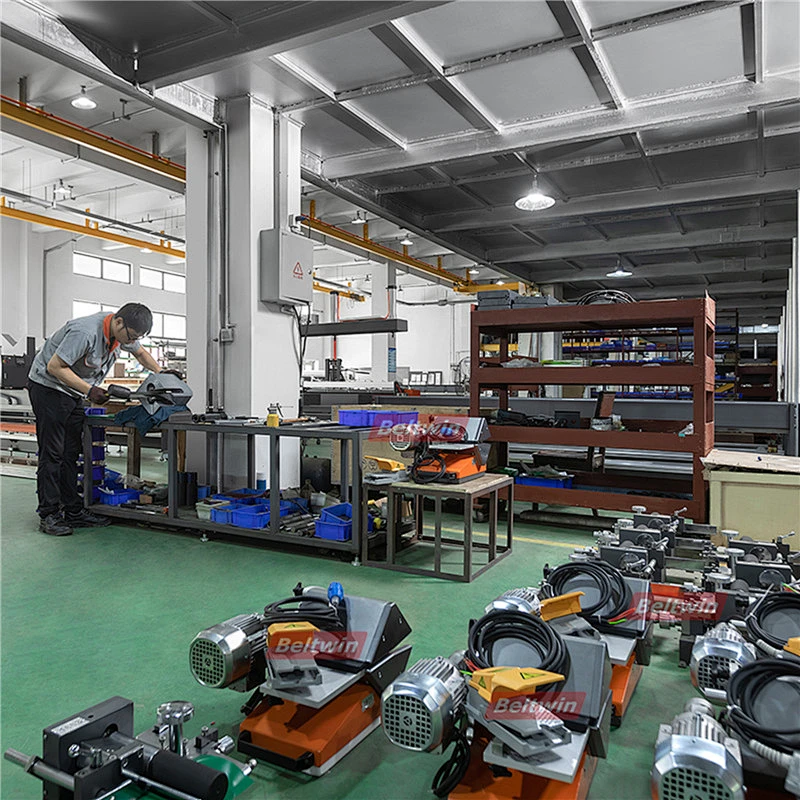

Machines in stock:
