Semi-Automatic Belt Finger Puncher

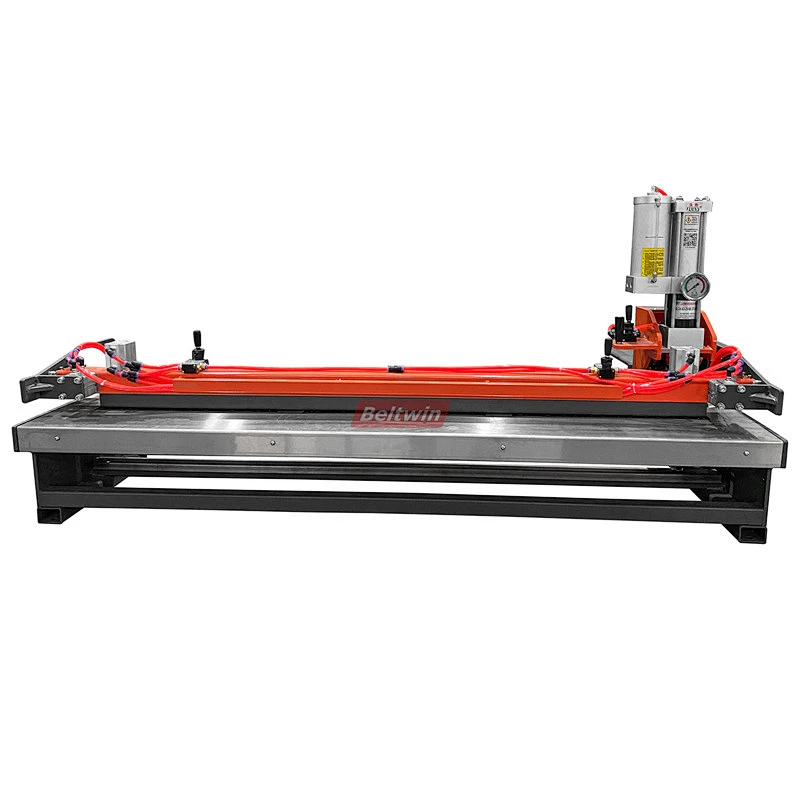

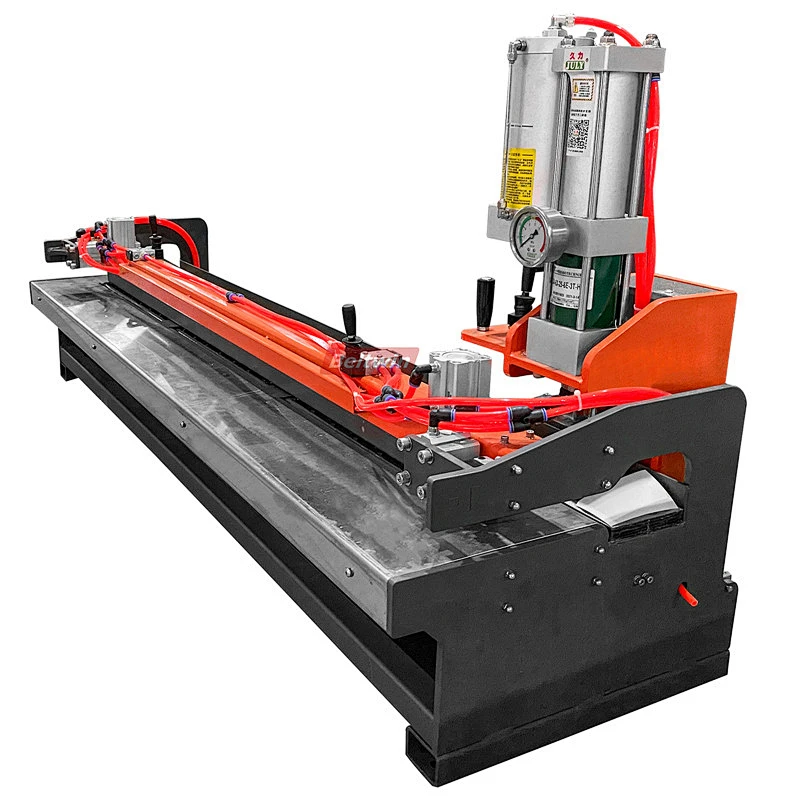

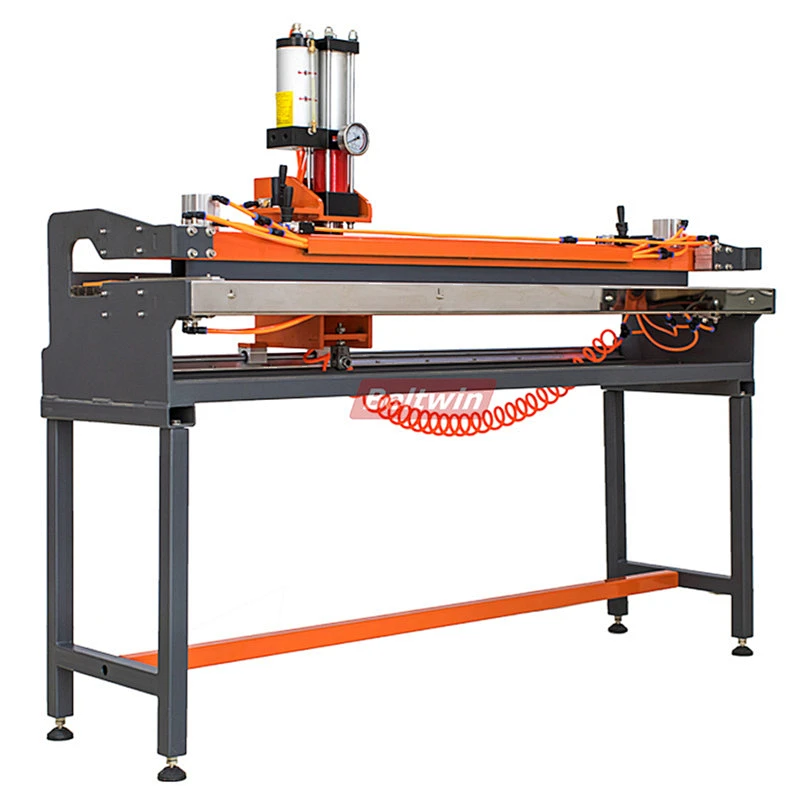

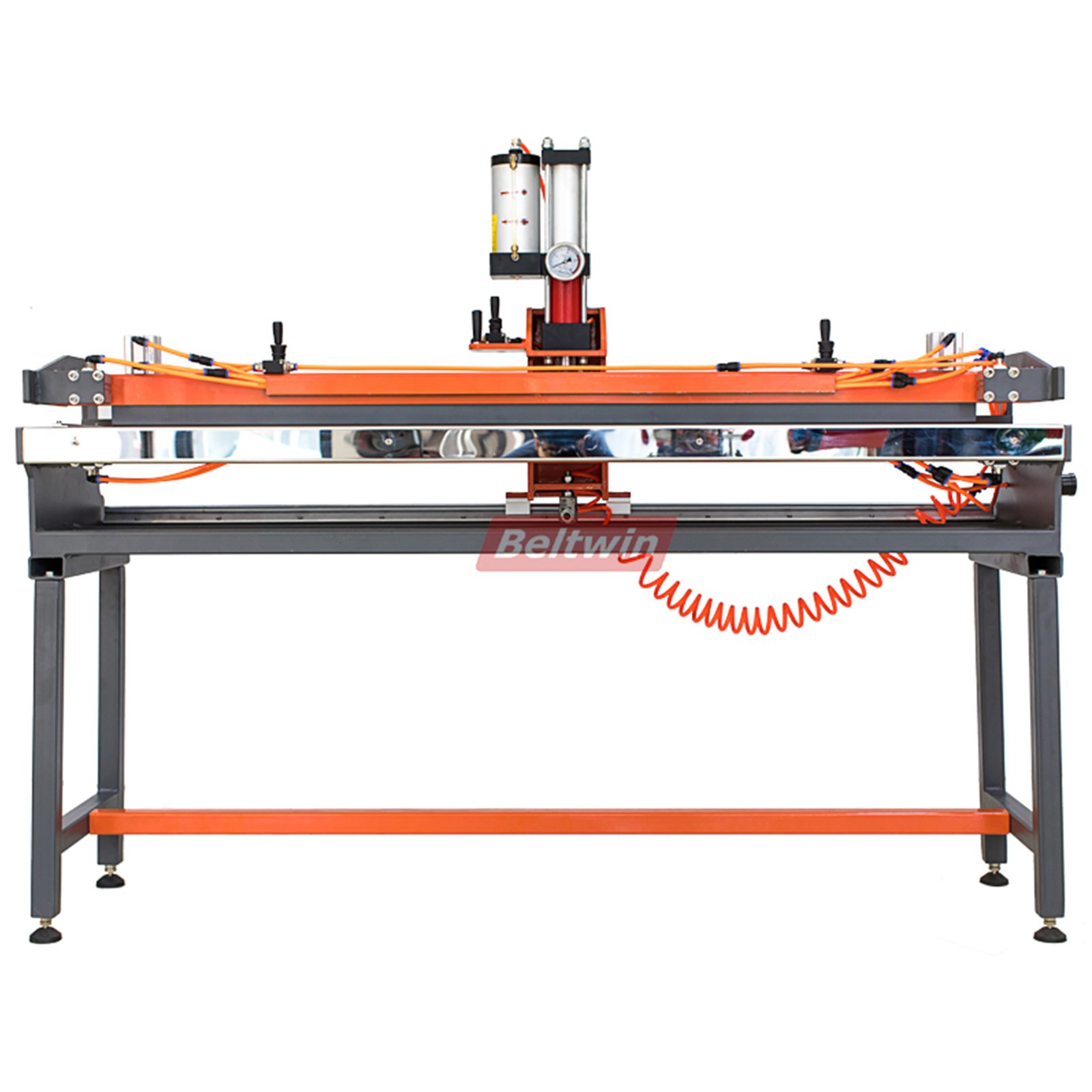

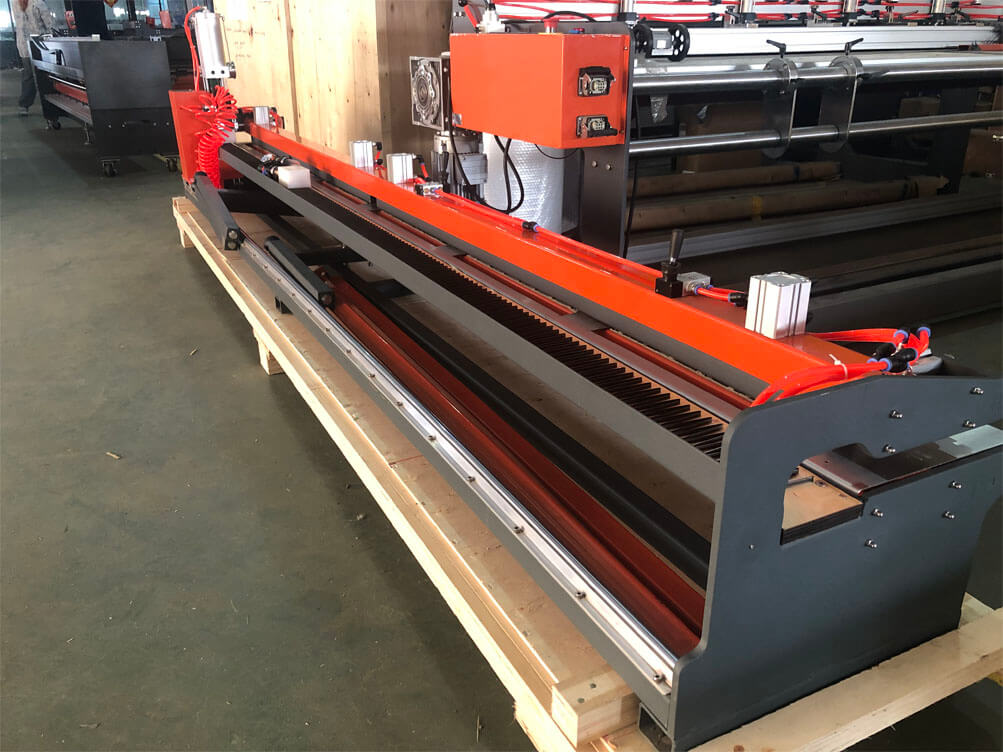

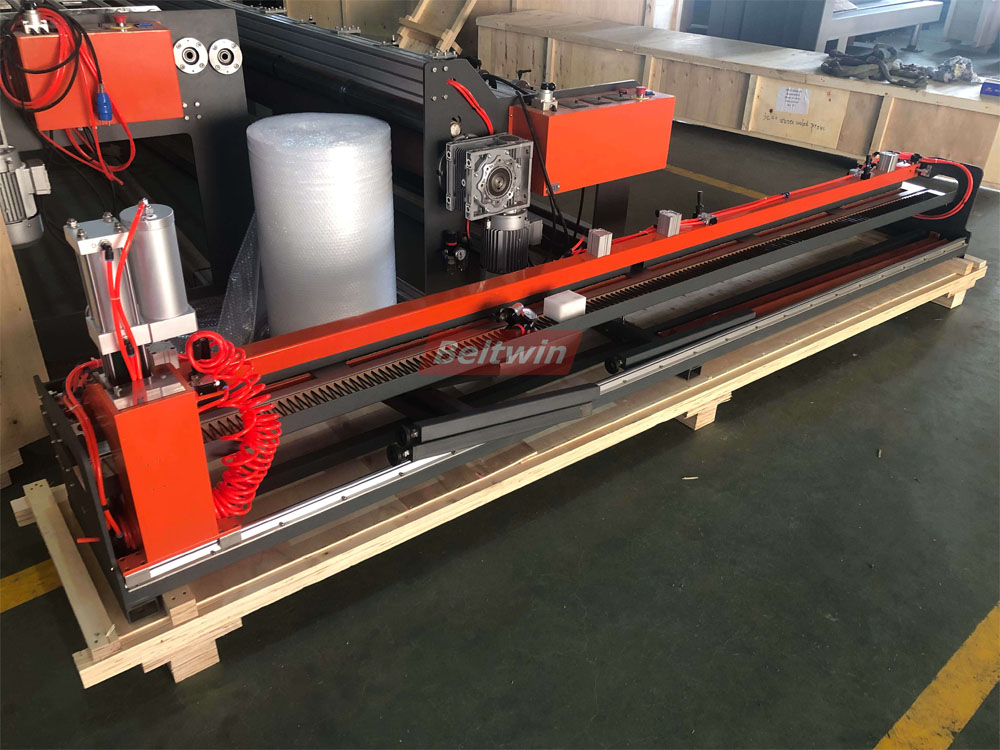

Semi-Automatic Belt Finger Puncher TA1000-3000

Suitable for prepping single finger and finger-over-finger splices for PVC and polyurethane belts

Product Information:

1. Punching System: Pneumatic
2. Moving System: Manual
3. Belt width: no limitation, punching area from 1000mm (39”) to 3000mm (118”)
4. Machine Material: Steel
5. Max belt thickness: 5mm
6. Electric connection: No electricity required

Options:

1. Cutting board (20x50 15x75 etc. also can offer diamond design and inclined finger)

Features:

• For PVC and polyurethane belts
• No width limited, open construction, max upto 3.2m width belt. Standard type: 1600mm, also can make smaller 1000mm and wider 2000mm, (punching board suitable belt width)
• Upto 4000mm, can make special
• Wider working table, for 1600 type, the punching area dimension: 1650*50*20mm
• Semi-automatic and pneumatic

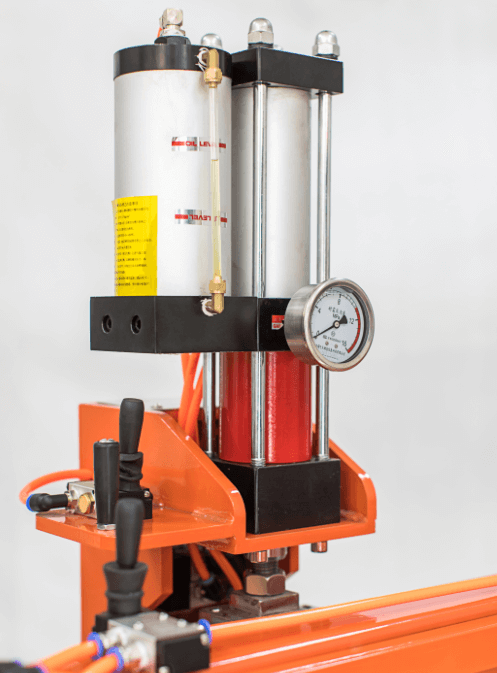

• Use Booster cylinder, high cylinder strength, work with high quality blade, punch belt completed at one time. 10 times higher speed than the old design.
• Precision moving and punching, use guide rail, can move smooth and easy to control the punching position.
• Can punching both single finger and double fingers, triple fingers (this machine makes it easy to cut finger-over-finger joints with a simple forward/backward movement of the belts)

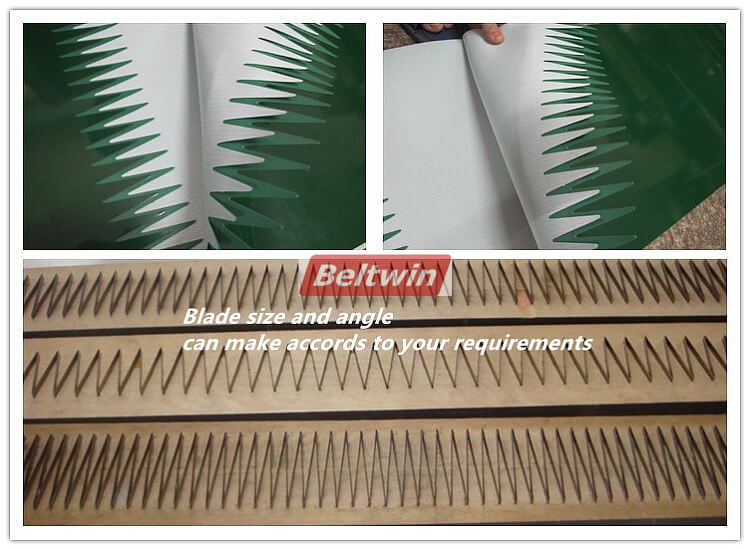

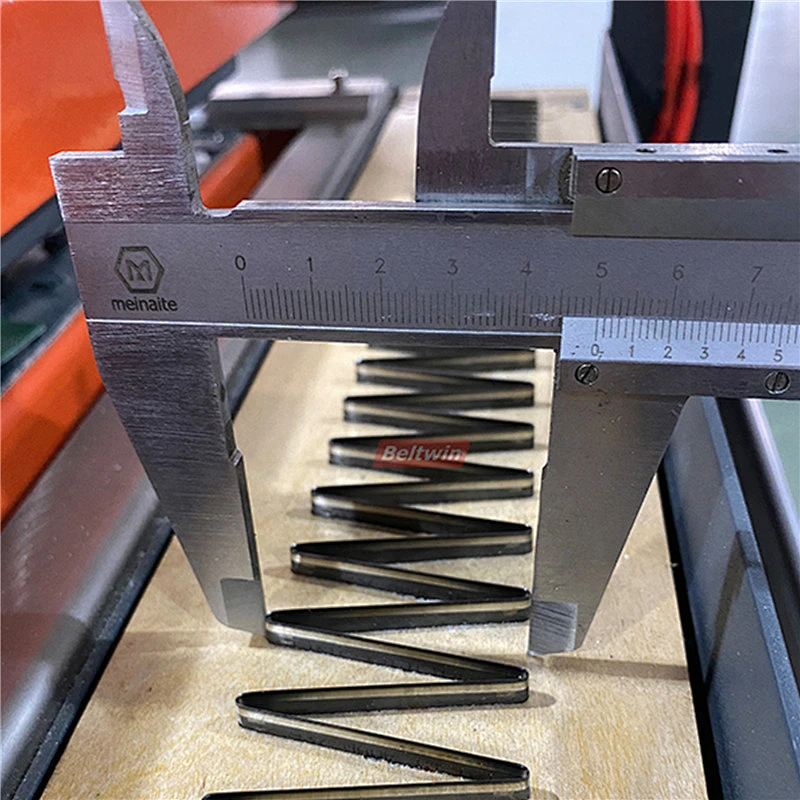

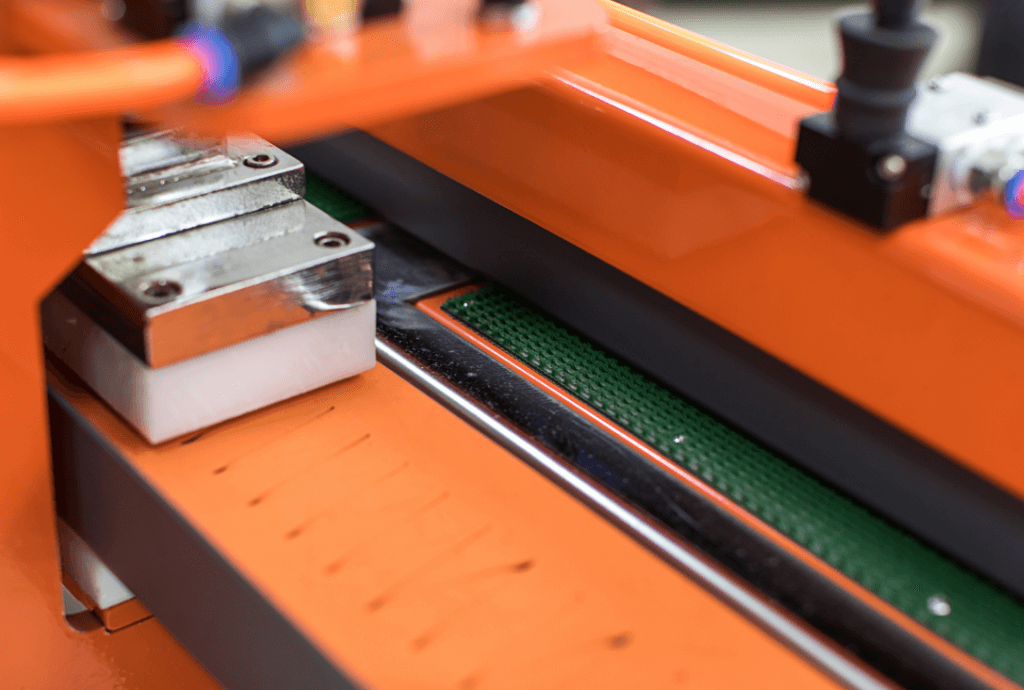

• Standard die blade size: 20*50mm, other dimension is optional: 10*80mm, 10*70mm, 10*80mm, 10*90mm, 20*80mm etc. Also have 2 type blade style for select, round blade and sharp blade..
• Fixed belt and move, use pneumatic cylinder system, when make double fingers ( Finger-over-finger) without the need to move the belt.
• Any other special requirements, pls freely to send inquiry to us.

Video for Semi-automatic Belt Finger Punch:

Main Components:

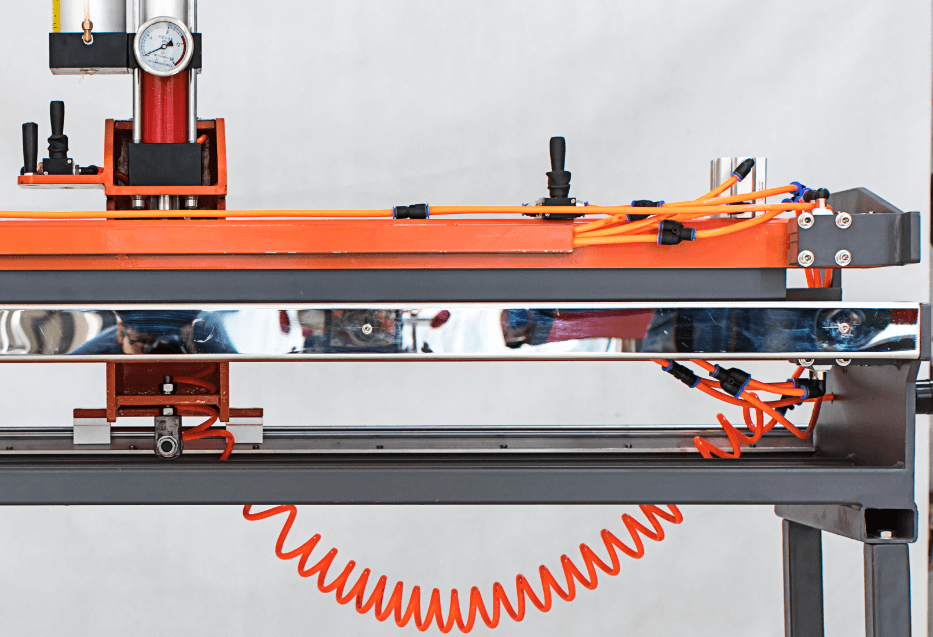

1. Guide Rail & Booster Cylinder

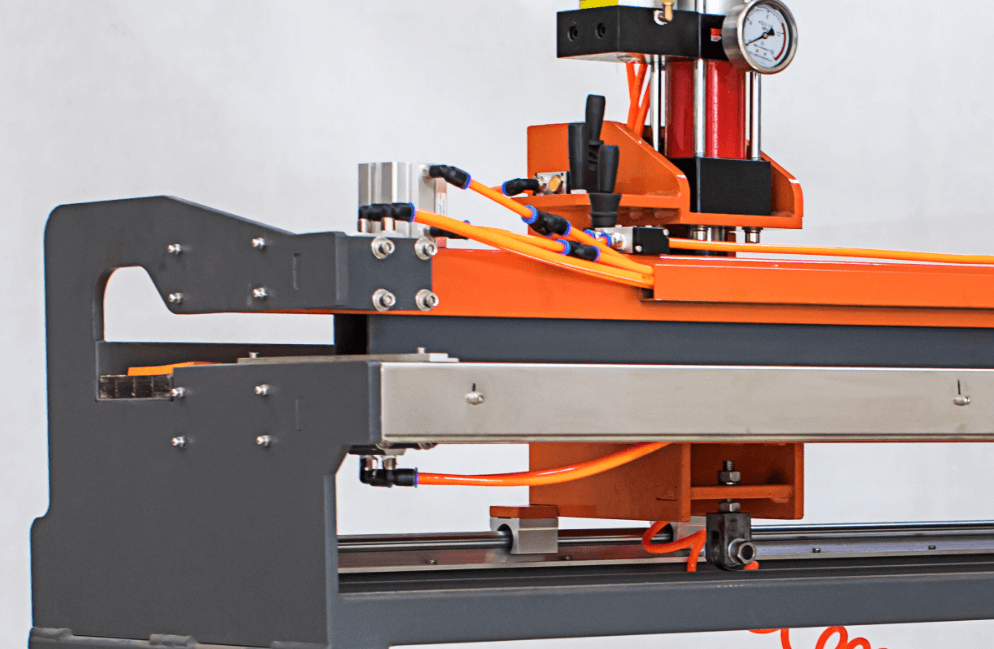

2. Two Pneumatic Cylinder Clamps to Fix Belt

3. New Structure: Wider Working Table and No Width Limited

Packing and delivery for Semi-Automatic Belt Finger Puncher:
