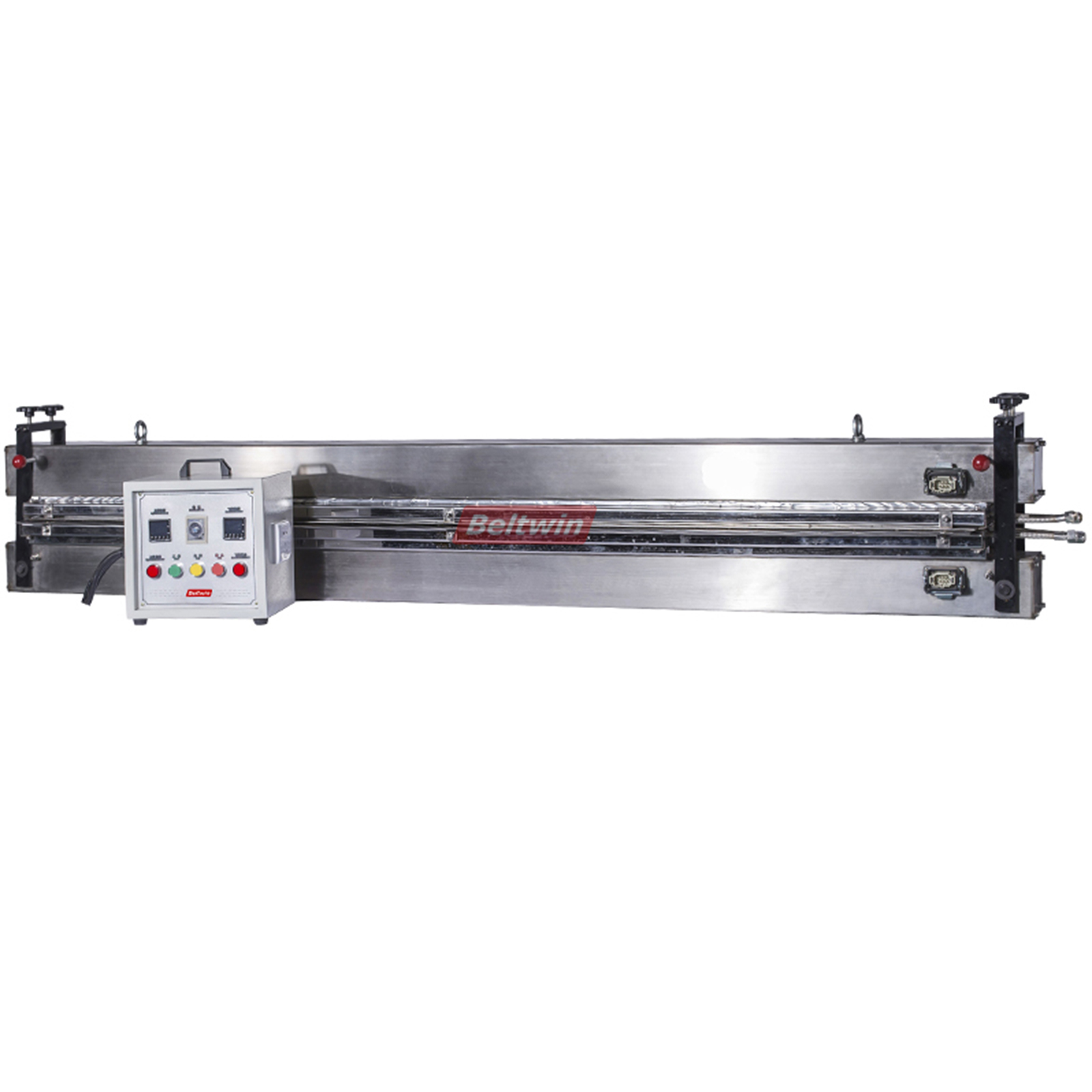

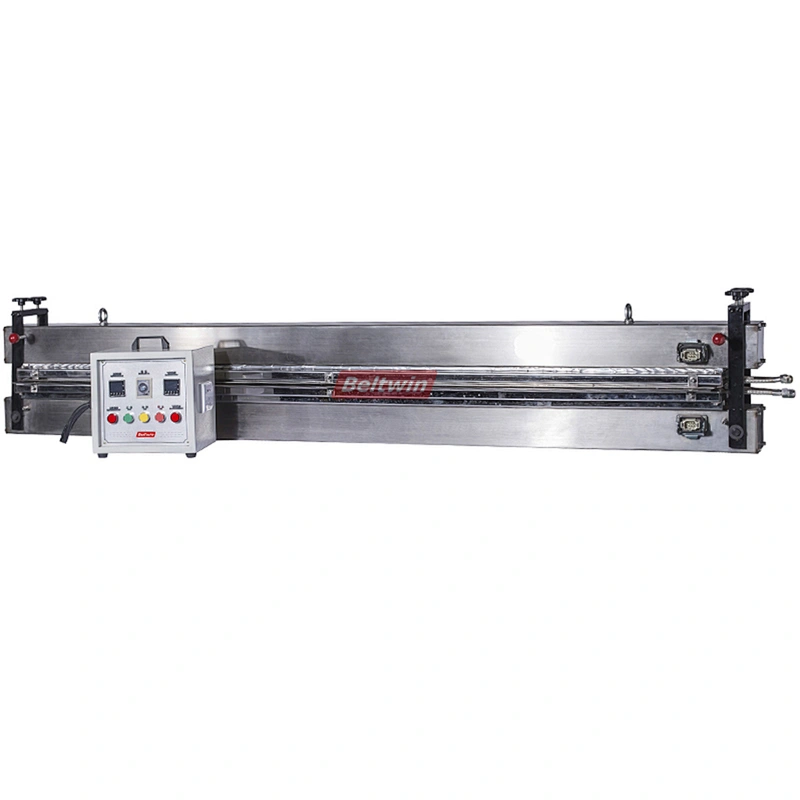

Water Cooling Belt Splice Press Stainless Steel Body PB600-1600

Water Cooling Belt Splice Press Stainless Steel Body PB600-2100

Stainless steel body hot press used for PVC belt, Polyurethane belt (PU belt) and Polyester Monofilament synthetic belting. Long life time and fast splicing.

Product Information:

1. Cooling: Water Cooling
2. Max Belt width from 19″ (500 mm) to 59″ (1500 mm)
3. Machine Material: Stainless steel
4. Working Pressure: 2 bars / 28PSI / 0.2Mpa, other working pressure available as request
5. Heating Effective width: 150mm / 200mm
6. Belt Clamp Bars included.

Options:

1. Support Stand (for workshop use), pneumatic lifting
2. Jointing Accessories, like PTFE film & pad, Silicone Pad-set, PVC/PU film etc. can help for better jointing. Please contact with us for details. We will offer you right solution.

Features:

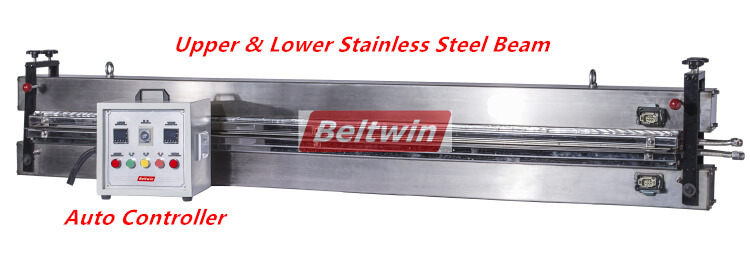

• Stainless steel body and heating platen
• Heating platen, heating area, width 150mm (if need 200mm, we have another type press)
• Different size for belt width from 500mm up to 2000mm (wider than 2000mm, we use Aluminum body)
• Used for PVC belt, Polyurethane belt (PU belt) and Polyester Monofilament synthetic belting

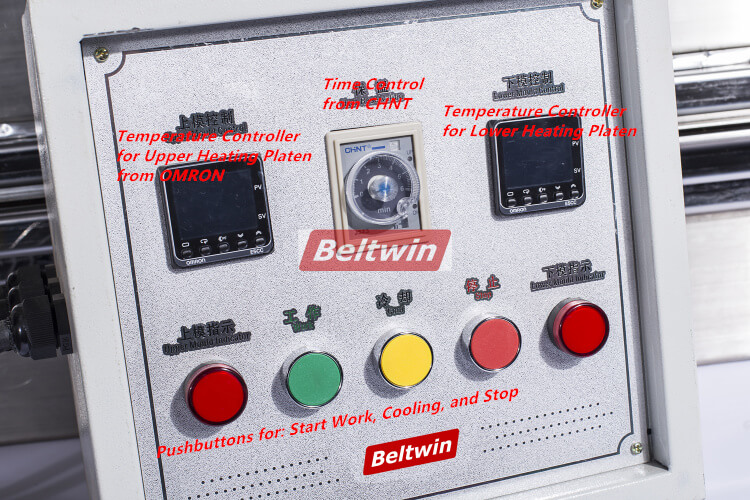

• Control panel with 2 pcs temperature controller, is independent control, upper or bottom heating plate can set different temperature accords to your requirements.

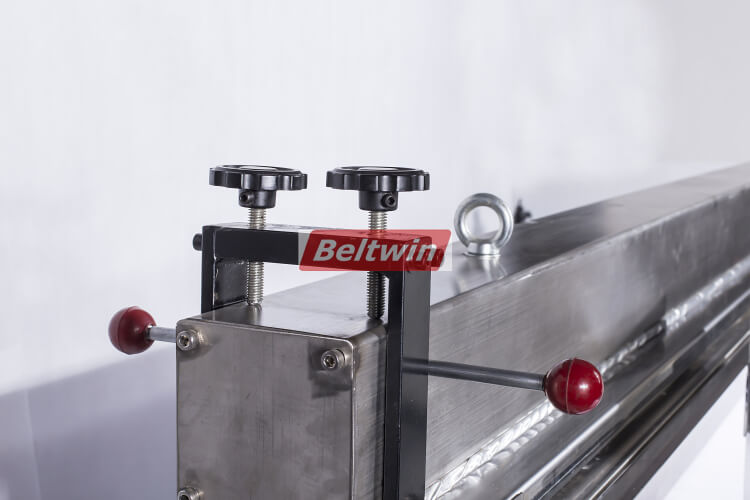

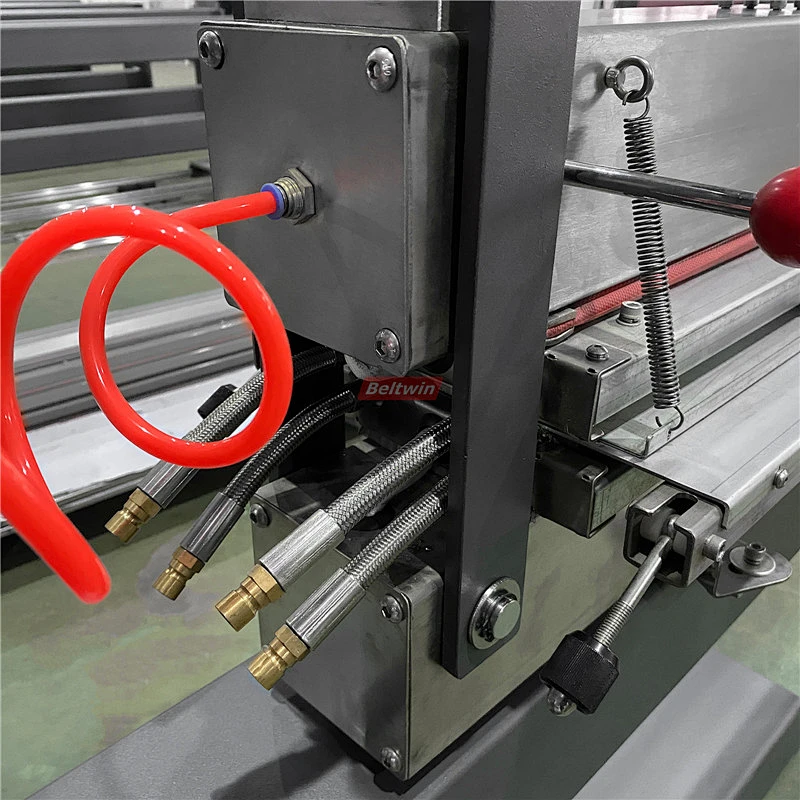

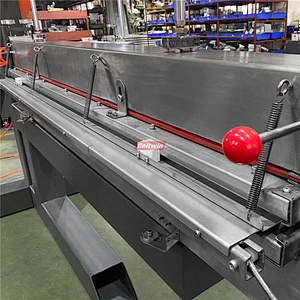

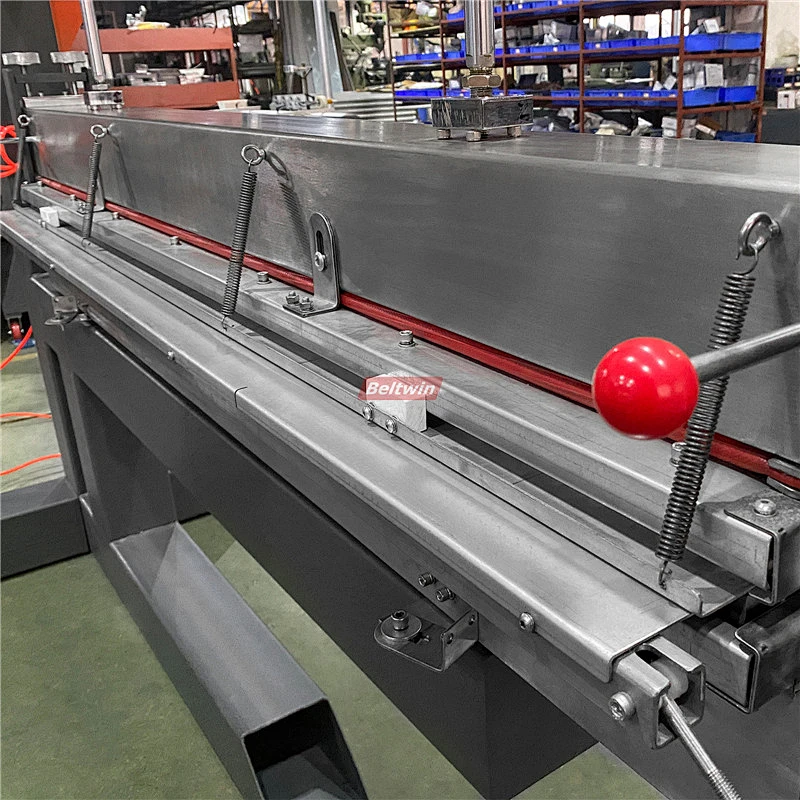

• With Belt Clamps, help to hold the belt.

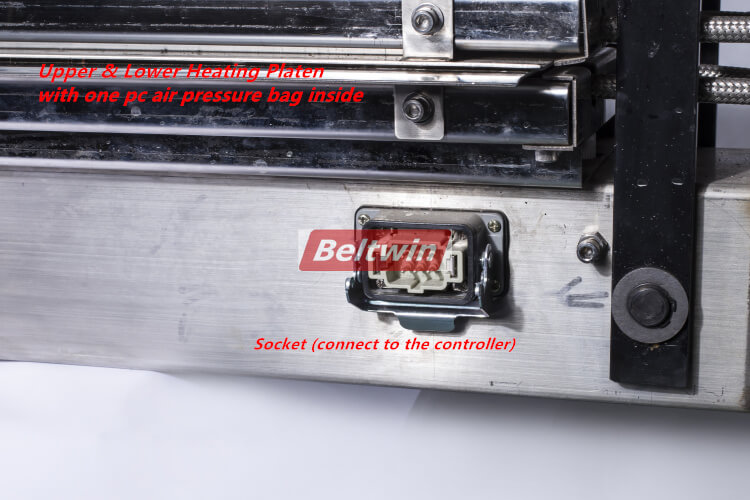

• Air bag (pressure bags)
• Air pressure
• Laser cutting Silicone Elements, more safe, is completed sealed, and easy for maintenance.
• Easy to use and assemble
• Light weight

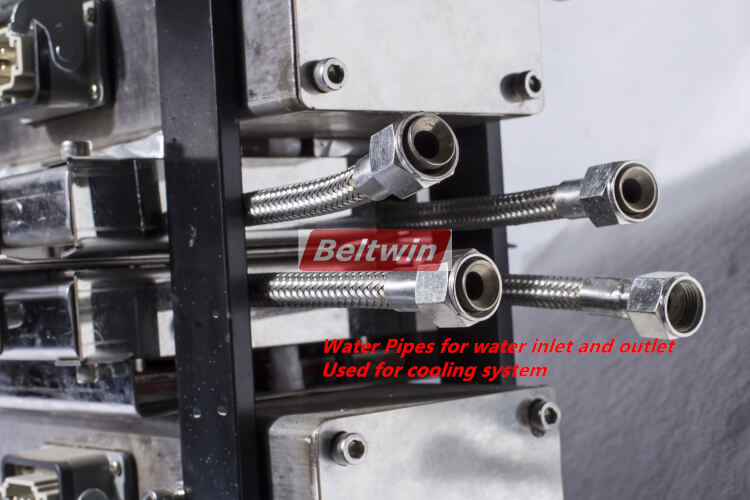

• Rapid Water Cooling system within platens
• Heating to 180℃,about 15~20 mins;180℃ cooling down to 60℃ about 3~5mins (accords to different size press), temperature error(on 650mm Up and bottom hot plate )is less than 3℃.
• Air pressure: 0~0.3 mpa
• Reliable and automatic Temperature Control Panel with time control.
• Include Water cooling pump
• With steel structure
• Standard width: 1.1m, 1.6m, 2.1m up to 4000mm, the max we made is 6000mm wide. Any special requirements pls freely to inform us.
• Voltage: 220V or 380V, if special voltage pls freely to inform us.
• If the press is required for workshop use, Opening system & steel support is Optional.

Technical Datasheet:

Reliable and higher quality temperature controllers, from OMRON Japanese Brand. One of the most famous electric brands.

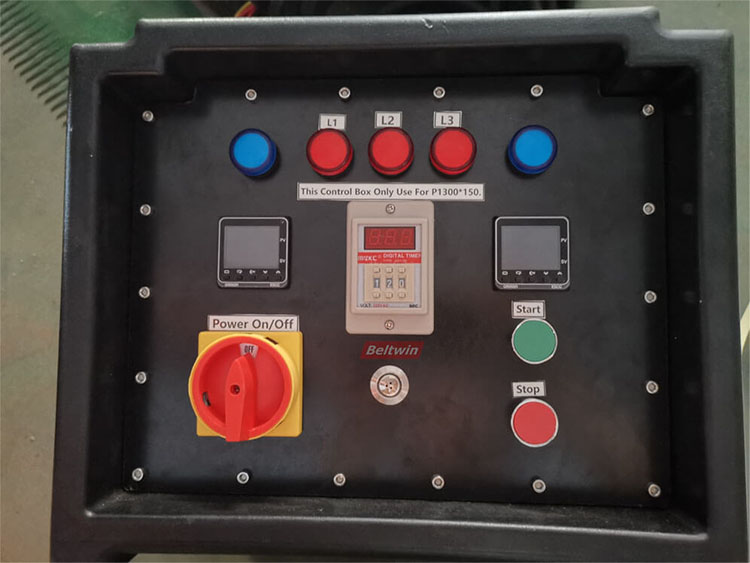

European Standard Control box also available, All electronics approved by CE. If you come from Europe or USA et. Better choice for you.

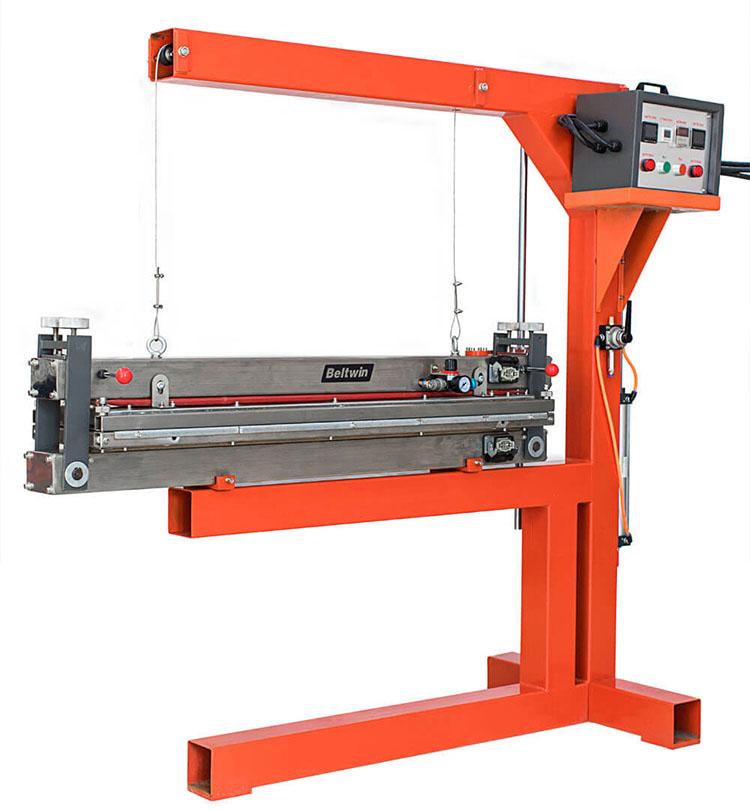

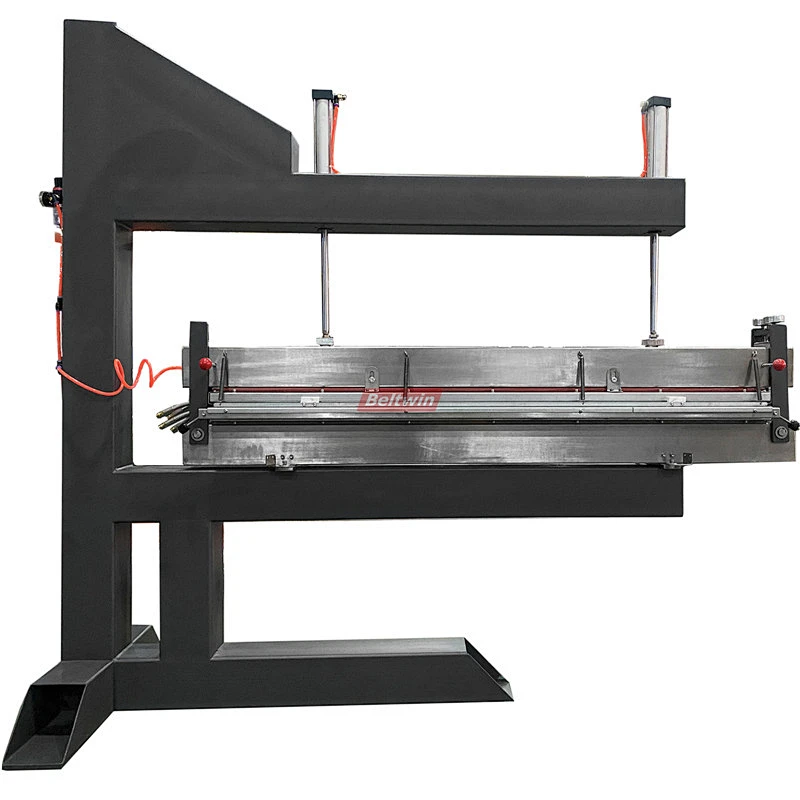

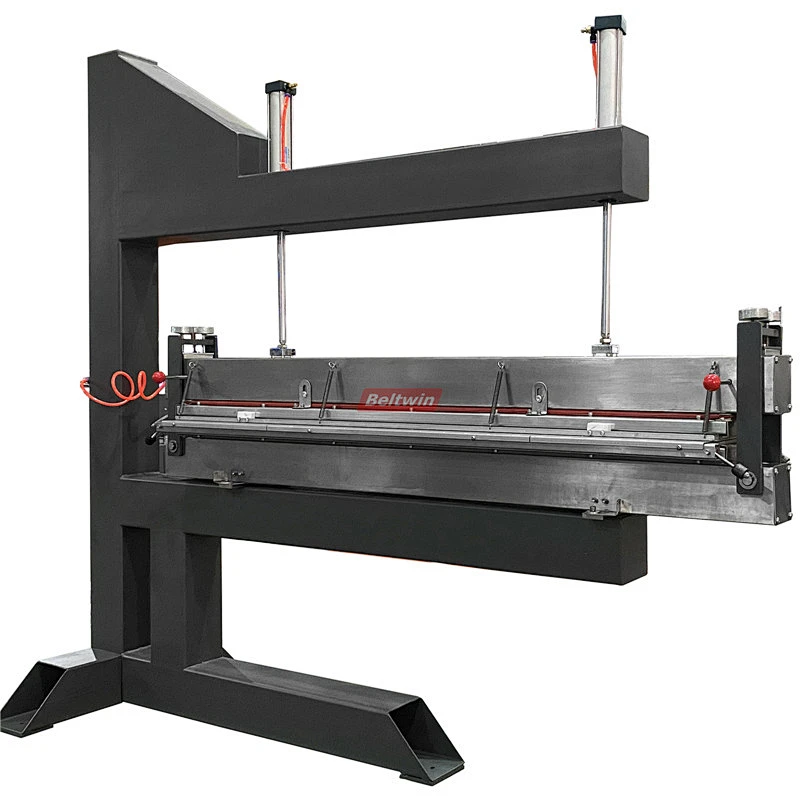

Opening system & steel housing is Optional:

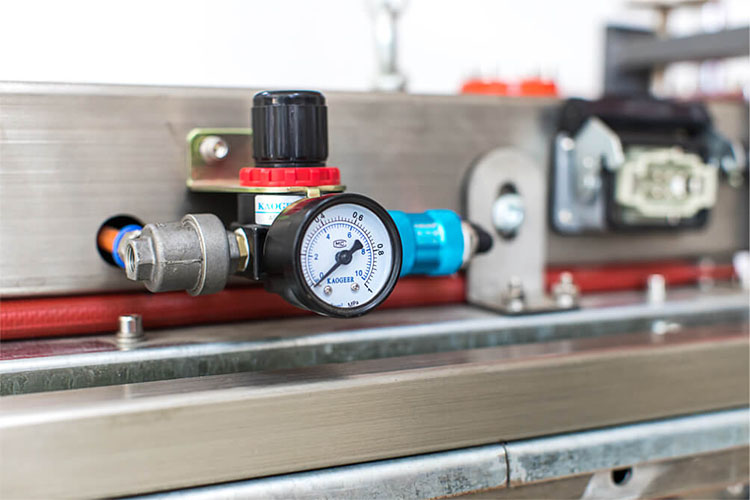

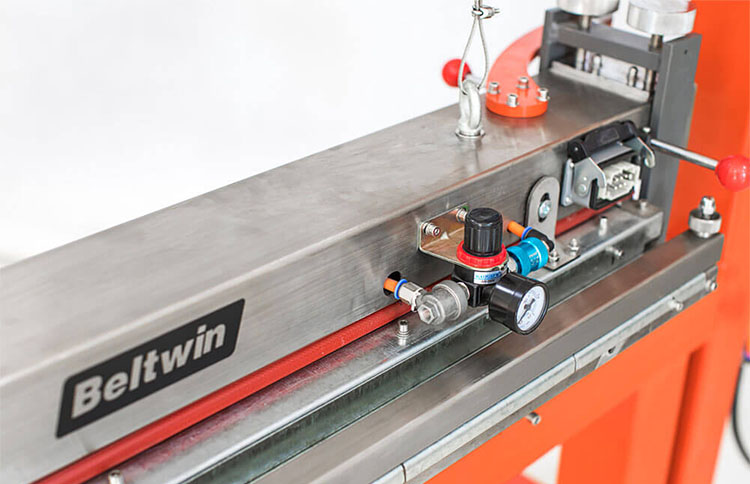

Pressure Gauge, easy to control and release the pressure:

Storage:
